Removing/refitting

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Clutch control cylinder › Removing/refitting

Variants – 3.0 V6 24VRemoving/refitting

REMOVING/REFITTING

• Disconnect the battery
• Working from the engine compartment, remove the air cleaner cover and intake manifold (see Group 10).
• Drain the clutch-brake fluid reservoir using a suitable syringe.

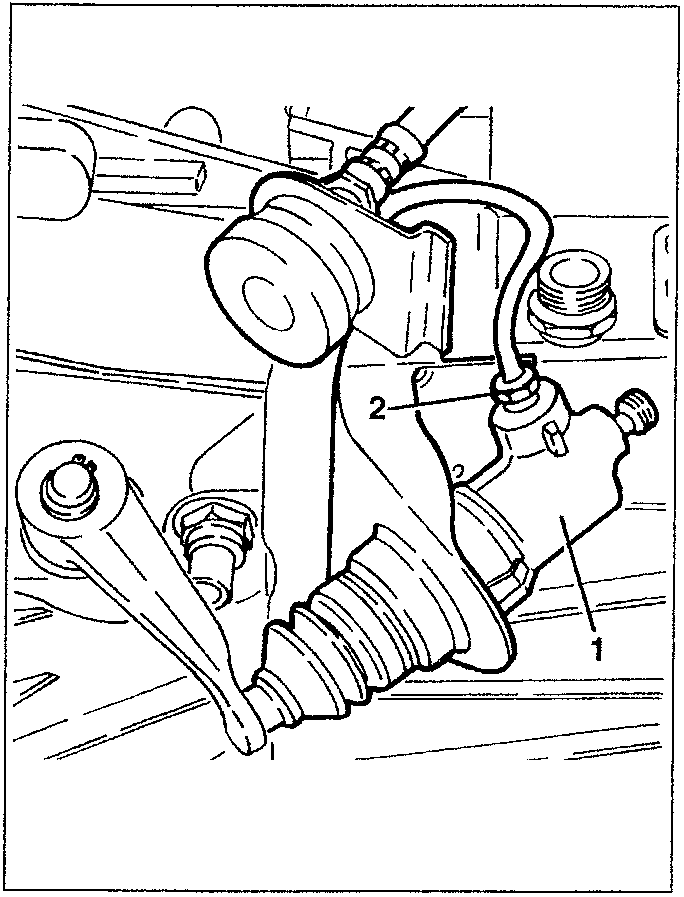

1. Slacken the screws fastening the cylinder support bracket to the gearbox.
2. Slacken the hydraulic union of the stiff pipe from the control cylinder.

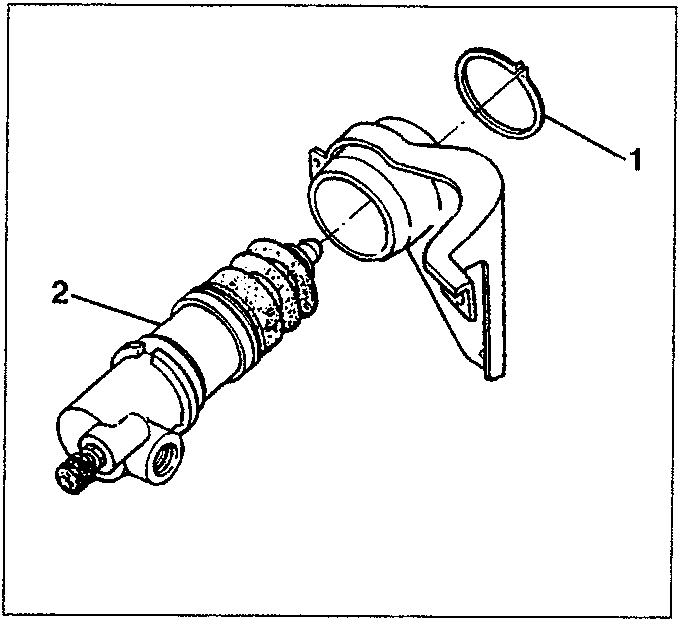

1. Remove the retainer ring.
2. Withdraw the clutch cylinder.
