Variants – 3.0 V6 24VRemoving/refitting · page 1 of 11

REMOVING/REFITTING

  • Set the car on a lift.
  • Disconnect the battery.
  • Remove the front wheels.

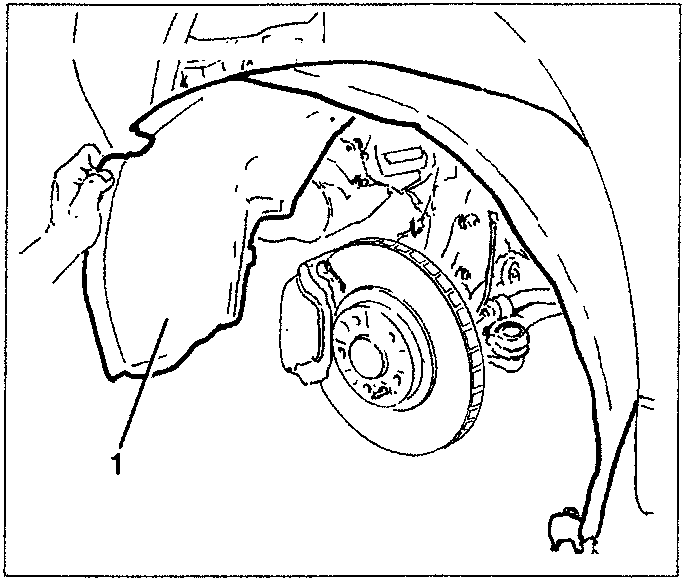

  1. Remove the left front gravel guard.
Diagram showing removal of left front gravel guard, labeled 1.
  • Remove the engine compartment guard on the lefthand side (see GROUP 70).

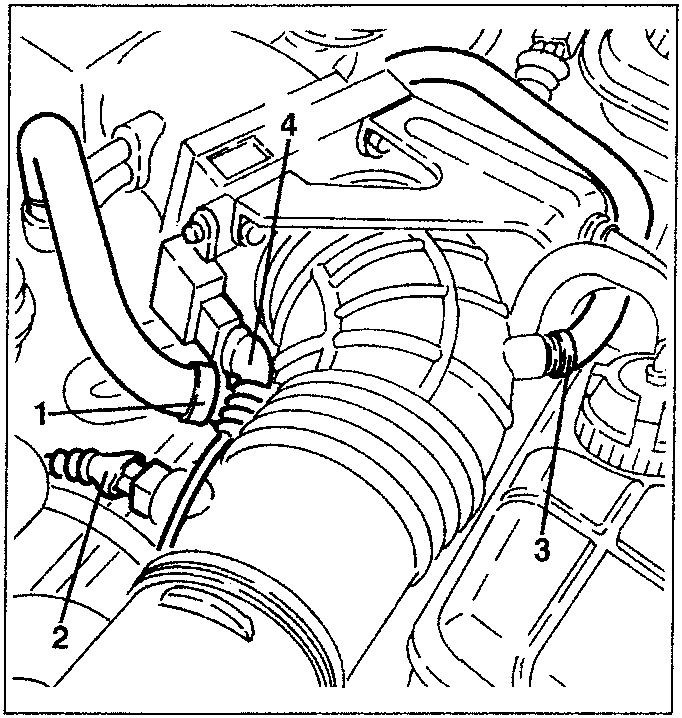

  1. Disconnect the oil vapour recovery pipe leading from the right cylinder head from the corrugated sleeve.
  2. Disconnect the electrical connection from the intake air temperature sensor.
  3. Disconnect the air takeoff pipe for the constant idle device from the corrugated sleeve.
  4. Disconnect the electrical connection from the throttle potentiometer.
Diagram showing disconnection of various pipes and sensors, labeled 1, 2, 3, 4.

GEARBOX UNIT

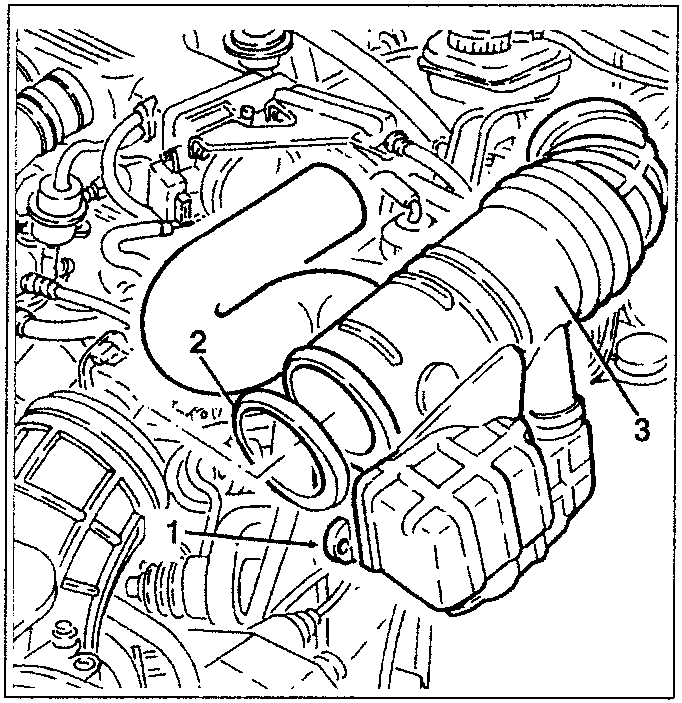

  1. Prise off the button fastening the first section of corrugated sleeve to the resounder.
  2. Slacken the two fastening clamps.
  3. Remove the second section of corrugated sleeve complete with resounders.
Diagram showing engine components, labeled 1, 2, 3.

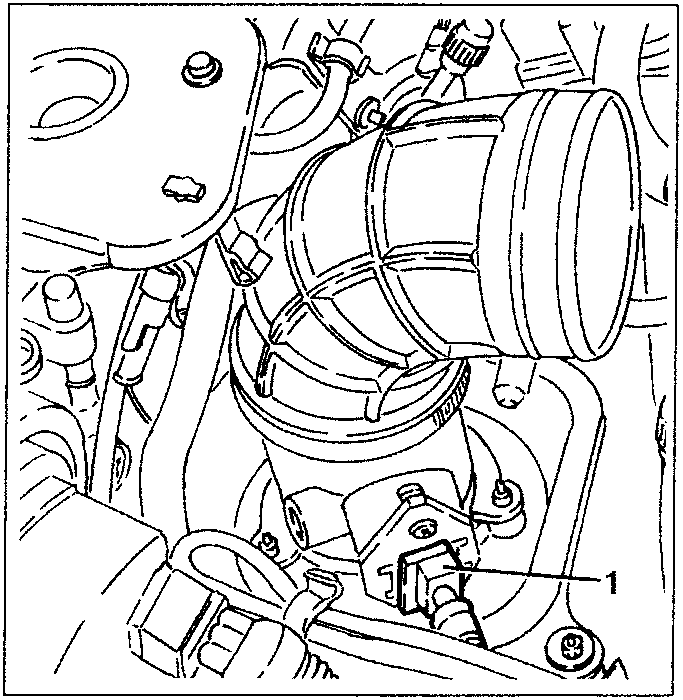

  1. Disconnect the electrical connection from the hot film air flow meter.
Diagram showing hot film air flow meter disconnection, labeled 1.
