Removing/refitting (page 3 of 11)

1. Slacken the nuts fastening the front exhaust pipes to the exhaust manifolds.
2. Slacken the bolts fastening the pipes to the catalytic converter.
3. Slacken the bolt and disconnect the collar.
4. Slacken the nut and remove the collar.
5. Retrieve the front exhaust pipes.
6. Disconnect the EGR valve pipe fitting from the exhaust manifold.

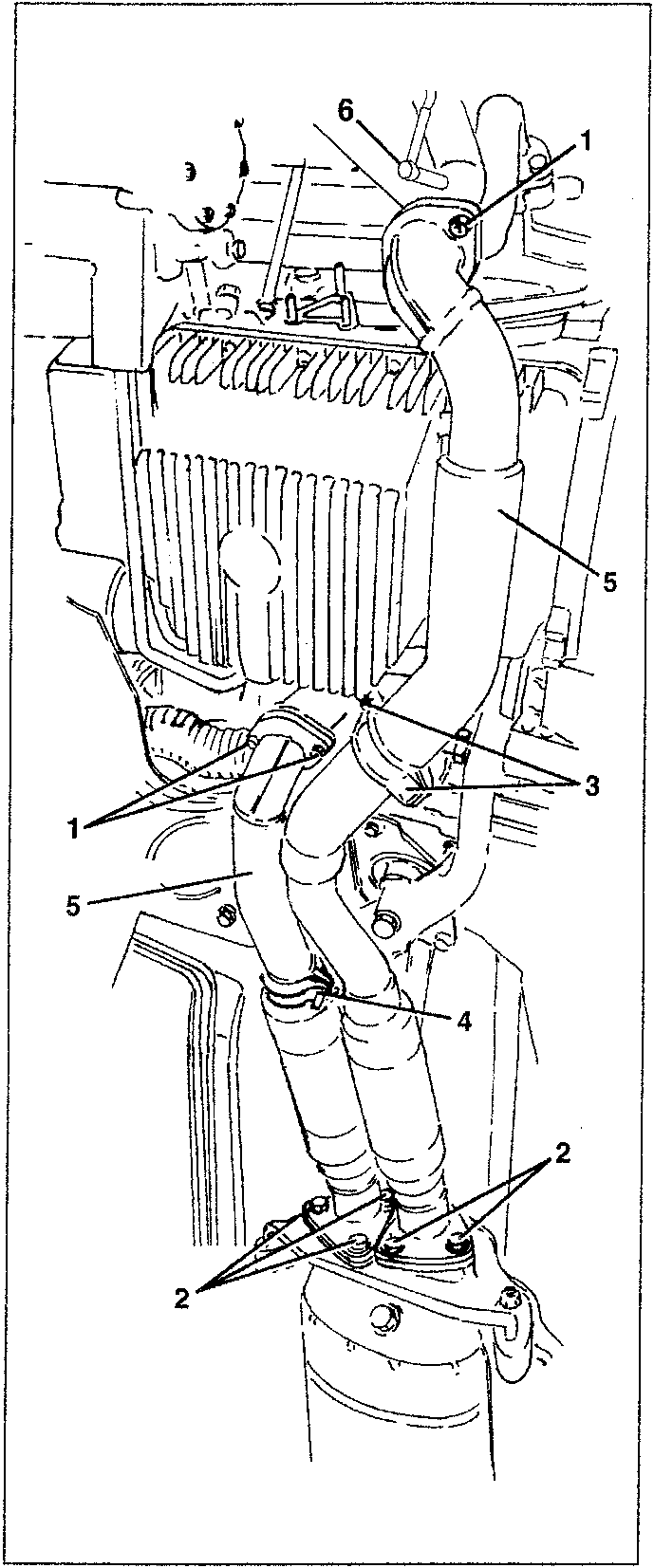

1. Front exhaust pipe
2. EGR valve pipe
3. Catalytic converter
4. Collar
5. Radiator crossmember
6. Exhaust manifold

– Lower the car.

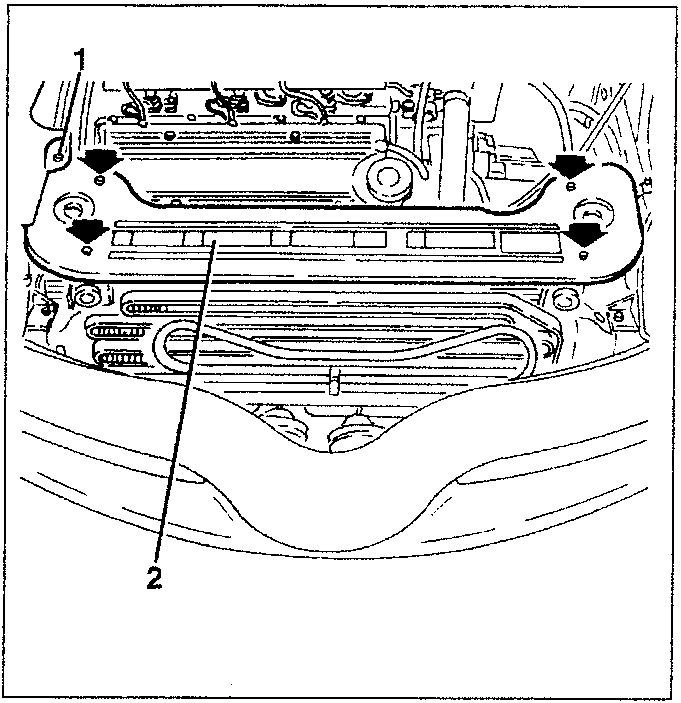

1. Slacken the screw fastening the right engine compartment guard.
2. Slacken the fastening screws and remove the upper radiator crossmember.

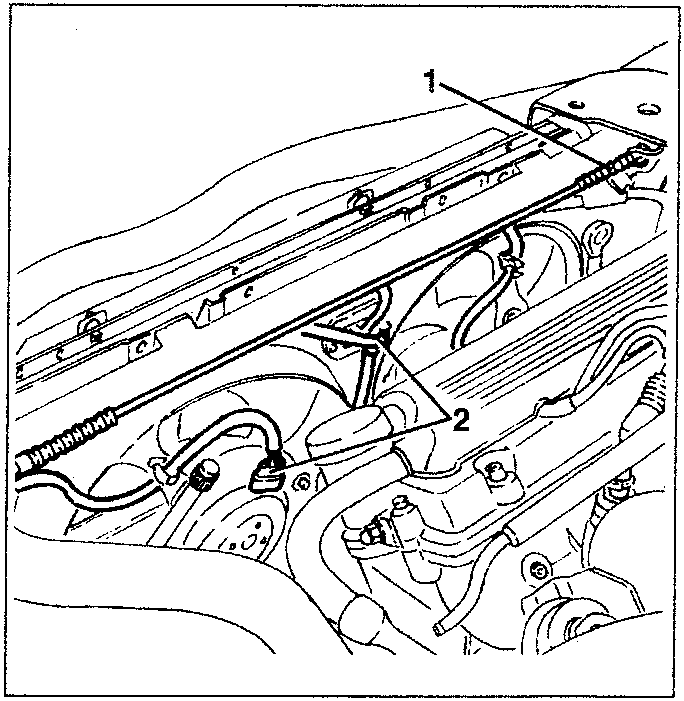

1. Disconnect the bonnet opening cable and move it aside so that it does not hinder the following operations.
2. Disconnect the electrical connections from the fans and additional resistances, then release the cables from the fastening clamps and groove.
