Removing/refitting (page 7 of 11)

– Raise the car.
– Place a suitable container under the engine compartment.

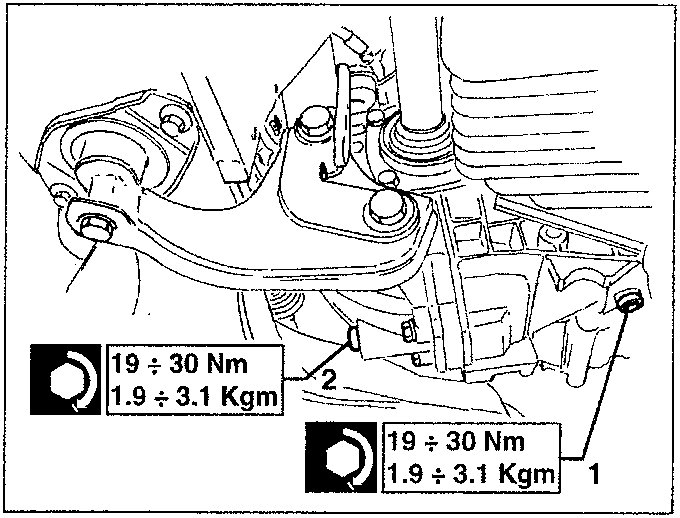

1. Slacken the plug and drain the gearbox oil.
2. Slacken the plug and drain the differential oil.

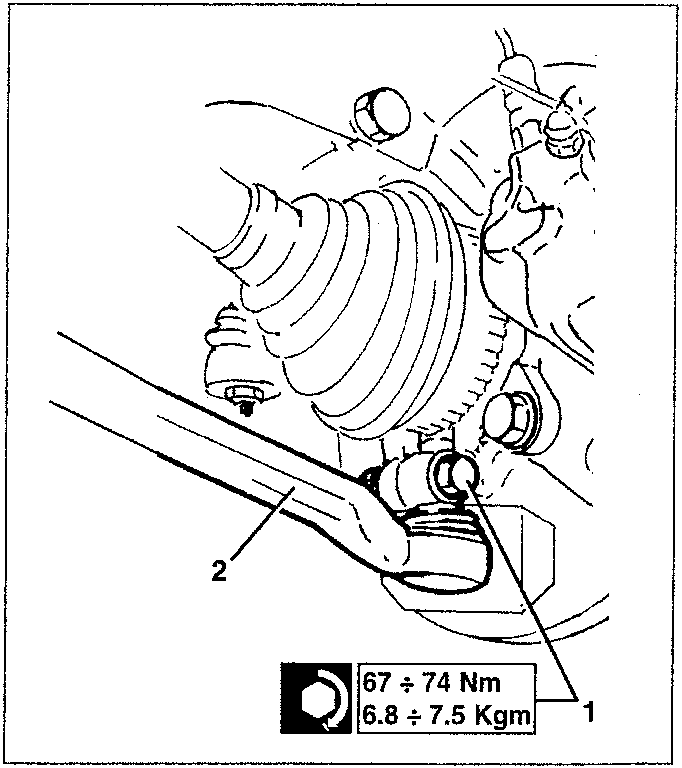

1. Working from both sides of the car, slacken the bolt fastening the wishbone to the wheel hub.
   2. Withdraw the wishbone ball pin.

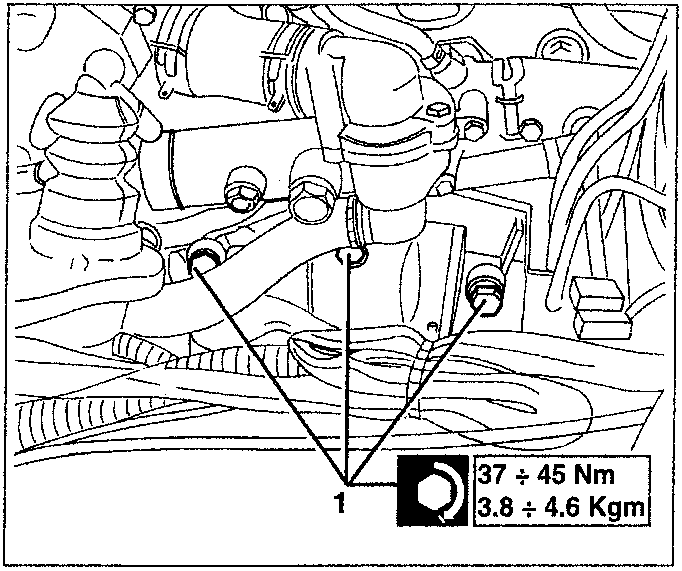

1. Slacken the three upper screws fastening the gearbox cover to the crankcase.
   – Raise the gearbox oil dipstick.

37 ÷ 45 Nm
3.8 ÷ 4.6 kgm

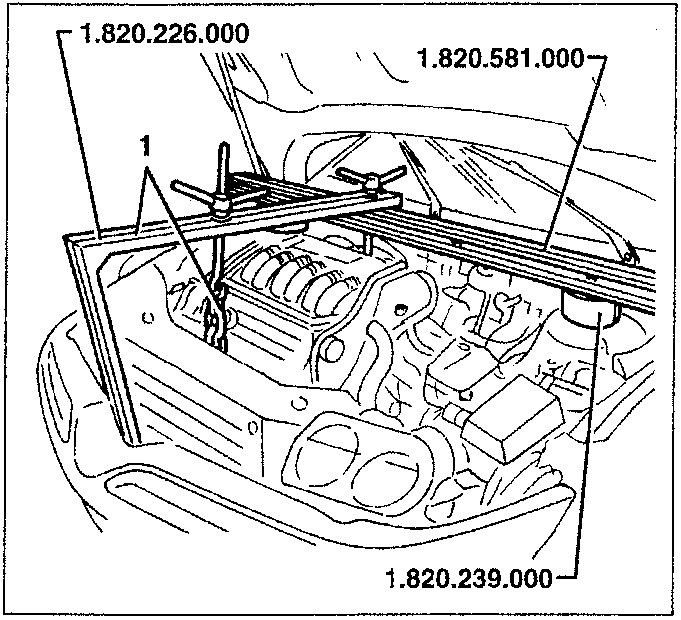

WARNING:
To avoid damaging the power steering piping housed at the front of the radiator, place a suitable thickness between the front connection of the tool and its resting surface.
