Variants – 3.0 V6 24VRemoving/refitting · page 4 of 11

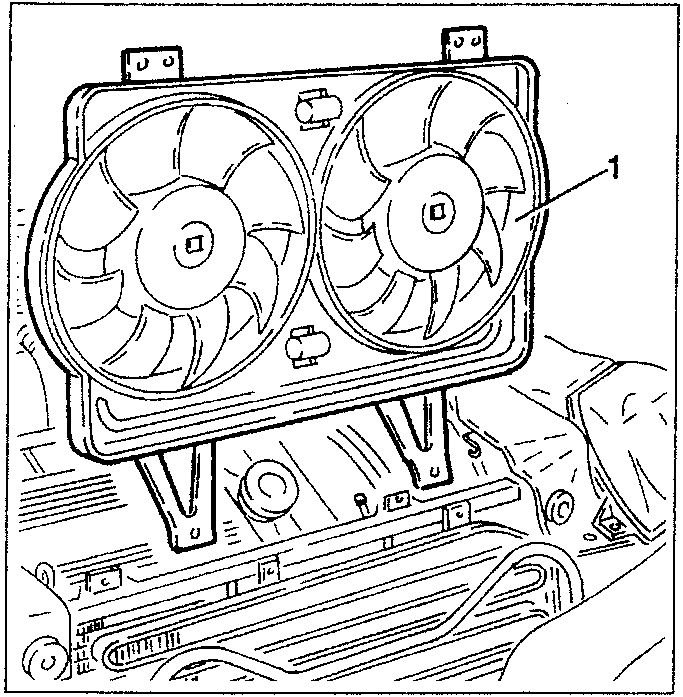

  1. Slacken the fastening screws and remove the cooling fans withdrawing them upwards.
Two cooling fans mounted on a bracket, with arrows indicating upward removal

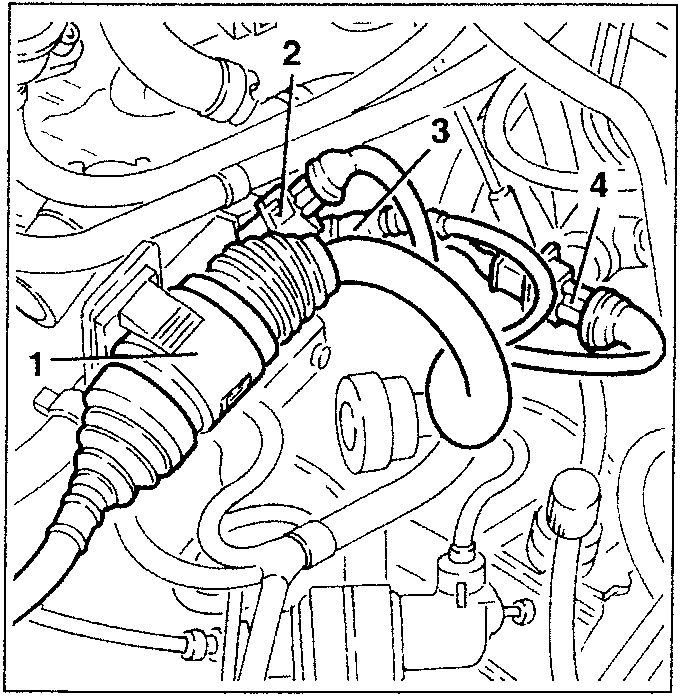

  1. Release the injection wiring connector.
  2. Disconnect the electrical connection of the rear pinging sensor.
  3. Disconnect the electrical connection of the rpm and timing sensor.
  4. Disconnect the electrical connection of the cam angle sensor.
Engine bay with various sensors and connectors, labeled 1, 2, 3, 4

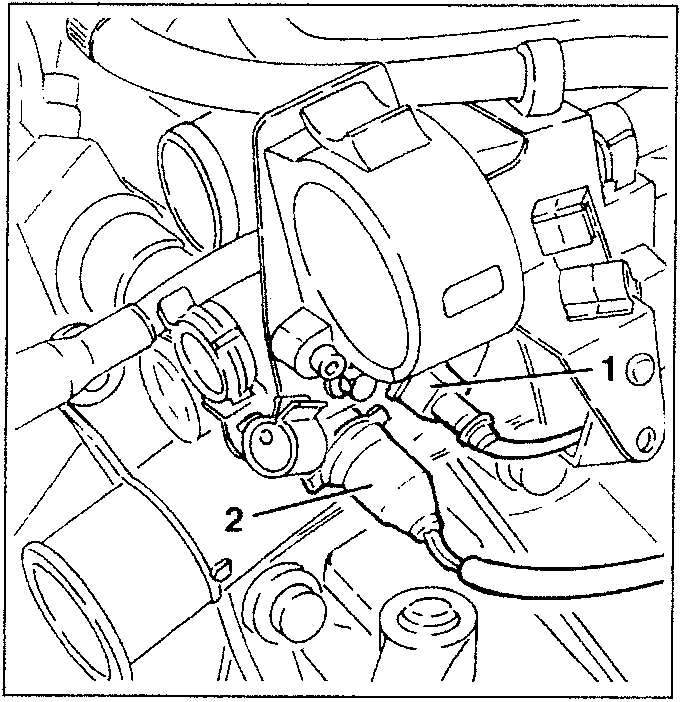

  1. Disconnect the electrical connection from the engine coolant temperature sensor (NTC).
  2. Disconnect the electrical connection from the coolant temperature transmitter and maximum temperature thermal contact.
Engine components with sensors and connectors, labeled 1 and 2

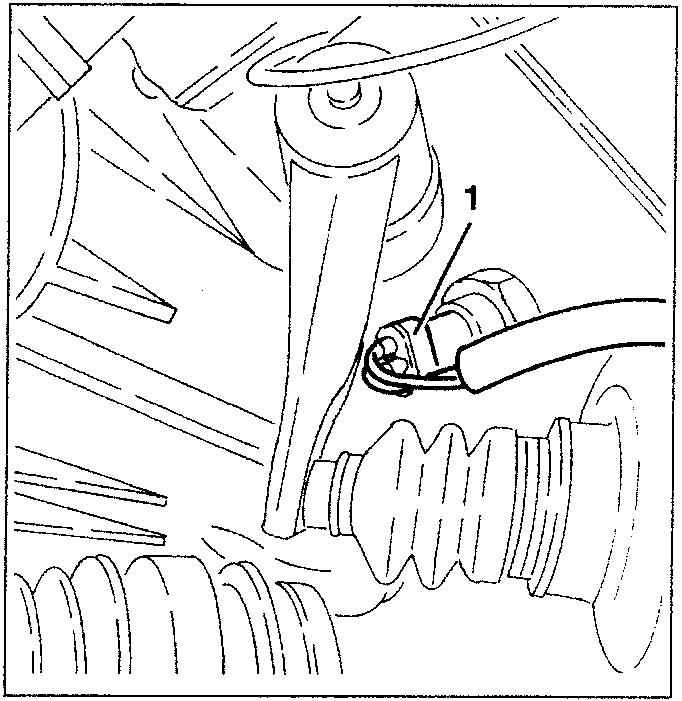

  1. Disconnect the electrical connection from the reverse gear sensor.
Reverse gear sensor connector being disconnected
