Removing/refitting (page 11 of 11)

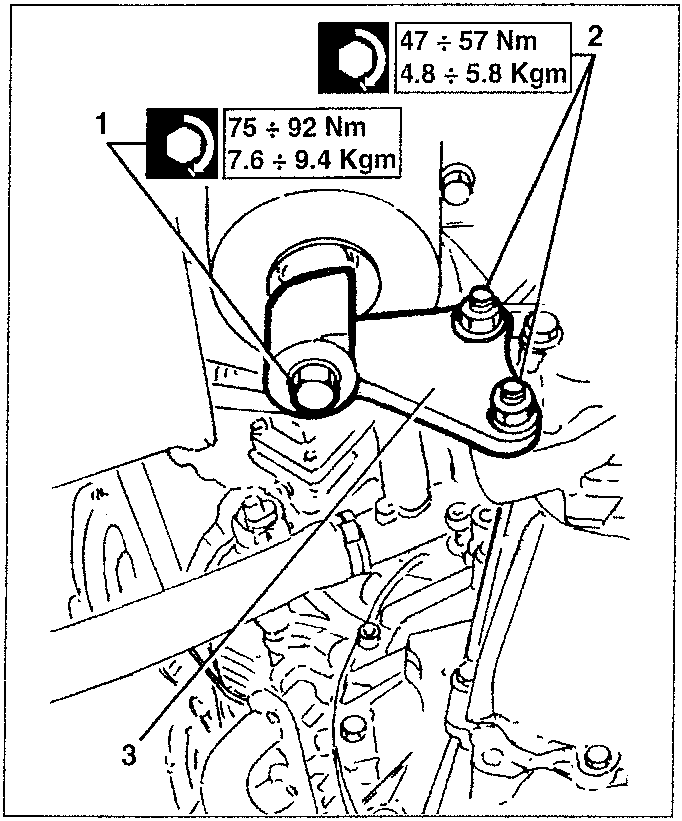

47 ÷ 57 Nm
4.8 ÷ 5.8 Kgm

75 ÷ 92 Nm
7.6 ÷ 9.4 Kgm

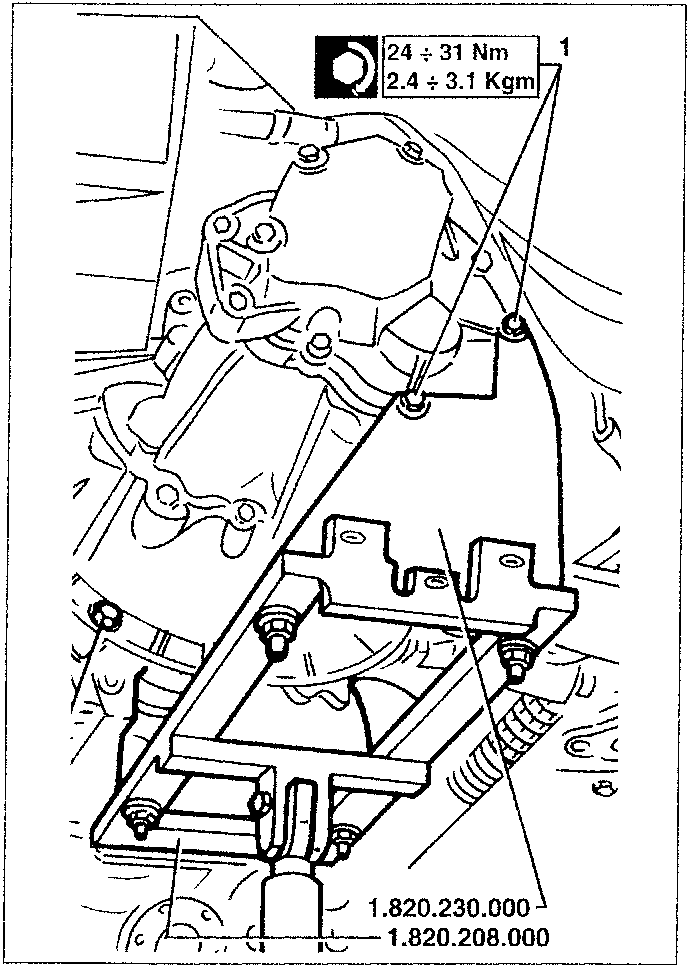

1. Slacken two of the gearbox cover fastening screws and fasten brackets no. 1.820.230.000 and no. 1.820.208.000.
2. Use a hydraulic lift to support the gearbox unit.

24 ÷ 31 Nm
2.4 ÷ 3.1 Kgm

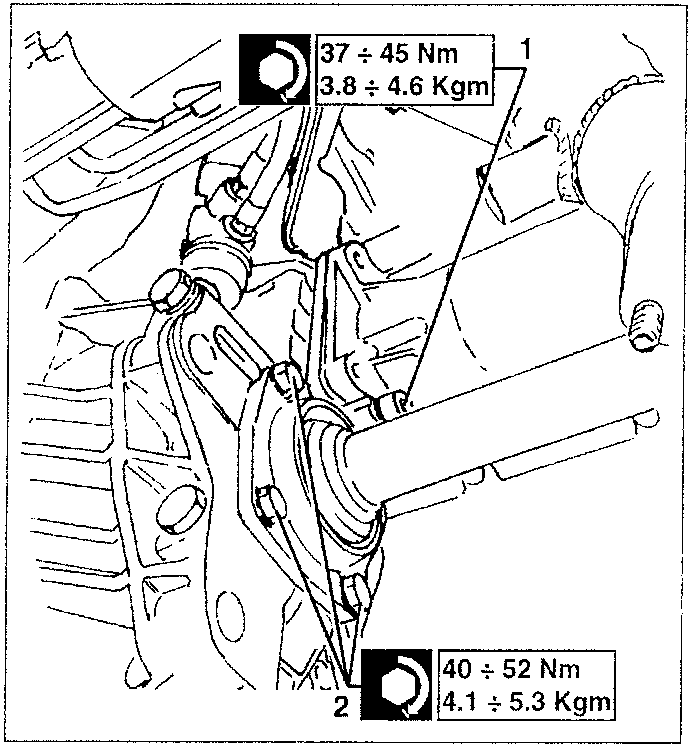

1. Slacken the rear Allen screw fastening the engine-gearbox.
2. Slacken the four screws fastening the layshaft support to the differential.

37 ÷ 45 Nm
3.8 ÷ 4.6 kgm

40 ÷ 52 Nm
4.1 ÷ 5.3 Kgm

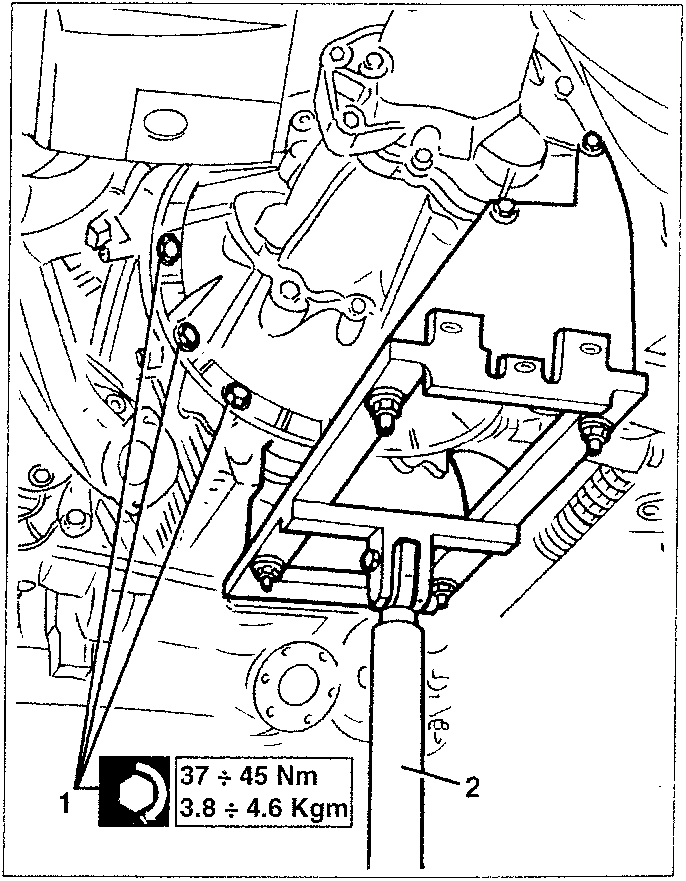

1. Slacken the three remaining screws fastening the gearbox to the engine.
2. Move away the gearbox from the engine and lower it using the hydraulic jack.

37 ÷ 45 Nm
3.8 ÷ 4.6 Kgm
