Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Removing/refitting (page 10 of 11)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Gearbox unit
Variants – 3.0 V6 24VRemoving/refitting · page 10 of 11
  1. Slacken the two nuts fastening the upper gearbox control cable cover.
  2. Slacken the two screws fastening the lower gearbox control cable cover.
  3. Retrieve the two covers.

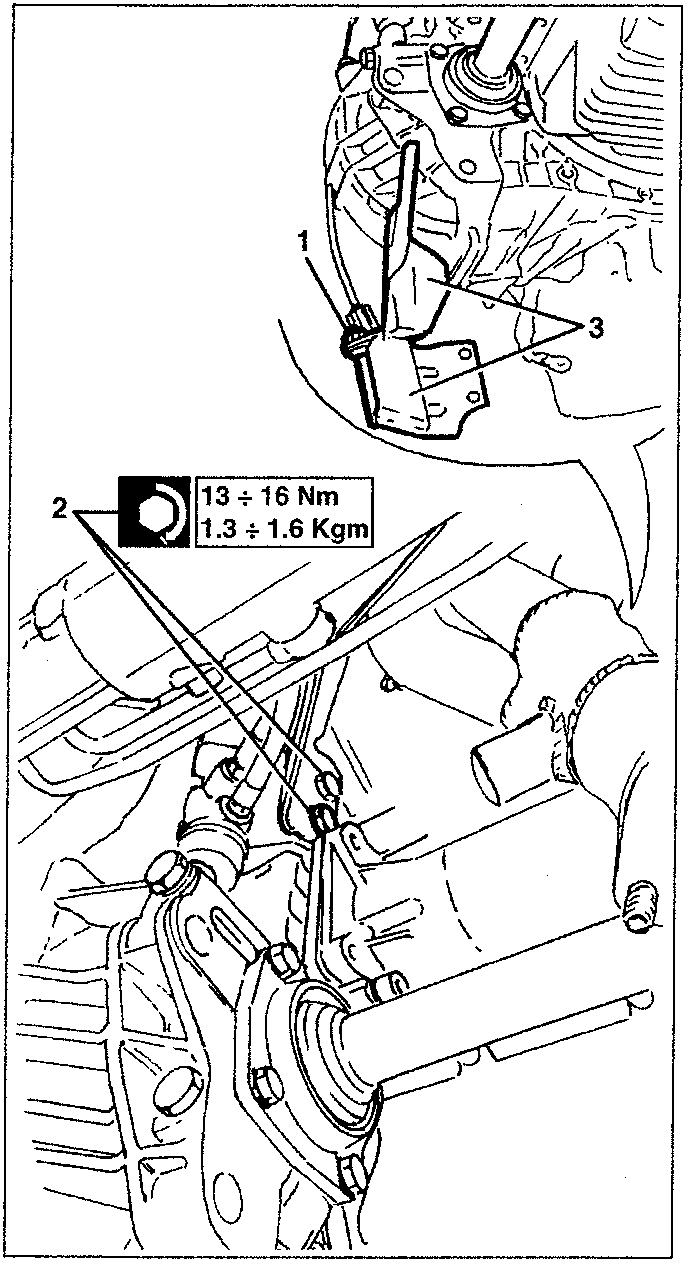

Diagram showing nuts and screws for upper and lower gearbox control cable covers with torque specifications 13÷16 Nm / 1.3÷1.6 Kgm
  1. Slacken the two nuts fastening the rear starter motor.
  2. Slacken the nut fastening the square.
  3. Slacken the starter motor fastening screws.
  4. Retrieve the starter motor complete with square.

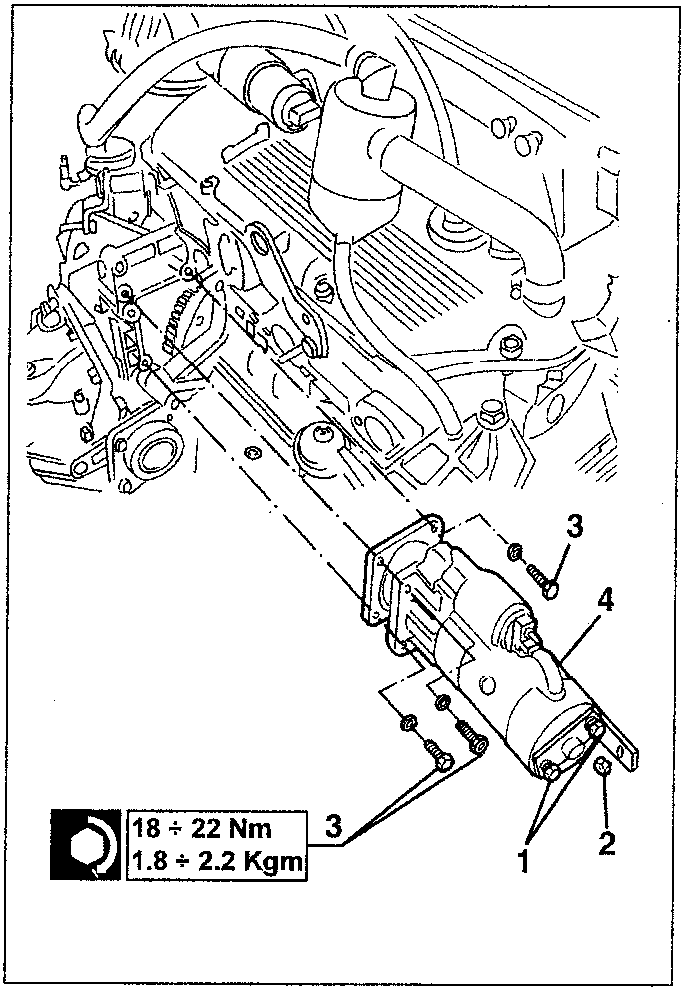

Diagram showing gearbox control cables and support bracket with torque specifications 18÷22 Nm / 1.8÷2.2 Kgm

– Work from above.

  1. Remove the retainer clips and withdraw the gear control cables from the pin.
  2. Slacken the upper screw of the gearbox control cable support bracket.

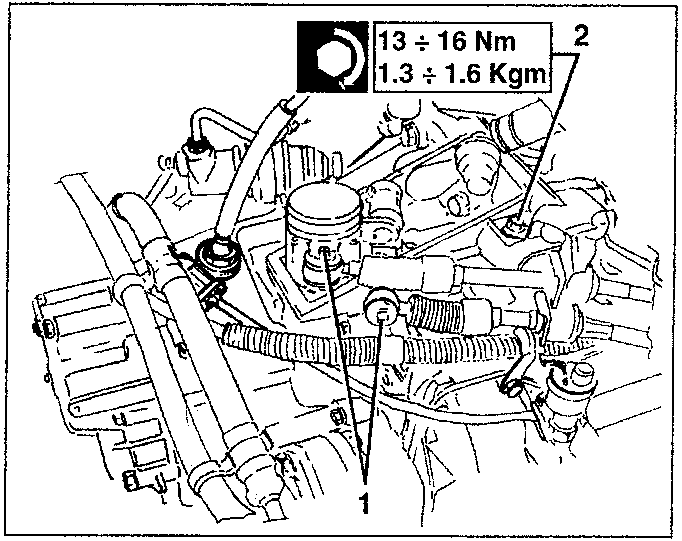

Diagram showing screw and square for rear starter motor with torque specifications 13÷16 Nm / 1.3÷1.6 Kgm
  1. Slacken the screw fastening the gearbox rear support.
  2. Slacken the nuts fastening the support to the gearbox.
  3. Remove the support.
