Removing/refitting (page 6 of 11)
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Gearbox unit
Variants – 3.0 V6 24VRemoving/refitting · page 6 of 11

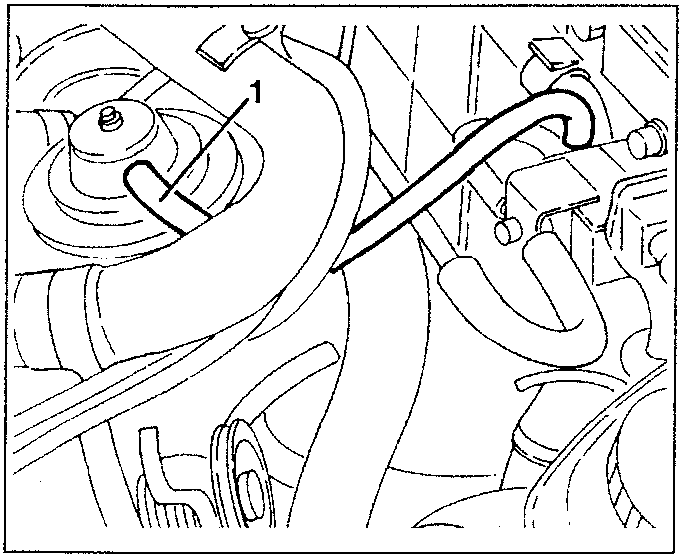

- Disconnect the modulated vacuum pipe leading from the solenoid valve from the E.G.R. valve.

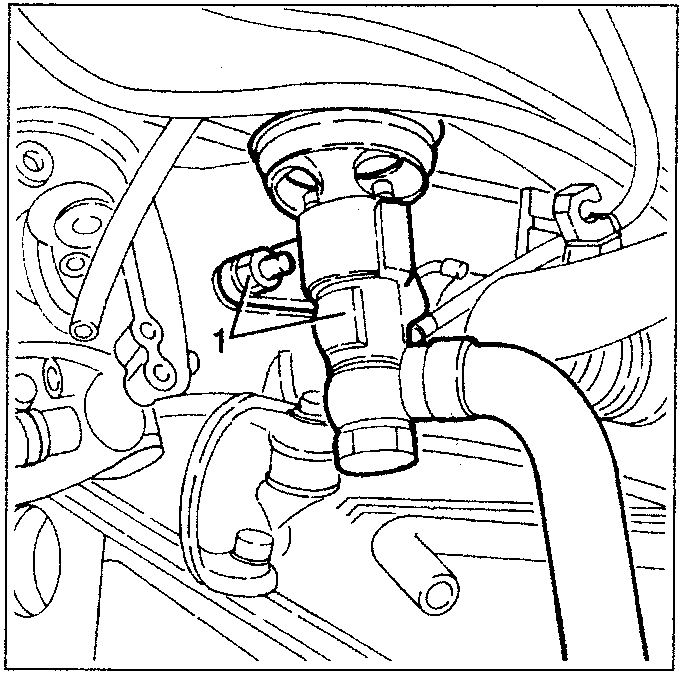

- Slacken the two fastening nuts and remove the E.G.R. valve complete with exhaust gas takeoff pipe from the intake box.
– Retrieve the seal.

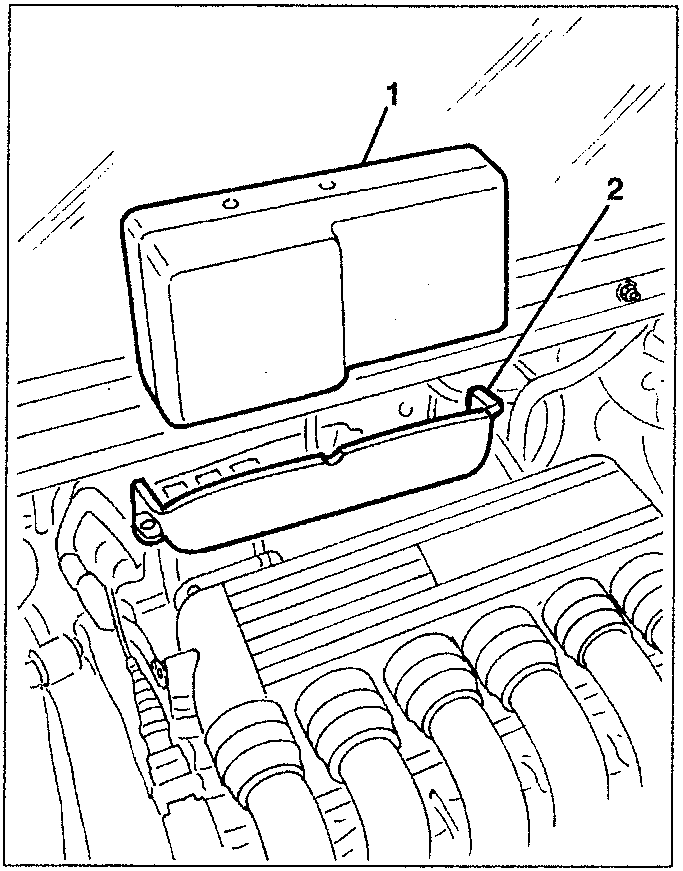

- Slacken the screws and remove the relay unit cover.
- Retrieve the cover.

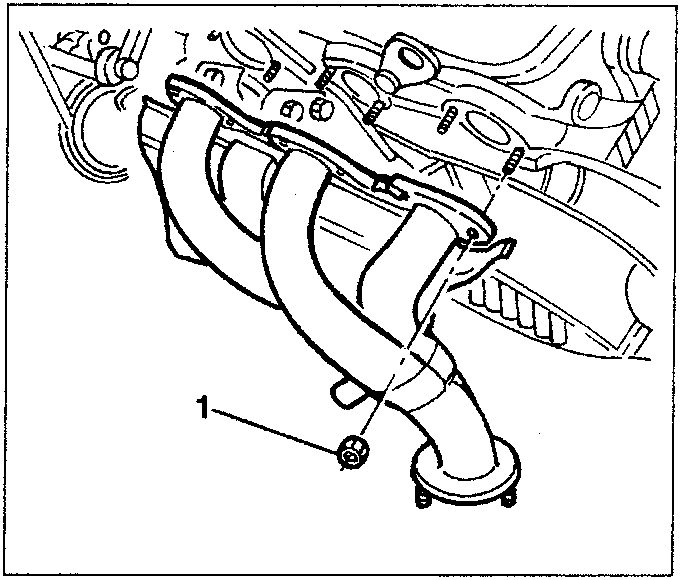

- Slacken the six nuts fastening the rear exhaust manifold, complete with heat shield, to the cylinder head.
- Using tools 1.820.239.000, 1.850.581.000 and 1.820.226.000 support the engine appropriately with a chain.
