Removing/refitting (page 9 of 11)

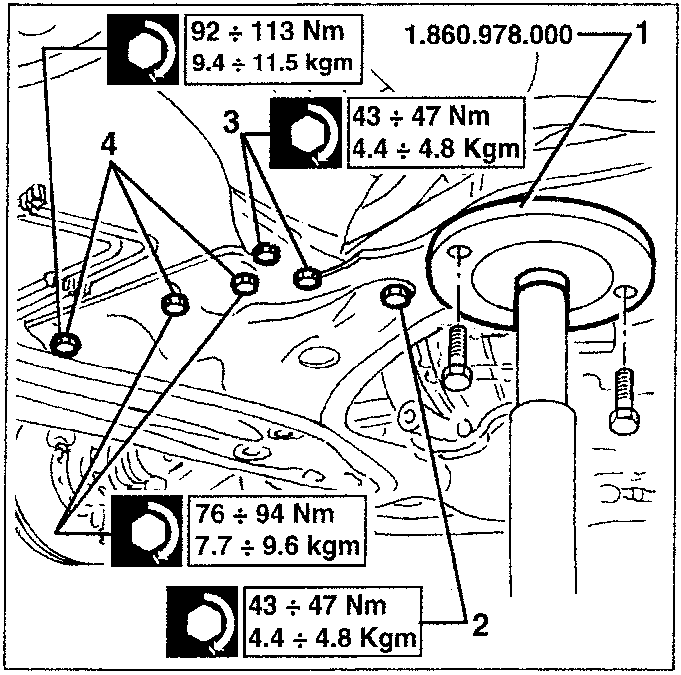

1. Slacken the four screws fastening the crossmember to the body.

92 ÷ 113 Nm
9.4 ÷ 11.5 kgm

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

76 ÷ 94 Nm
7.7 ÷ 9.6 kgm

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

1. Slacken the upper crossmember fastening screw on each side.

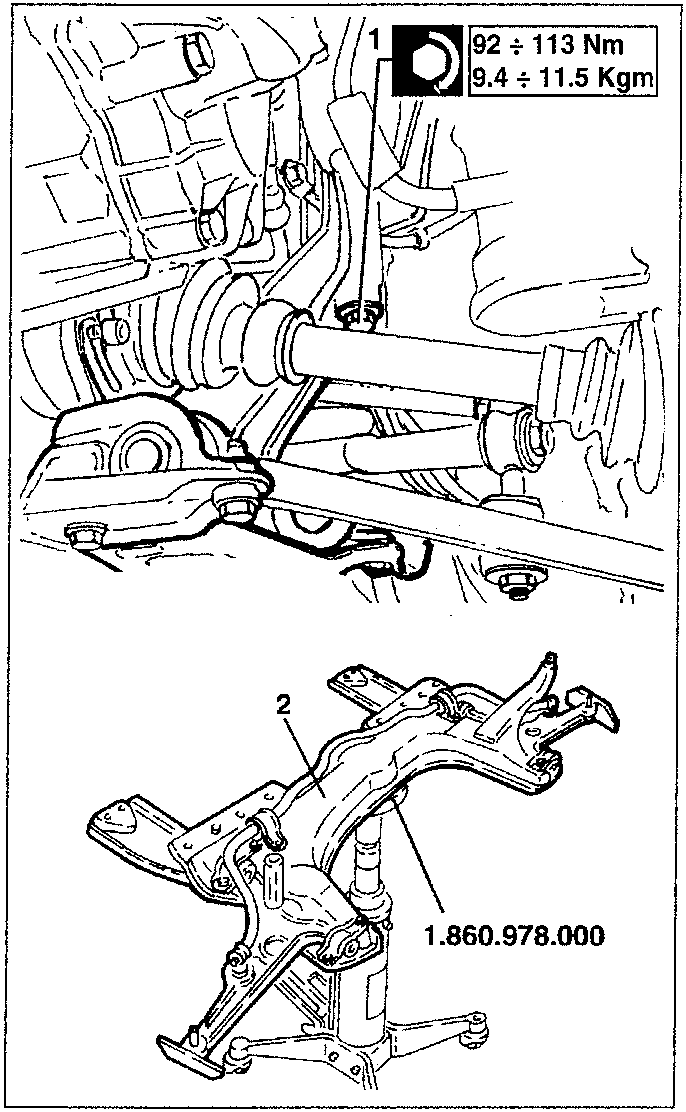

2. Slowly lower the hydraulic jack and remove the crossmember complete with wishbones and stabiliser bar.

92 ÷ 113 Nm
9.4 ÷ 11.5 Kgm

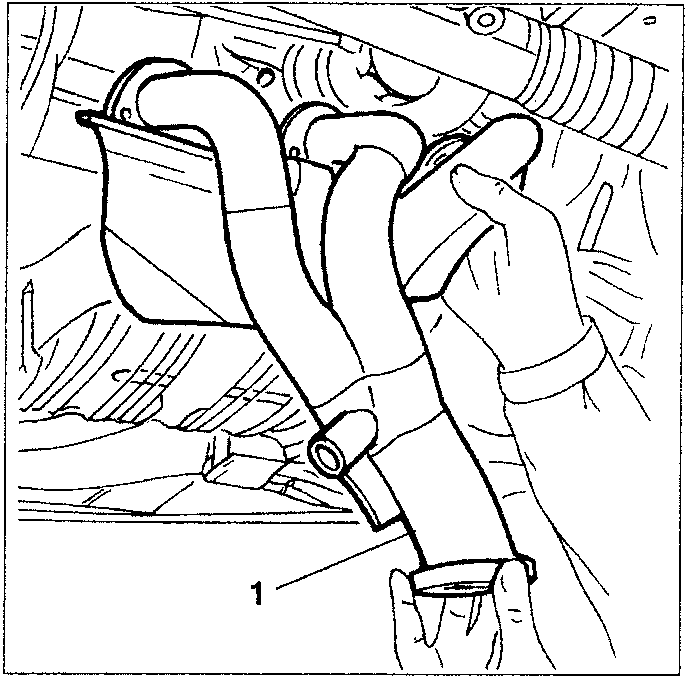

1. Retrieve the exhaust manifold complete with heat shield.

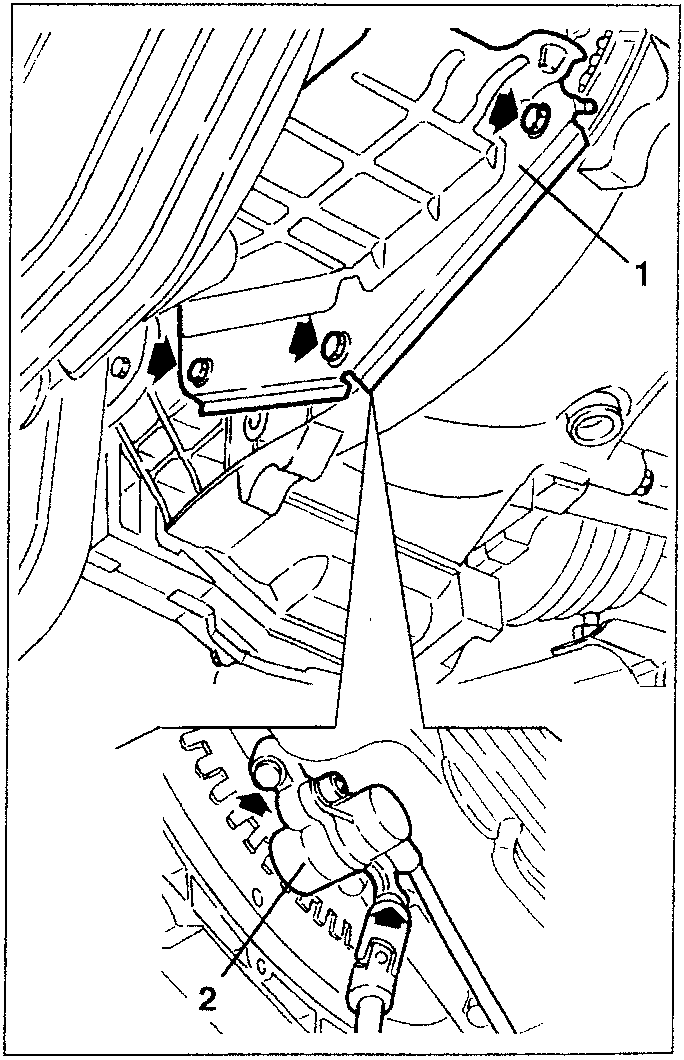

1. Slacken the fastening screws and remove the fly-wheel cover.
2. Slacken the fastening screws and remove the rpm and timing sensor.
