Removing/refitting (page 5 of 11)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Gearbox unit

Variants – 3.0 V6 24VRemoving/refitting · page 5 of 11

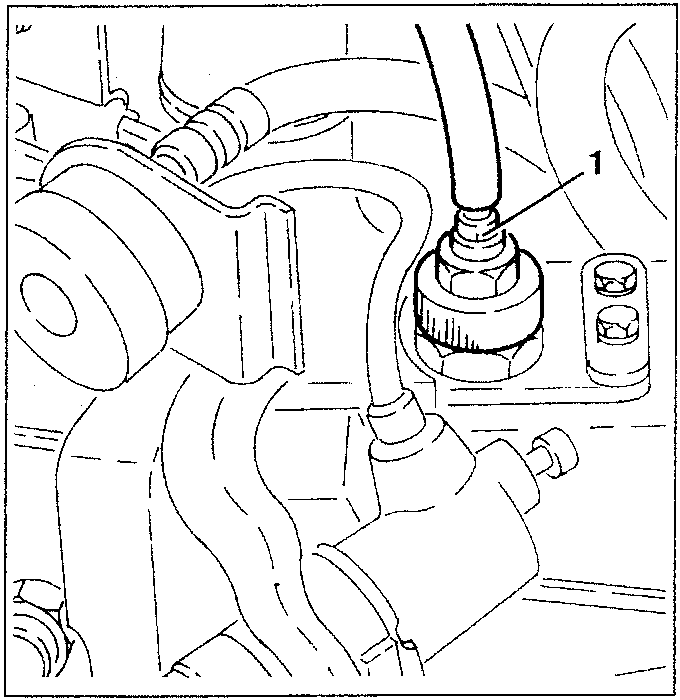

1. Disconnect the cable for synchronised reverse gear engagement.

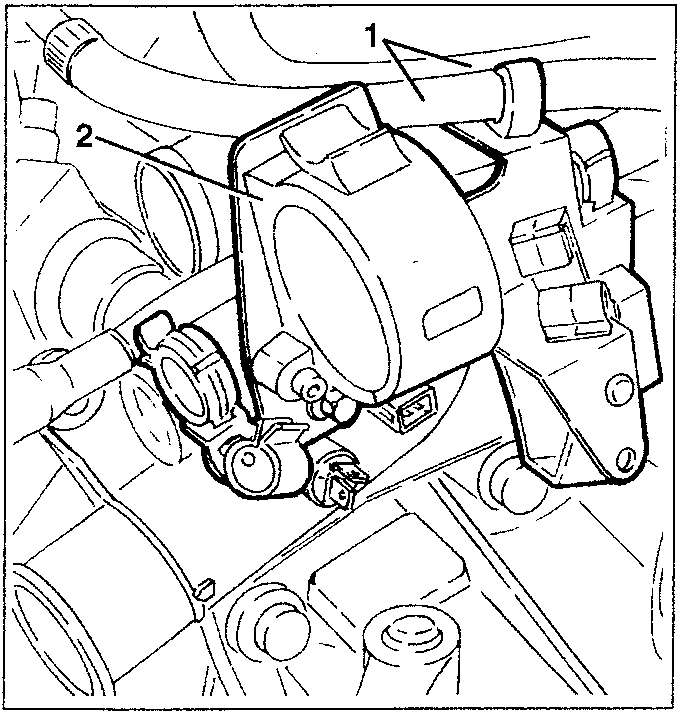

1. Release the fuel pipes.
   2. Slacken the fastenings and remove the injection wiring support bracket and pipe fasteners.

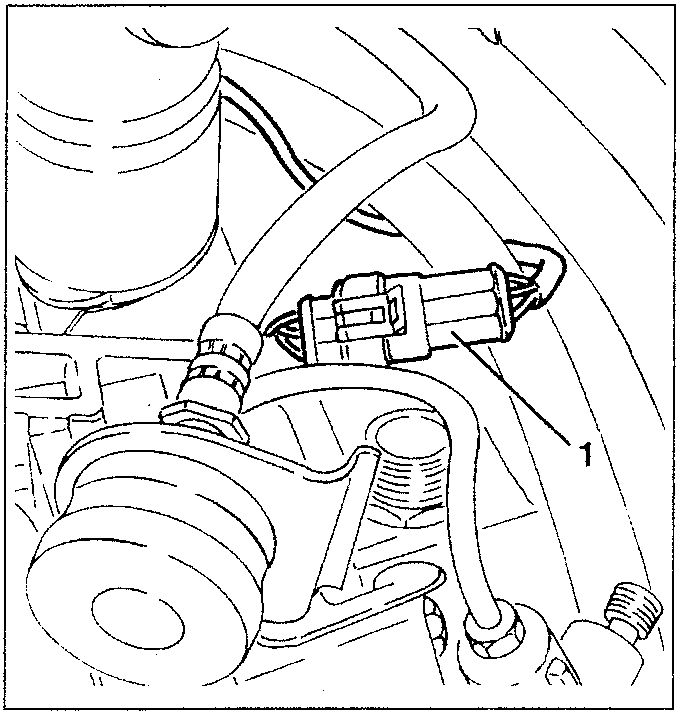

1. Disconnect the electrical connection of the tachometric sensor.

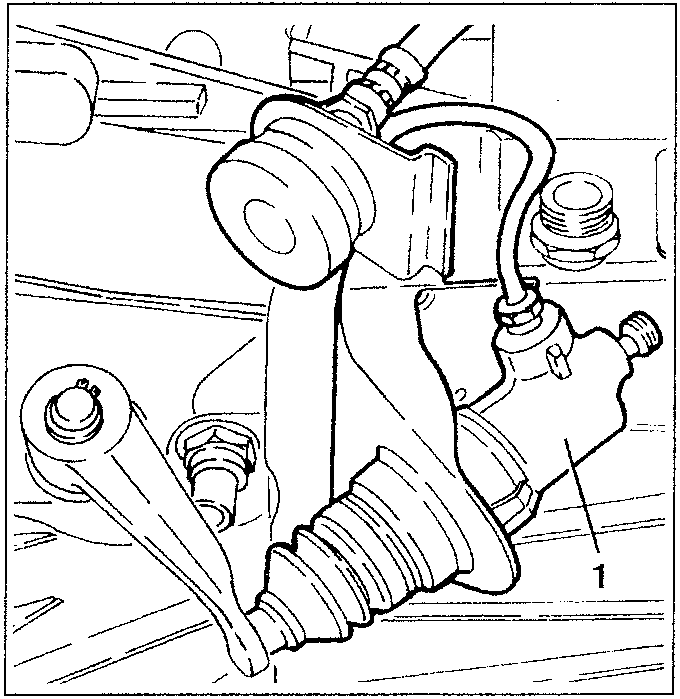

1. Slacken the fastening screws of the clutch control cylinder support bracket, then move the pipe aside without disconnecting the pipes.
