Variants – 3.0 V6 24VRemoving/refitting · page 2 of 11

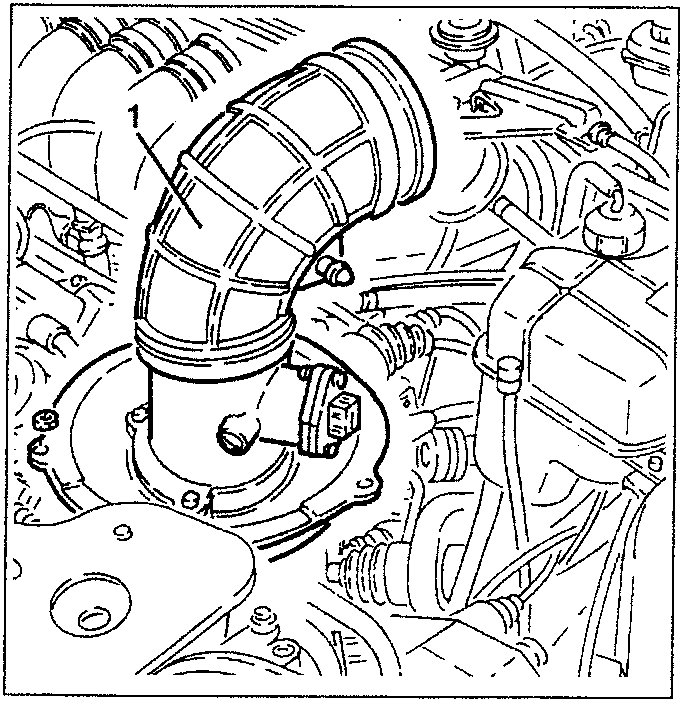

- Slacken the three fastening nuts and remove the air cleaner cover complete with hot film air flow meter and the first section of corrugated sleeve.

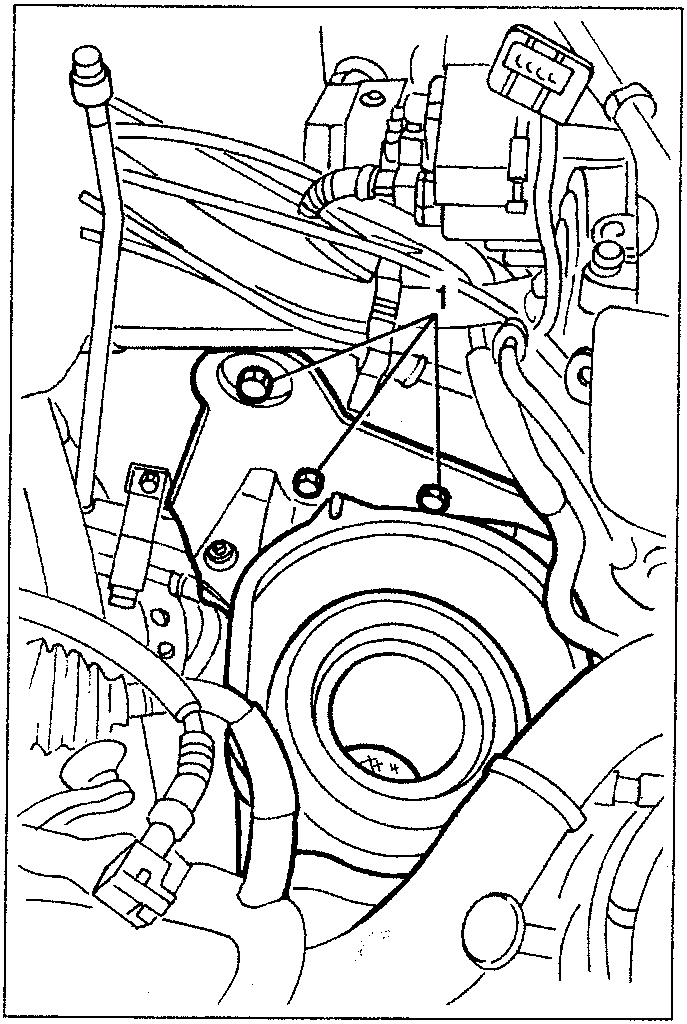

- Slacken the three fastening screws and release the air cleaner container support bracket.
– Raise the car.

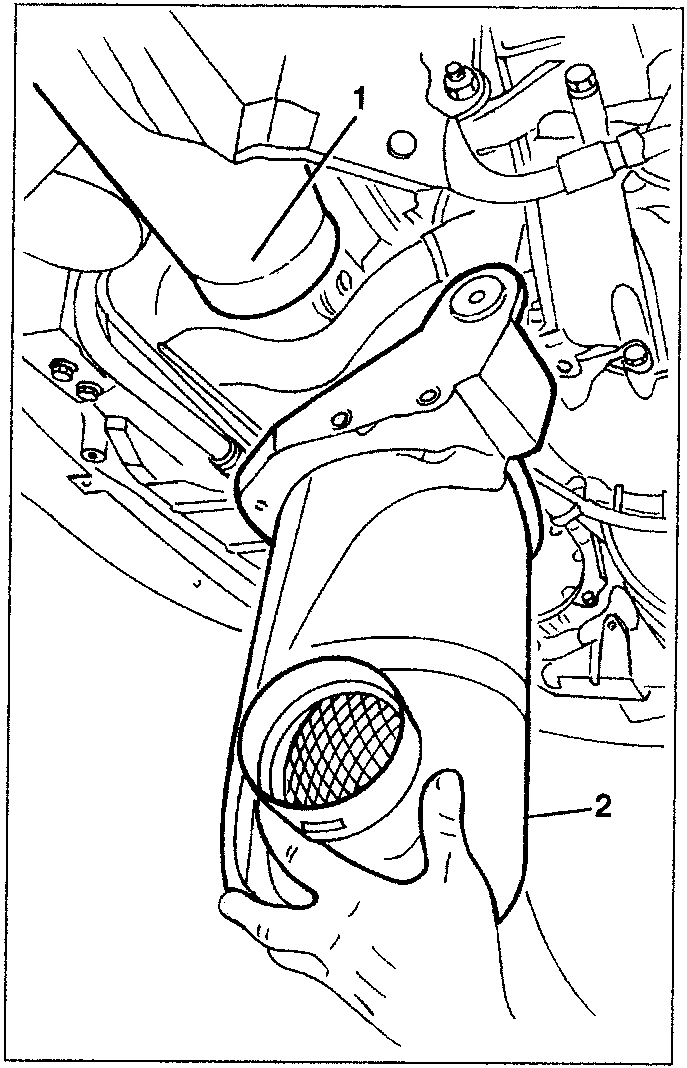

- Release the air takeoff pipe from the cleaner container.
- Retrieve the container complete with bracket from below.
