Gearbox assembly › Removal/refitting
Variants – 3.0 V6 24VRemoval/refitting · page 1 of 11

REMOVAL/REFITTING

  • Position the vehicle on a shop jack.
  • Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
  • Remove the front wheels.

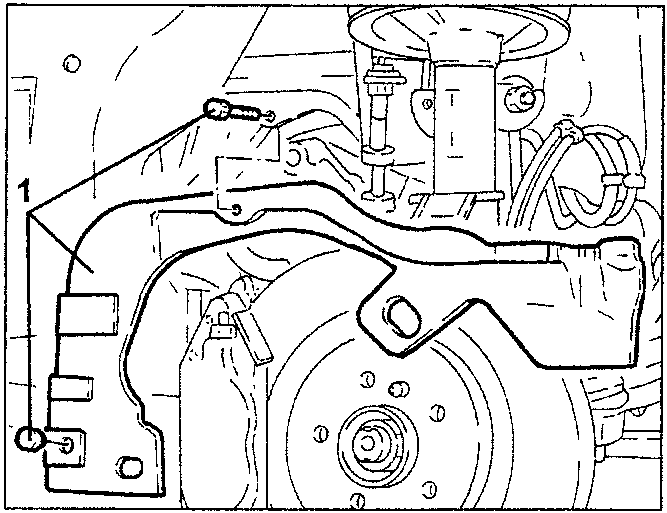

  1. Remove the button, loosen the screws and remove the front left-hand wheel compartment dust guard.
Diagram showing removal of front left-hand wheel compartment dust guard with screws and button

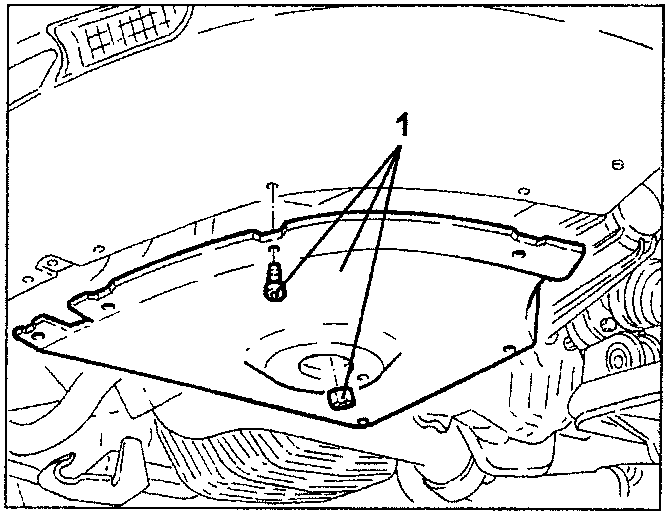

  1. Loosen the screws and the nut and remove the lower air cleaner guard.
Diagram showing removal of lower air cleaner guard with screws and nut

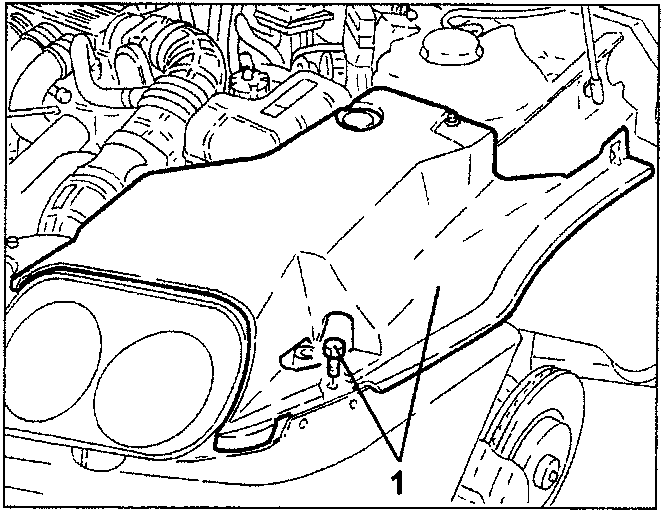

  1. Loosen the screws and remove the left-hand side engine compartment guard.
Diagram showing removal of left-hand side engine compartment guard with screws

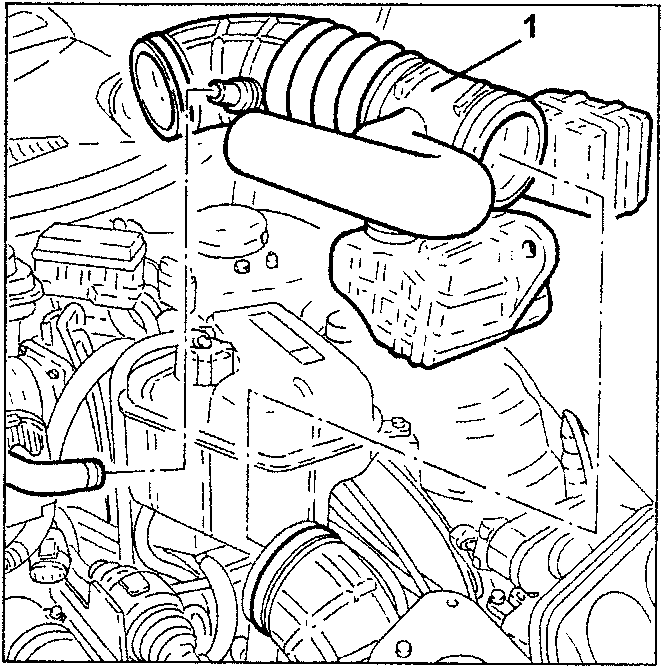

  1. Loosen the clips and remove the corrugated sleeve and resonators after releasing the intermediate resonator from the fastening pin.
Diagram showing removal of corrugated sleeve and resonators with clips and fastening pin
