Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Removal/refitting (page 7 of 11)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Gearbox assembly
Variants – 3.0 V6 24VRemoval/refitting · page 7 of 11

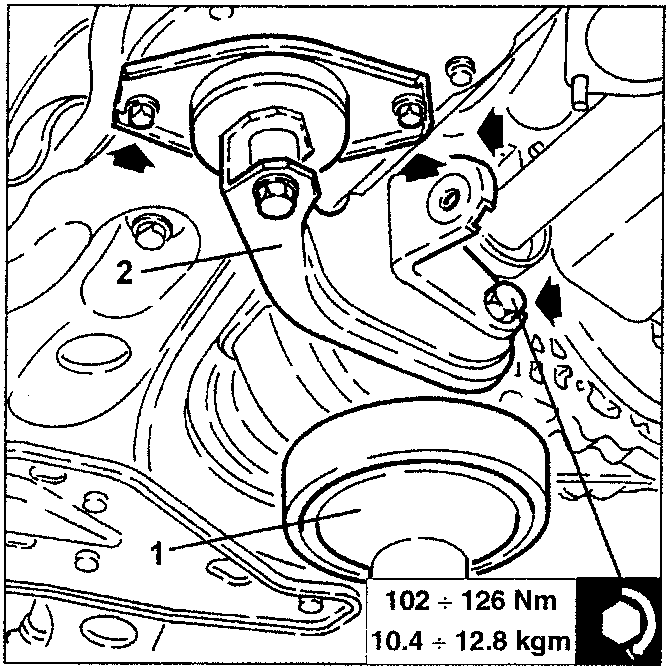

  1. Position a hydraulic jack under the differential.
  2. Loosen the fastening screws and remove the complete engine rear mount.
  • Remove the hydraulic jack from under the differential.
Diagram showing differential with hydraulic jack and bolts labeled 1 and 2, with torque specification box: 102 ÷ 126 Nm, 10.4 ÷ 12.8 kgm

102 ÷ 126 Nm
10.4 ÷ 12.8 kgm

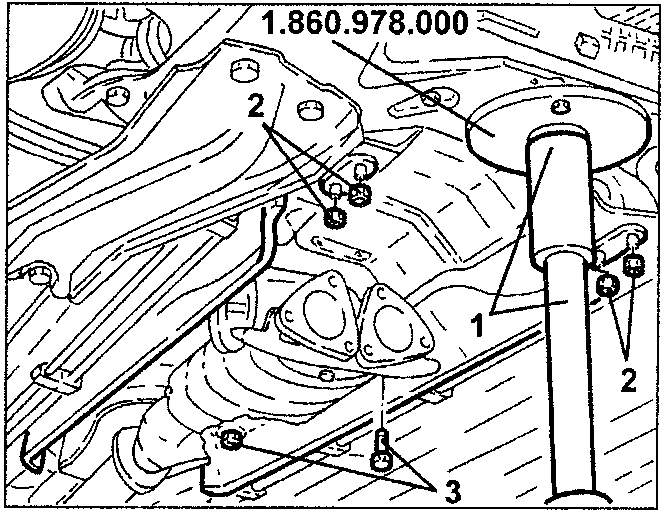

  1. Use a hydraulic jack to support the crossmember by means of tool no. 1.860.978.000.
  2. Loosen the gear lever bracket front fastening nuts.
  3. Loosen the rear screws and loosen the remaining gear lever screws.
Diagram showing crossmember with hydraulic jack tool 1.860.978.000, labeled parts 1, 2, and 3

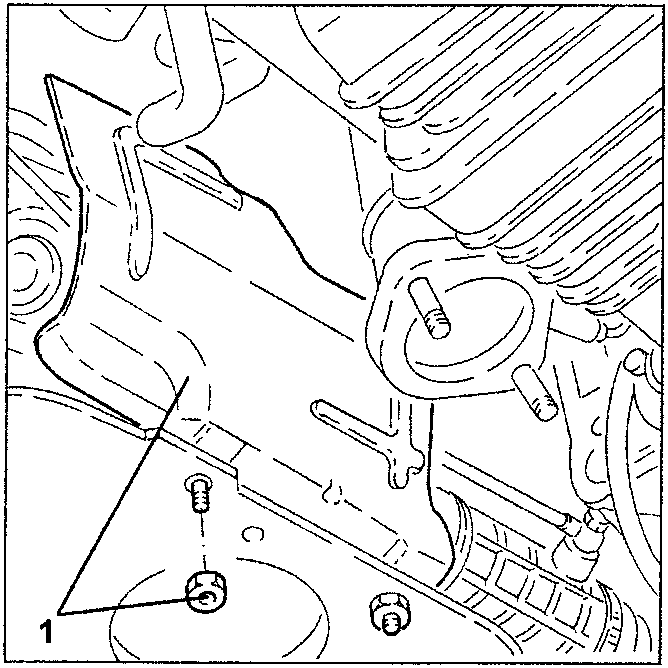

  1. Loosen the fastening nuts and remove the power steering unit firewall.
Diagram showing power steering unit firewall with bolts labeled 1 and 6

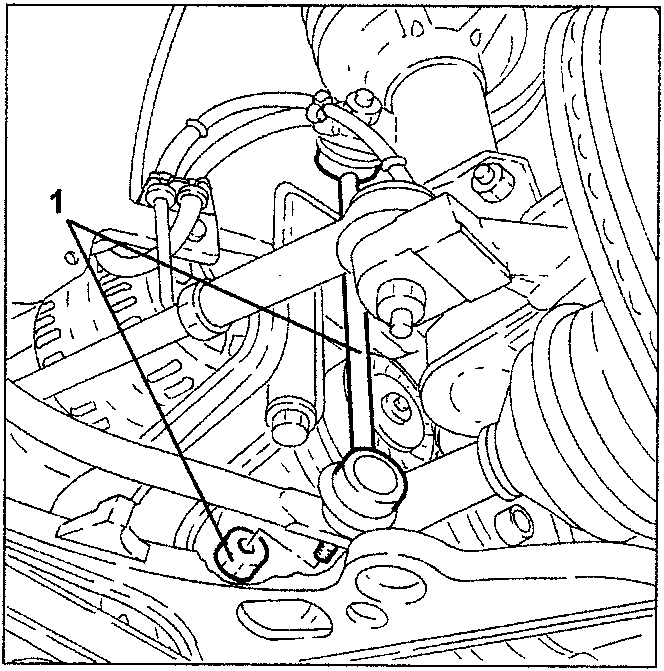

  1. Loosen the nuts and disconnect the stabiliser bar tie-rods.
Diagram showing stabiliser bar tie-rods with nut labeled 1
