Variants – 3.0 V6 24VRemoval/refitting · page 6 of 11
  1. Fit the two specific engine brackets on the cylinder heads.
  2. Fit crossmember no. 1.820.581.000 with brackets no. 1.820.239.000.
  3. Fit bracket no. 1.820.226.000 and connect the respective tie-rods to the brackets previously fitted on the cylinder heads.

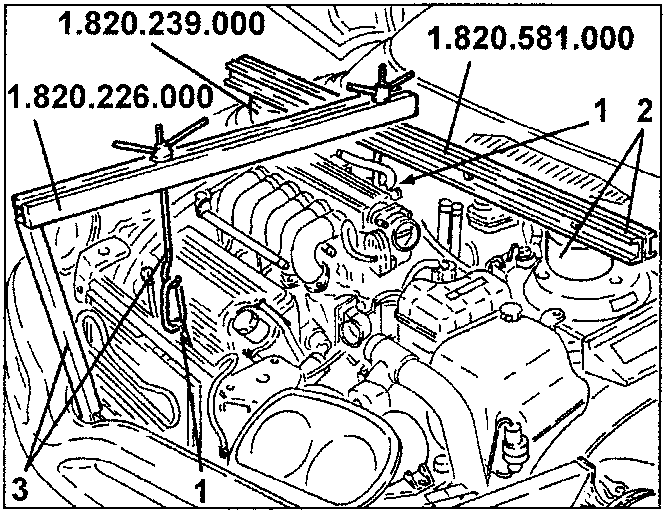

Engine with crossmember and brackets
  1. Remove the button, loosen the screws and remove the dust guard from the right-hand front wheel compartment.

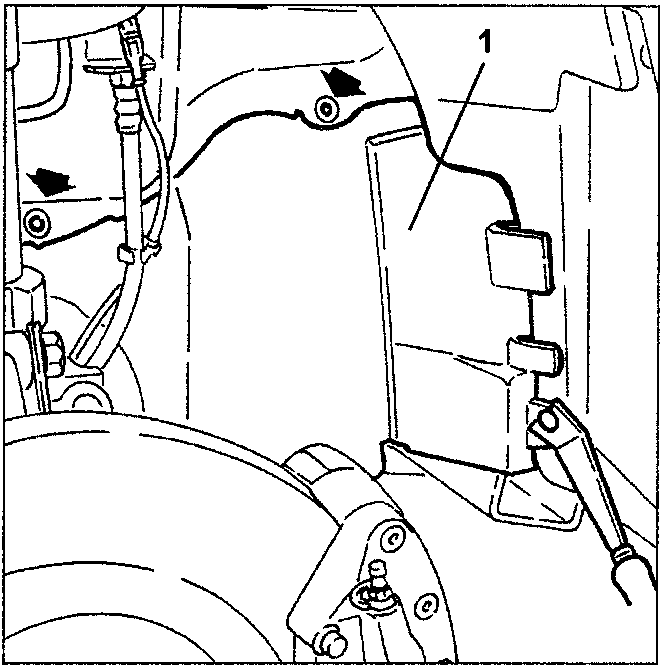

Right-hand front wheel compartment showing removal of dust guard

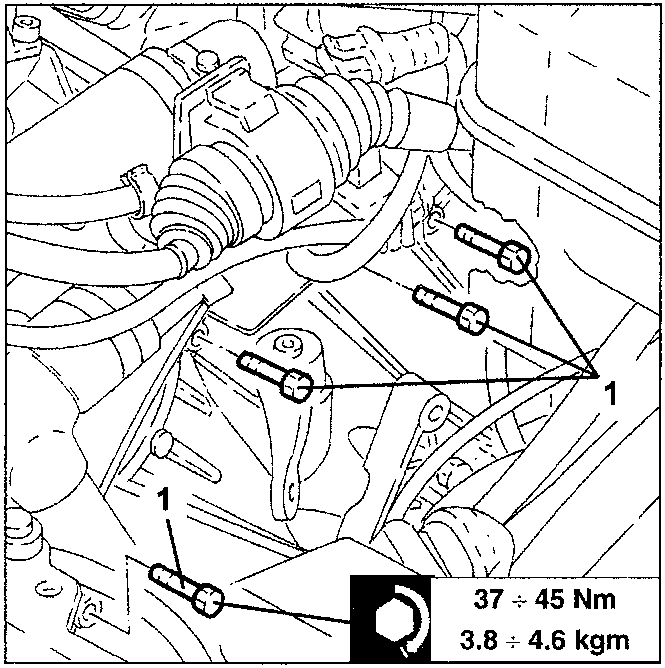

  1. Loosen the upper screws fastening the gearbox-differential to the engine.
Gearbox differential with bolts and torque specification box

37 ÷ 45 Nm
3.8 ÷ 4.6 kgm

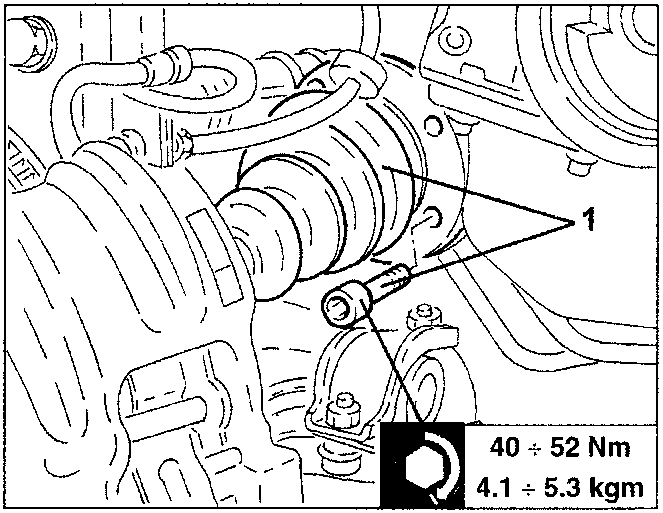

  1. Loosen the fastening bolts and disconnect the drive shafts.
Drive shafts with torque specification box

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm
