Removal/refitting (page 3 of 11)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Gearbox assembly

Variants – 3.0 V6 24VRemoval/refitting · page 3 of 11

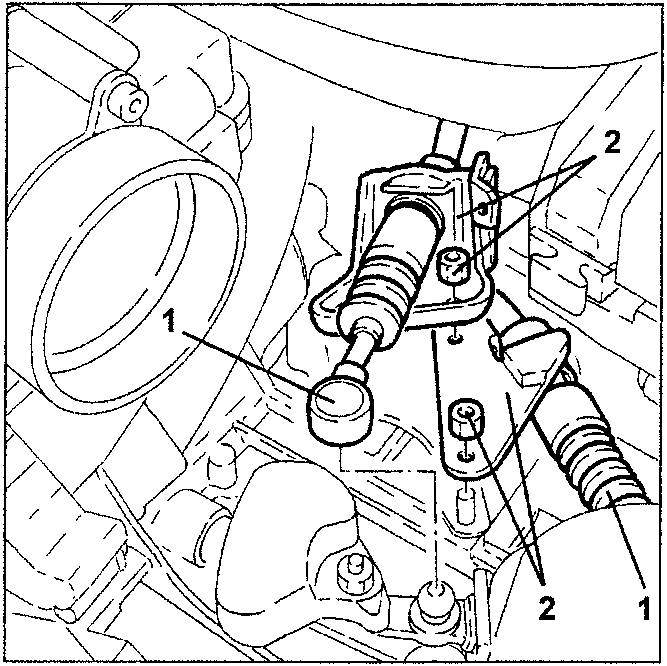

1. Disconnect the gear selection and engagement wires.
2. Loosen the nuts and move the brackets and selection/engagement wires aside.

1. Part 1
2. Part 2

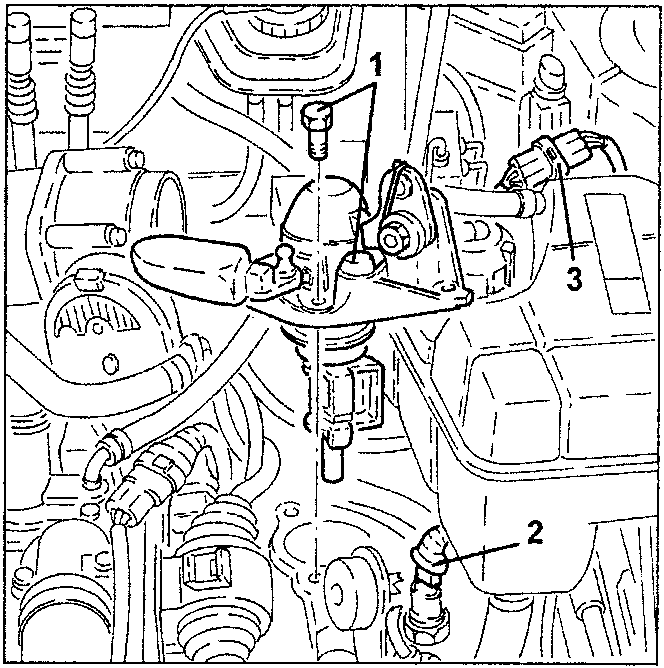

3. Loosen the screws and remove the gear selection and engagement assembly.
4. Disconnect the reversing light switch electrical connection.
5. Disconnect the starter motor power electrical connection.

1. Part 1
2. Part 2
3. Part 3

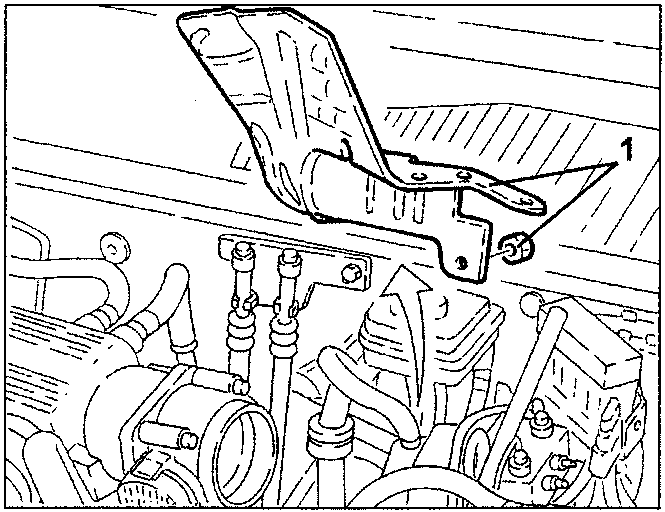

4. Loosen the nut and remove the upper firewall from the right-hand exhaust manifold.

1. Part 1

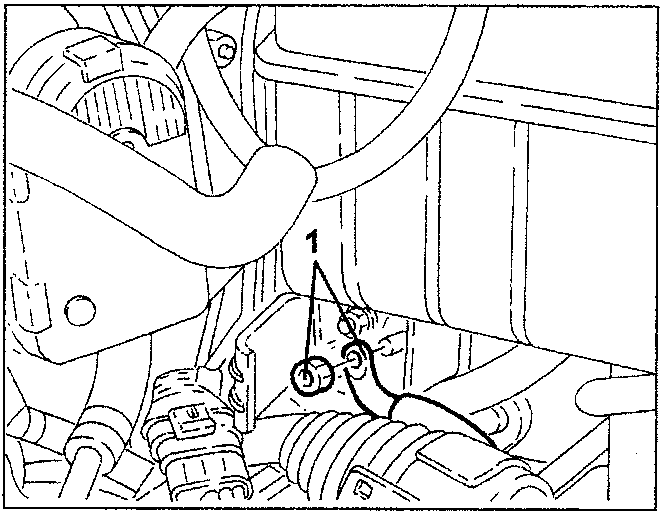

2. Open the junction unit and disconnect the starter motor power wire.

1. Part 1
