Removal/refitting (page 4 of 11)

• Release the starter motor power wiring from the fastening clips and move it aside.

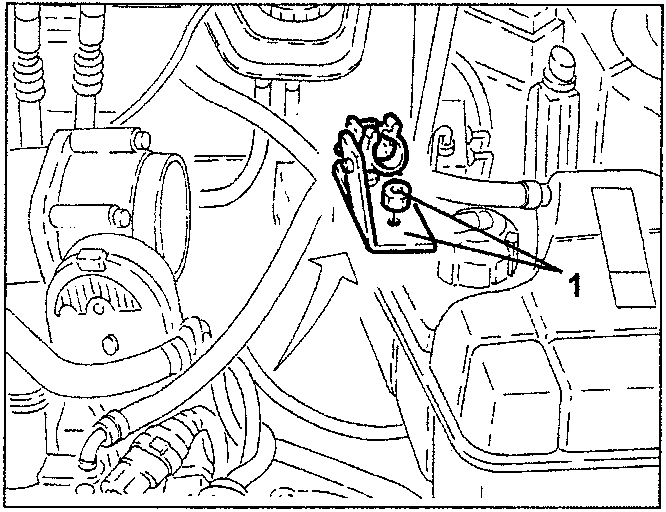

1. Loosen the fastening nut and remove the starter motor wiring bracket.

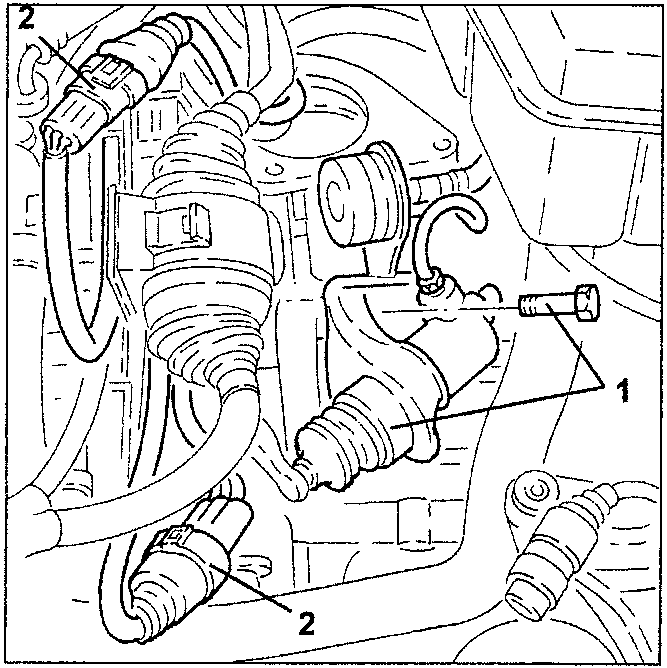

1. Loosen the fastening screws and move the bracket with clutch cylinder and vibration damper aside without disconnecting the respective pipes.
2. Disconnect the lambda sensor electrical connections and release the electrical wiring from the fastening clips.

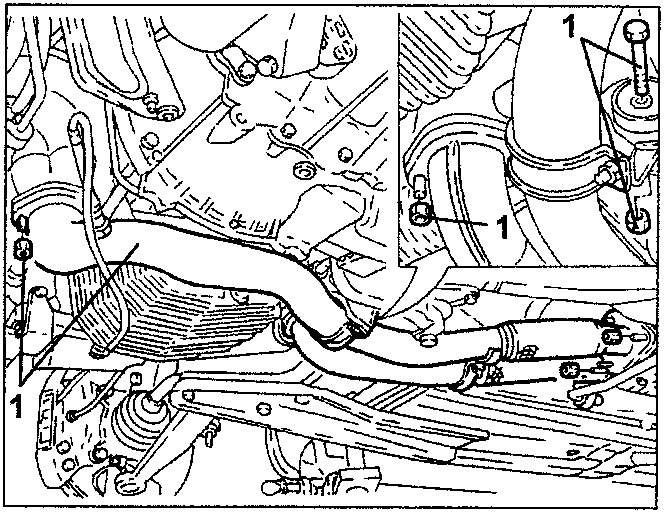

1. Loosen the fasteners and remove the exhaust pipe front section.

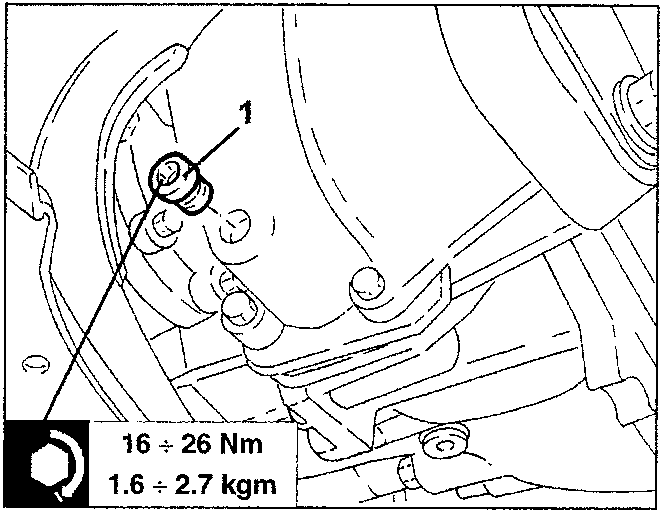

1. Loosen the cap and drain the gearbox-differential oil.

NOTE: Collect the oil in a suitable container.

16 ÷ 26 Nm
1.6 ÷ 2.7 kgm

• Loosen the nuts fastening the right-hand exhaust manifold to the cylinder heads.
