• Release the engine cooling fan from the fastenings on the upper radiator crossmember.

1. Loosen the screw fastening the right-hand side engine compartment guard to the upper radiator crossmember.
2. Loosen the fastening screws and remove the upper radiator crossmember.

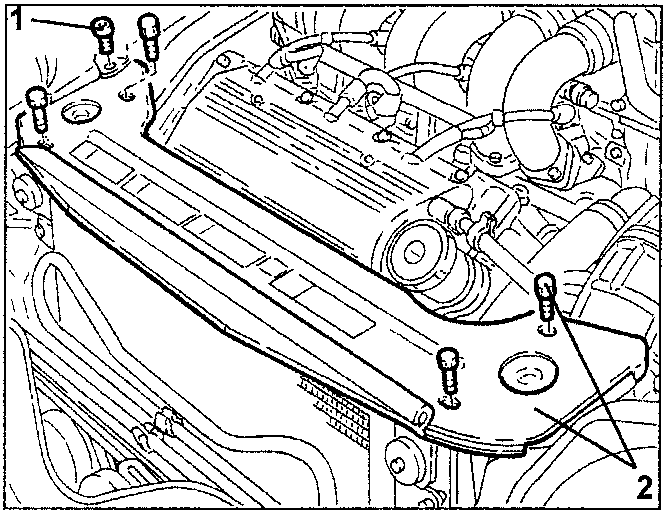

1. 1 Screw fastening right-hand side engine compartment guard to upper radiator crossmember.
2. 2 Fastening screws for upper radiator crossmember.

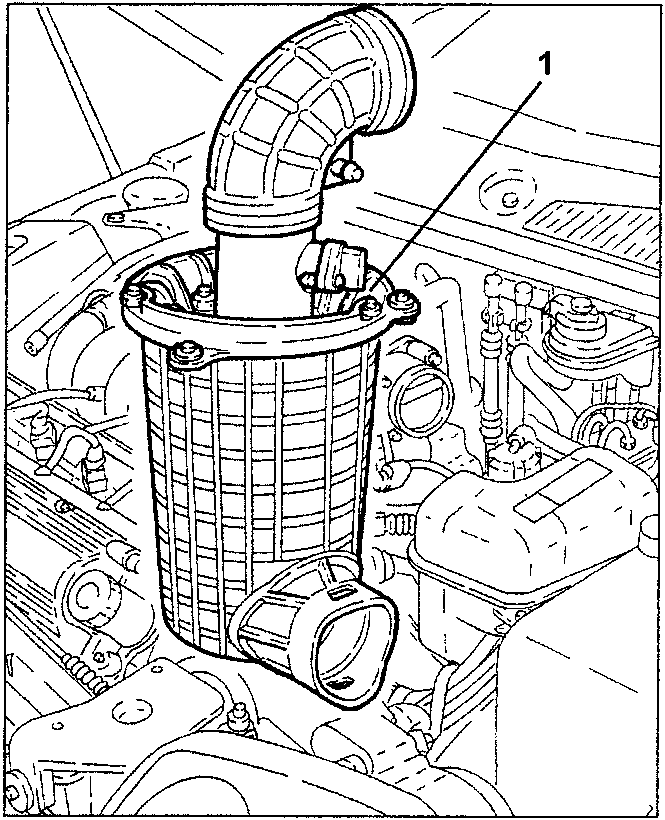

• Release the air cleaner from the lower resonator sleeve.

1. Remove the complete air cleaner.

1. Disconnect the air flow meter electrical connection.
2. Loosen the air cleaner fastening nuts.

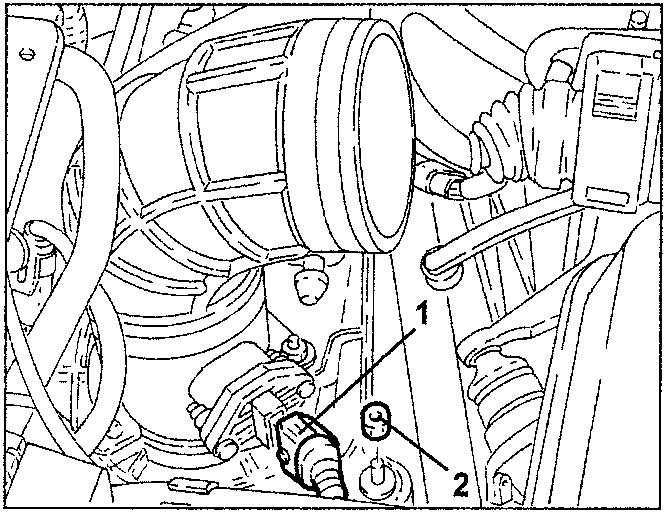

1. 1 Air flow meter electrical connection.
2. 2 Air cleaner fastening nuts.
1. Release the electrical wiring from the fastening clips on the bracket.
2. Loosen the fastening nut and remove the electrical wiring bracket.

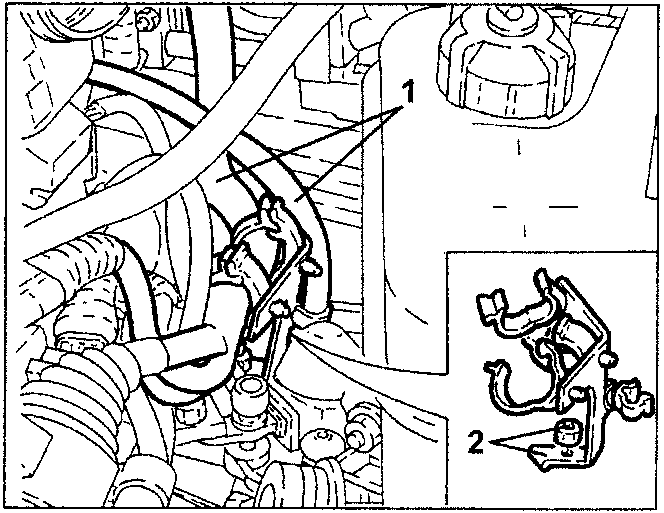

1. 1 Electrical wiring clips.
2. 2 Fastening nut for electrical wiring bracket.
