Variants – 3.0 V6 24VRemoval/refitting · page 8 of 11

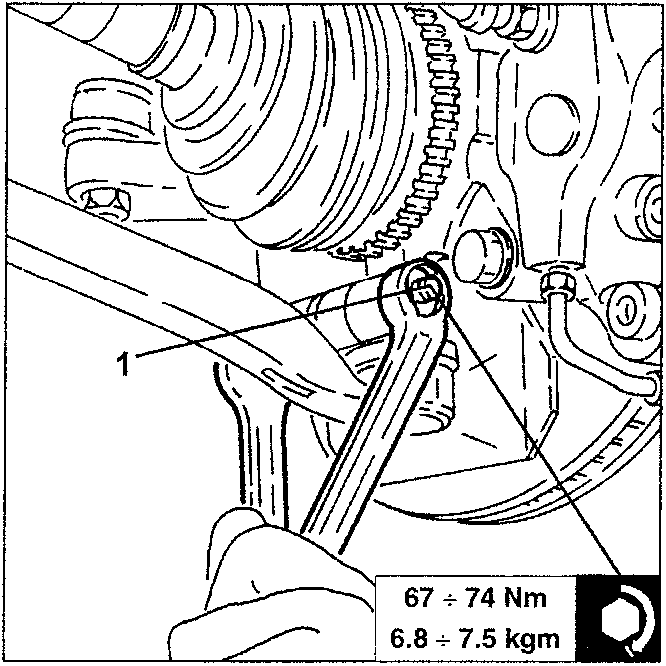

  1. Loosen the bolts fastening the wishbones to the wheel risers.
Wishbone bolt loosening with torque specification

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

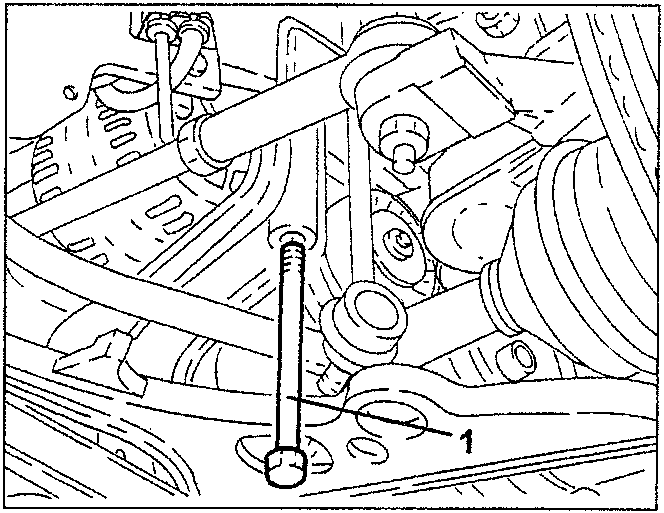

  1. Loosen the side screws fastening the crossmember to the underbody.
Side screws on crossmember

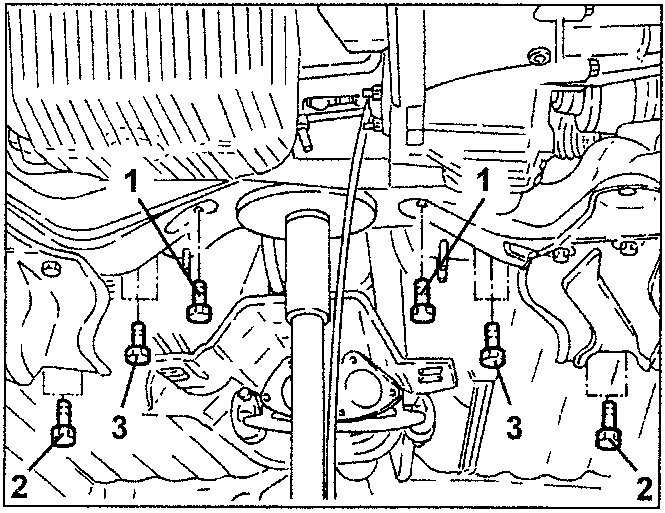

  1. Loosen the screws fastening the power steering unit to the crossmember.
  2. Loosen the rear screws fastening the crossmember to the underbody.
  3. Loosen the central screws fastening the crossmember to the underbody.
Screws on power steering unit and crossmember

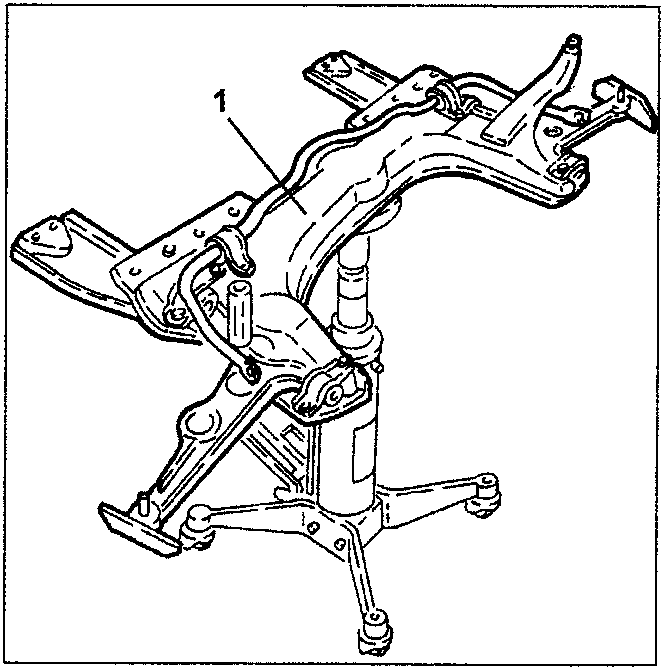

  1. Lower the hydraulic jack and remove the crossmember with wishbone, stabiliser bar and reinforcements.
Crossmember with wishbone and stabiliser bar removed
