Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Removal/refitting (page 10 of 11)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Gearbox assembly
Variants – 3.0 V6 24VRemoval/refitting · page 10 of 11

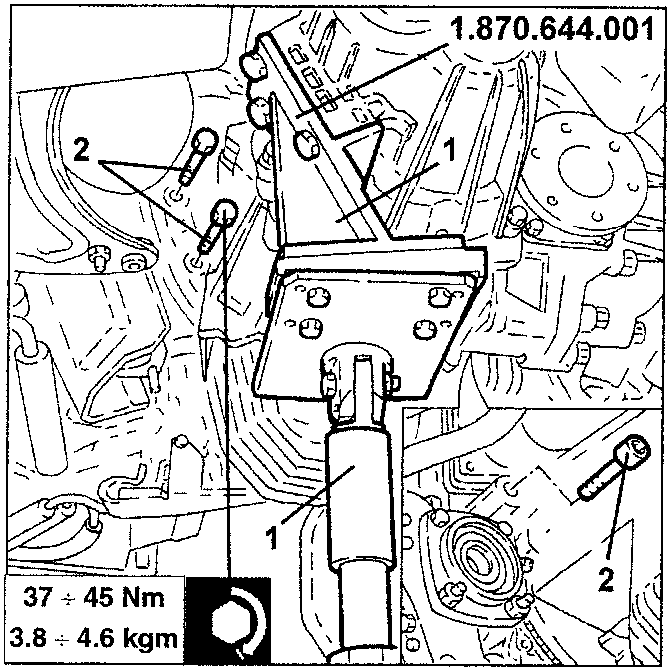

  1. Support the gearbox-differential with a hydraulic jack and tool no. 1.870.644.001.
  2. Loosen the remaining lower gearbox-differential fastening screws.
Hydraulic jack supporting gearbox-differential with tool 1.870.644.001, showing torque values 37 ÷ 45 Nm and 3.8 ÷ 4.6 kgm

37 ÷ 45 Nm
3.8 ÷ 4.6 kgm

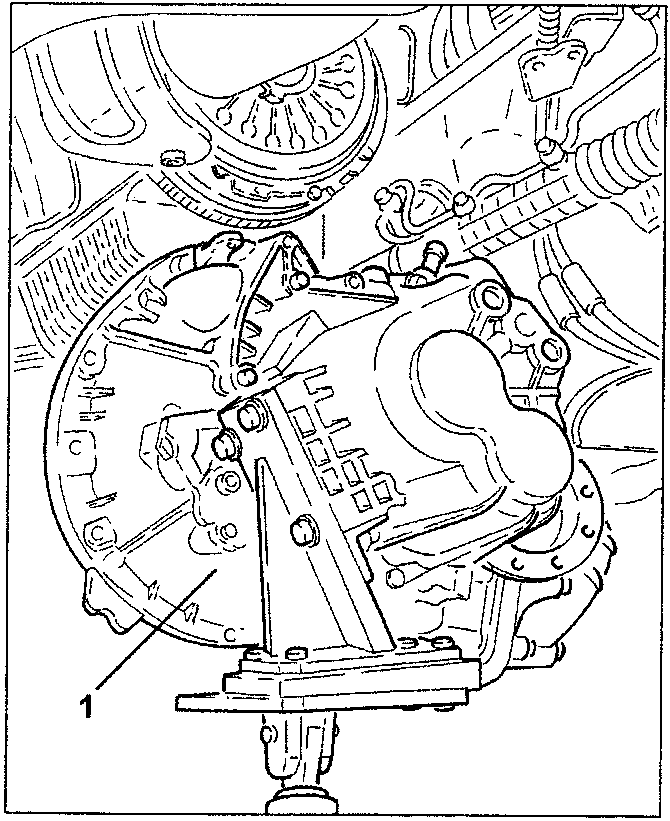

  1. Lower the hydraulic jack and remove the gearbox-differential assembly.
Gearbox-differential assembly being removed from engine, with tool 1 shown

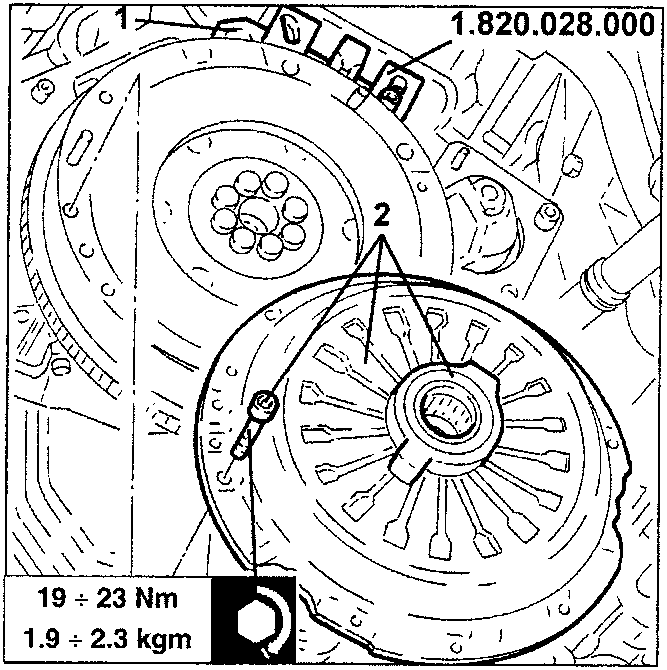

  1. Fit flywheel retainer tool no. 1.820.028.000.
  2. Loosen the screws and remove the clutch frame with thrust bearing and clutch plate.
Flywheel retainer tool 1.820.028.000 fitted, showing torque values 19 ÷ 23 Nm and 1.9 ÷ 2.3 kgm

19 ÷ 23 Nm
1.9 ÷ 2.3 kgm

Attain to the following precautions when refitting.

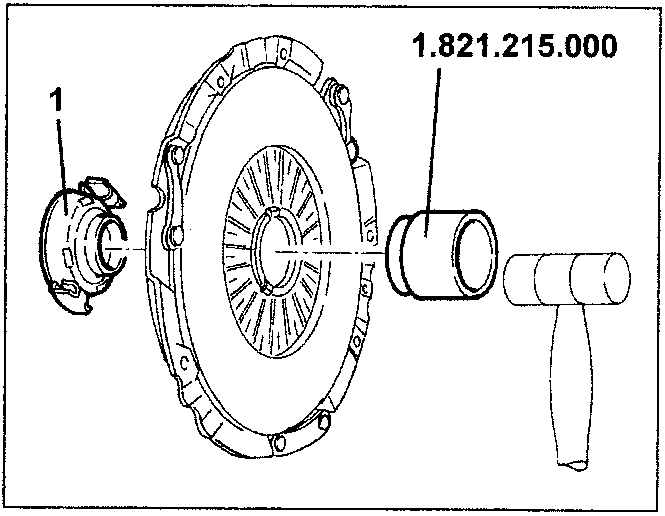

  1. Remove the thrust bearing from the clutch frame with tool no. 1.821.215.000.
Thrust bearing being removed from clutch frame using tool 1.821.215.000
