Removal/refitting (page 11 of 11)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Gearbox assembly

Variants – 3.0 V6 24VRemoval/refitting · page 11 of 11

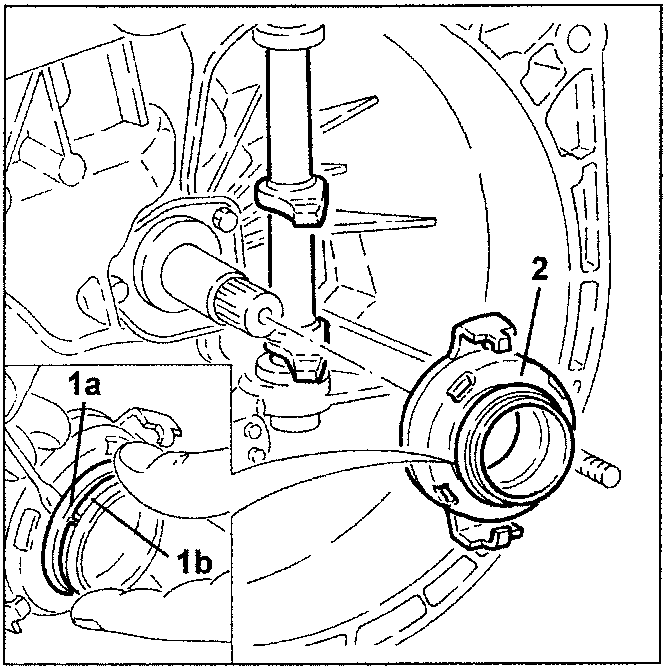

1. Lift the thrust bearing taper ring (1a) to cover spring (1b).
2. Fit the thrust bearing on the primary shaft and couple it with the fork pin.

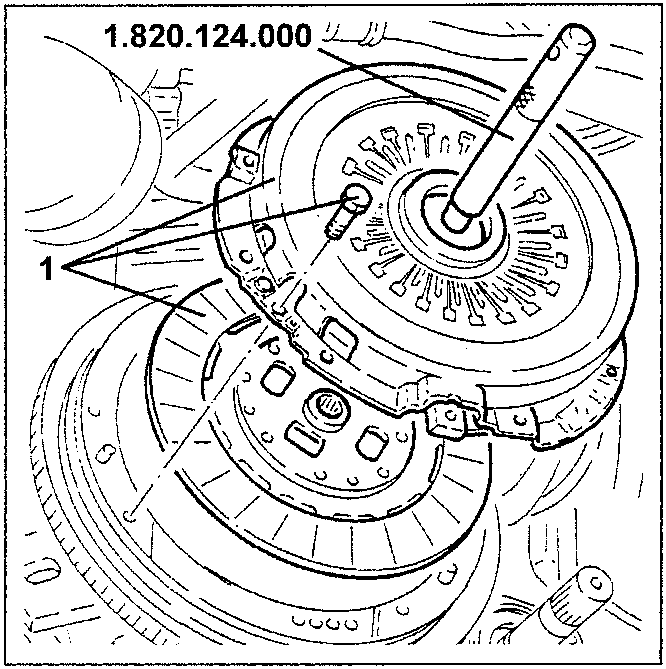

1. Fit the clutch plate and clutch frame centring them with tool no. 1.820.124.000.

• After fitting the gearbox and fastening it with the respective screws, operate the clutch lever to engage the thrust bearing on the clutch.
• Complete refitting by reversing the removal sequence until the gear selection/engagement assembly step. Then adjust the gear selection/engagement wires as follows.

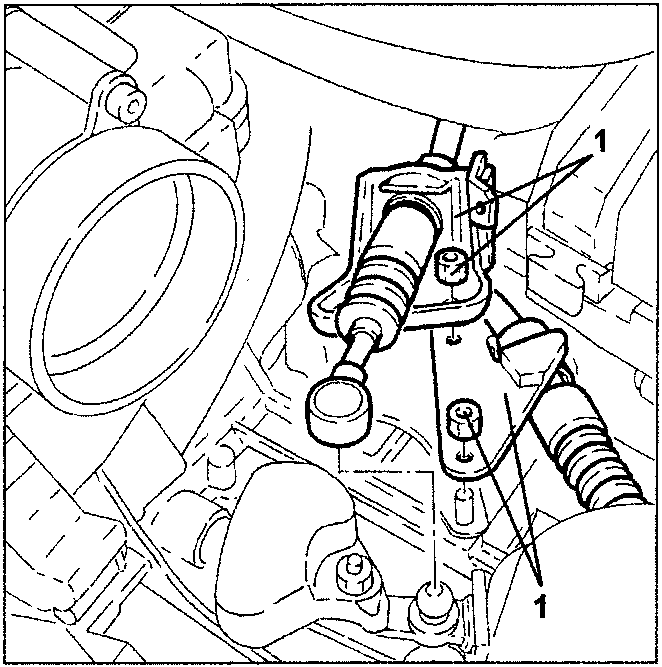

1. Position the bracket and gear selection/engagement wires. Fasten the respective nuts.

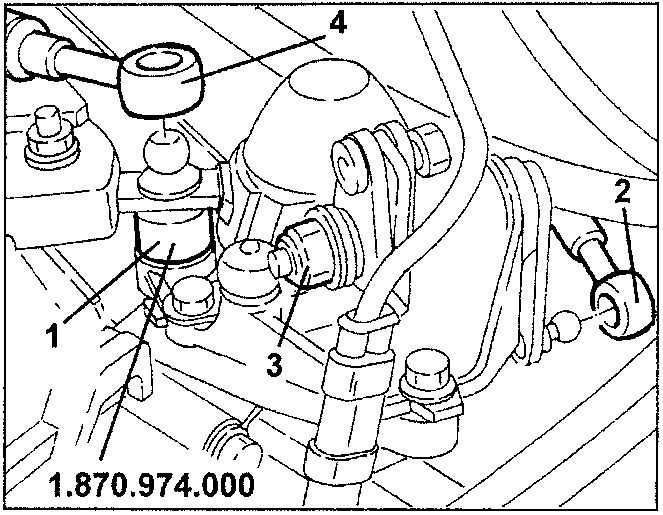

1. Fit tool no. 1.870.974.000 under the gear engagement wire ball coupling.
2. Connect the gear selection wire.
3. Loosen the gear selection/engagement assembly adjustment nut.

• Torque the gear selection/engagement assembly adjustment nut after positioning the gear lever in neutral and shifting it all to the right.

1. Connect the gear engagement wire.

• Position the gear lever in reverse and remove tool no. 1.870.974.000.

• Complete refitting by reversing the removal sequence.
