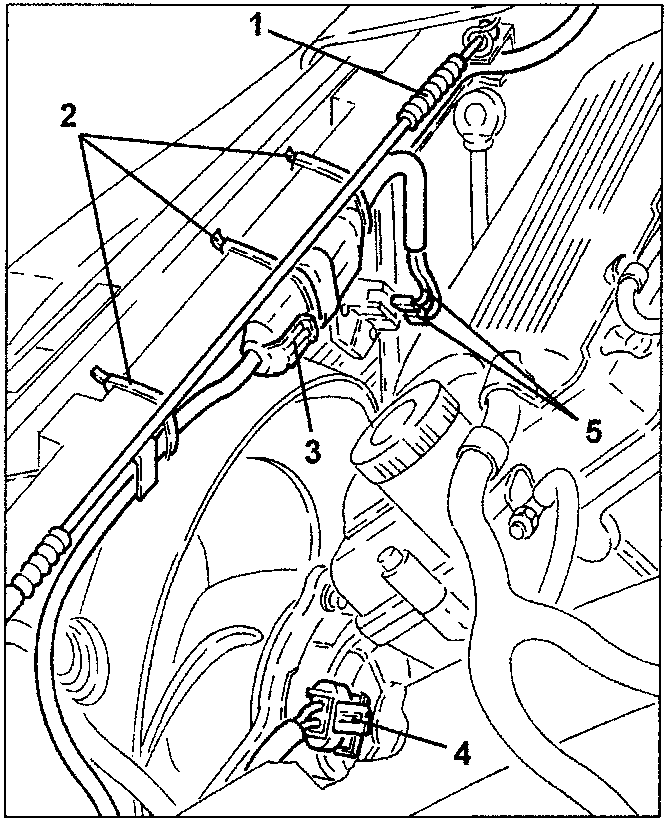

1. Disconnect the bonnet lock wire and move it aside.
2. Release the electrical wiring from the fastening clips and the duct.
3. Disconnect the electrical connection.
4. Disconnect the engine cooling fan electrical connection.
5. Disconnect the engine cooling fan resistor electrical connection and move the electrical wiring aside.

1. bonnet lock wire
2. electrical wiring duct
3. engine cooling fan
4. engine cooling fan resistor
5. electrical connection

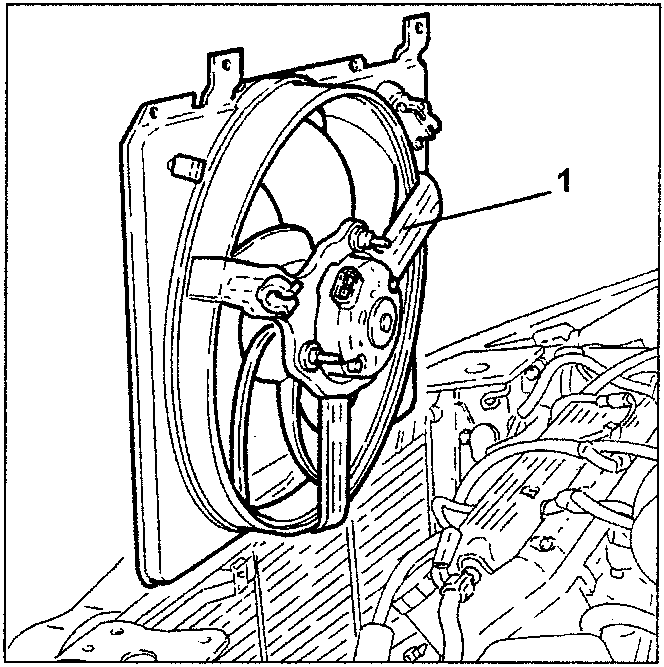

1. Move the radiator from the engine just enough to remove the engine cooling fan.

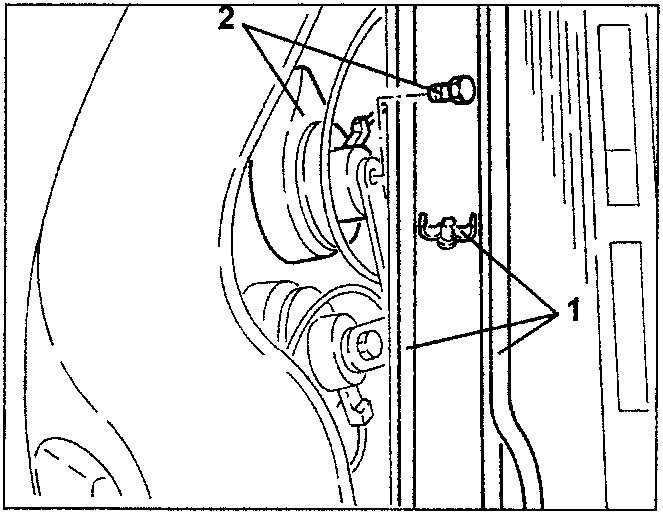

1. Release the power steering cooling serpentine from the fasteners on the underbody front crossmember.
2. Loosen the fastening screw and move the right-hand horn aside.

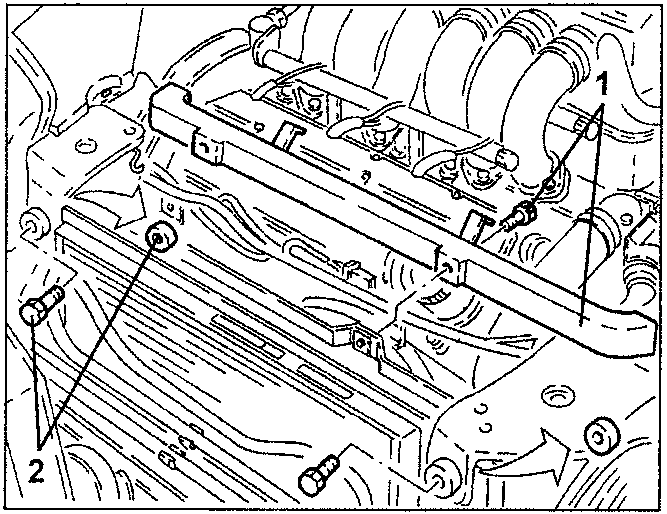

1. Loosen the screws and remove the electrical wiring duct.
2. Loosen the two upper engine cooling radiator fastening screws and take the respective shims.
