VEHICLE OPERATIONS

Differential casing oil seal, gearbox side

  • Position the vehicle on a shop jack.
  • Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
  • Remove the front left-hand wheel.
  1. Remove the button, loosen the screws and remove the front left-hand wheel compartment dust guard.

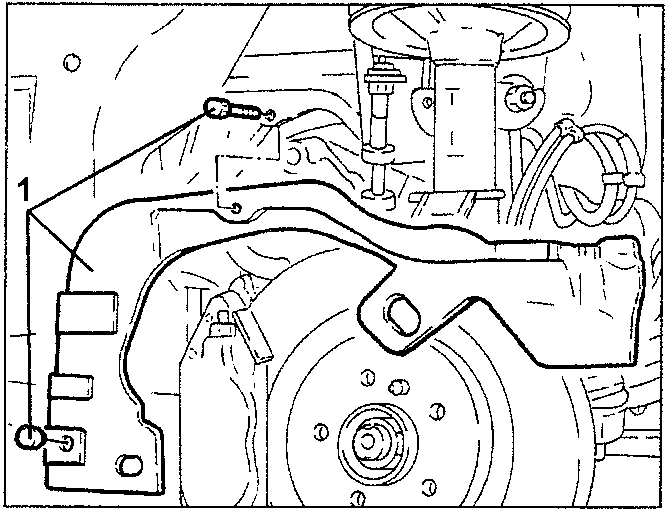

Front left-hand wheel compartment with dust guard removed
  • From the left-hand wheelhouse, disconnect the brake pad wear sensor electrical connection.
  • Release the ABS inductive sensor wire from the bracket.
  1. Loosen the bolts fastening the left-hand drive shaft to the internal differential shaft.

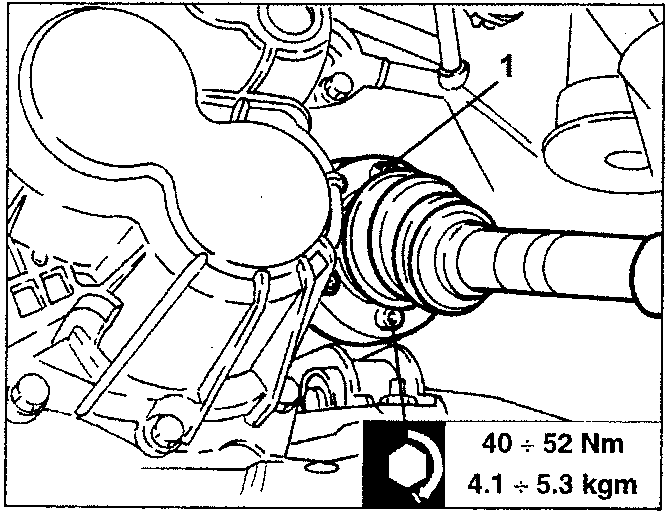

Left-hand drive shaft connected to internal differential shaft

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm

GEARBOX

  1. Loosen the two bolts fastening the left-hand riser to the shock absorber, and remove only the upper bolt.

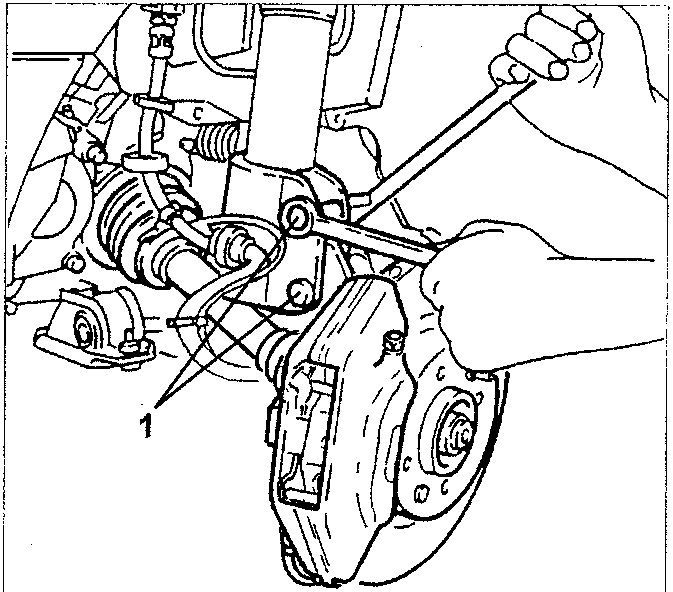

Left-hand riser connected to shock absorber
  1. Use tools no. 1.820.229.000 and no. 1.821.161.000 to remove the differential internal drive shaft.

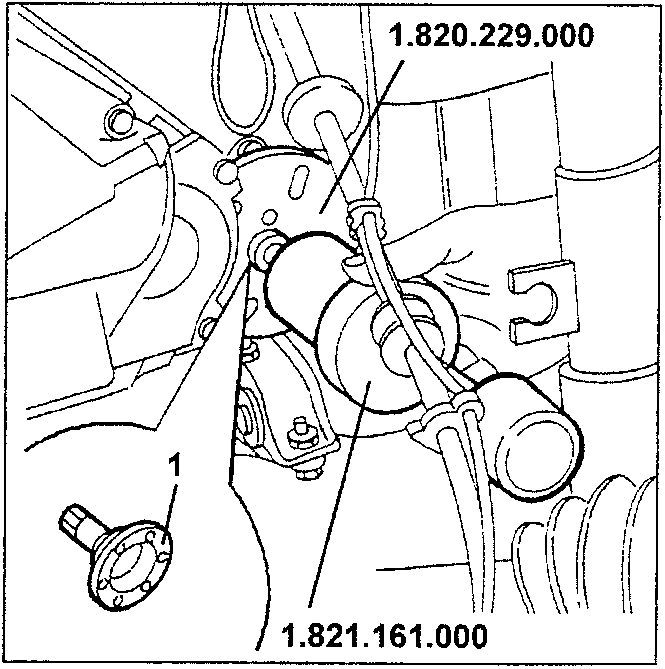

Differential internal drive shaft being removed with tools
