TIMING BELT REPLACEMENT

  • Position the vehicle on a shop jack.
  • Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
  • Remove the front right-hand wheel.

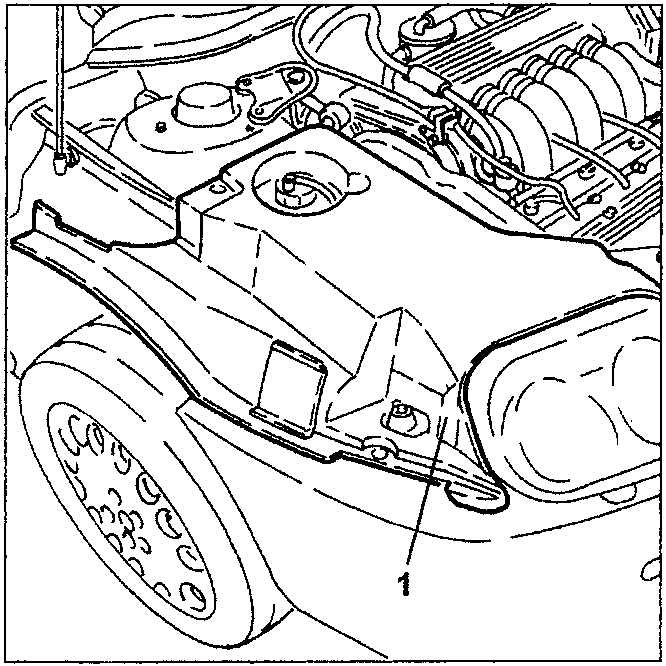

  1. Loosen the fastening nuts and remove the engine compartment side guard.
Engine compartment with side guard removed, showing fastening nuts labeled 1

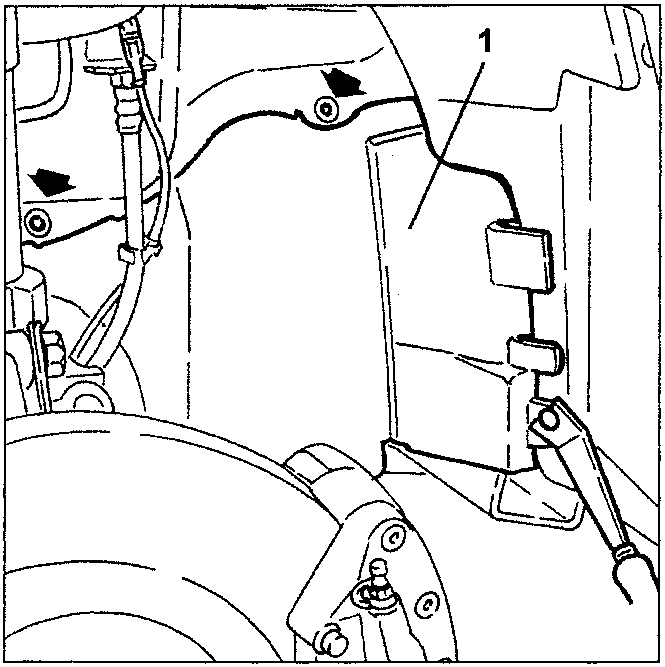

  1. Loosen the fastening screws, remove the plastic button and remove the mud flap from the front right-hand wheel compartment.
Front right-hand light cluster removal, showing fastening screws and plastic button labeled 1
  • Remove the front right-hand light cluster (see assembly 55).

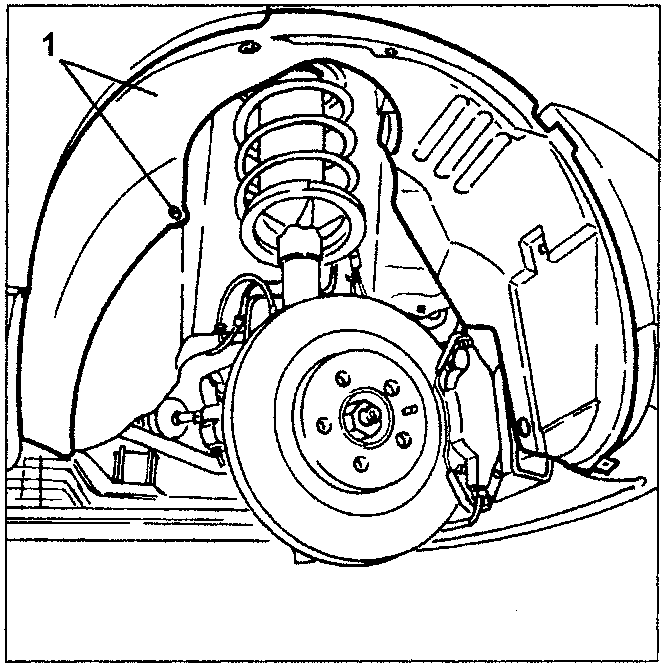

  1. Loosen the fasteners and remove the front right-hand wheelhouse.
Front right-hand wheelhouse with fasteners labeled 1

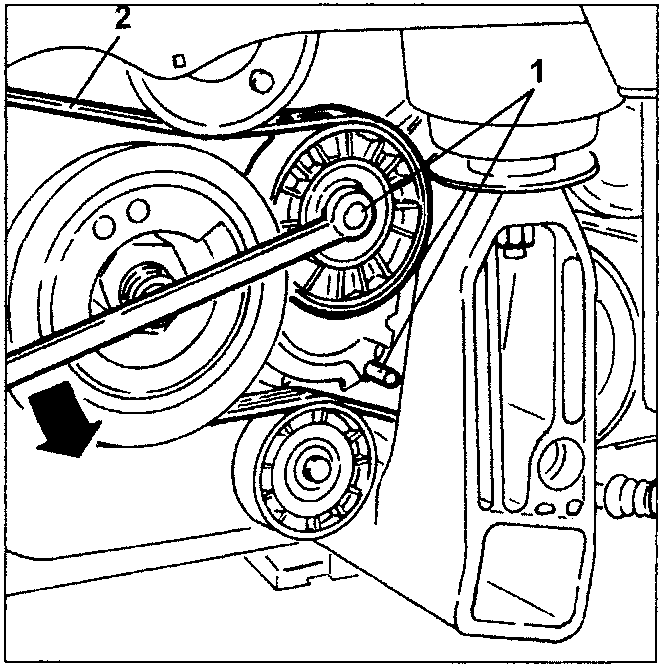

  1. Loosen the belt take-up pulley fastening screw with a wrench to overcome the automatic take-up device force (belt loose) by inserting the pin as shown in the figure.
  2. Remove the engine unit drive belt.
Engine unit drive belt removal, showing pulley and belt labeled 1 and 2
