Variants – 3.0 V6 24VMaintenance · page 1 of 10

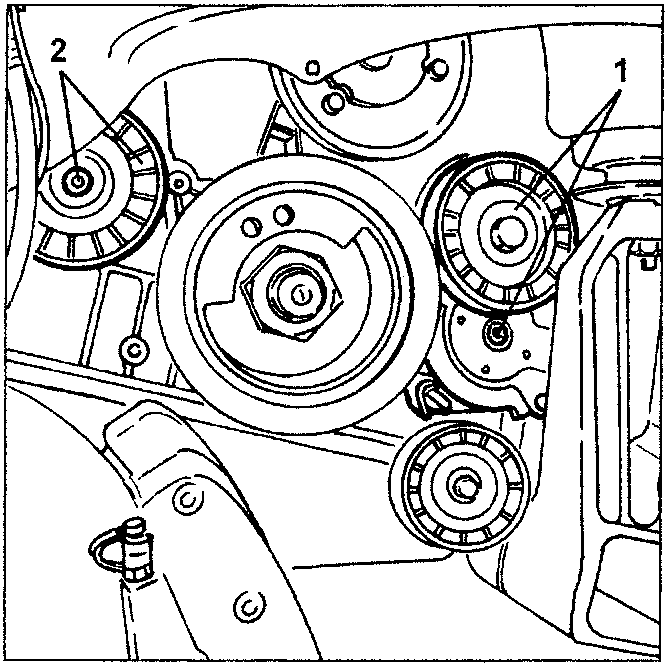

  1. Loosen the fastening screw and remove the engine unit drive belt take-up device.
  2. Loosen the fastening screw and remove the engine unit drive belt runner.
Engine unit with pulleys and belts, showing numbered parts 1 and 2
  1. part name
  2. part name

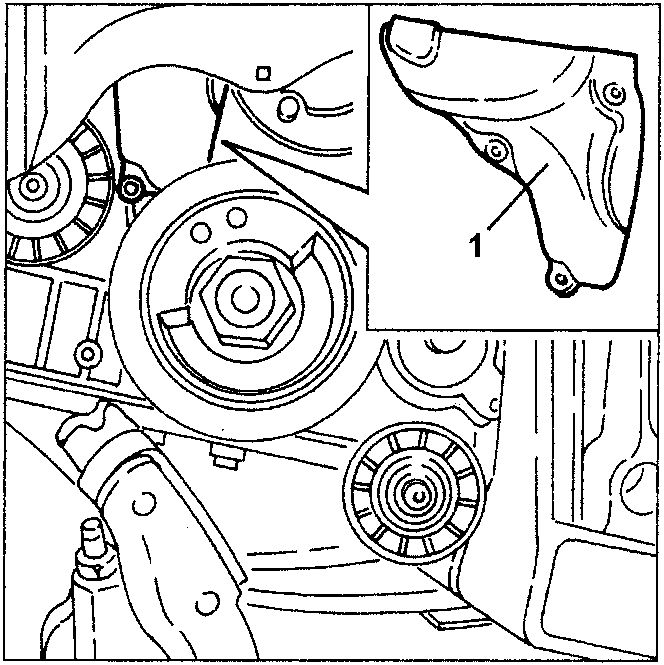

  3. Loosen the fastening screws and remove the lower right-hand timing belt guard.
Engine with timing belt guard being removed, showing part 1

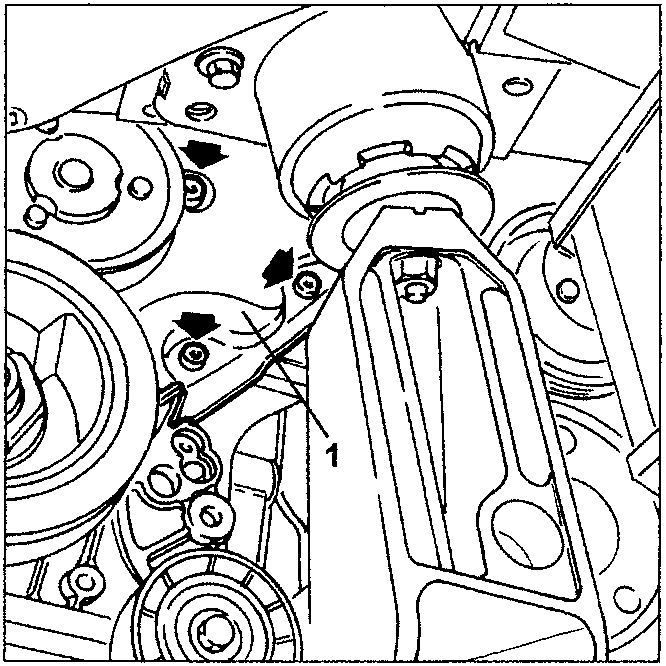

  1. Loosen the fastening screws and remove the lower left-hand timing belt guard.
Engine with timing belt guard being removed, showing part 1

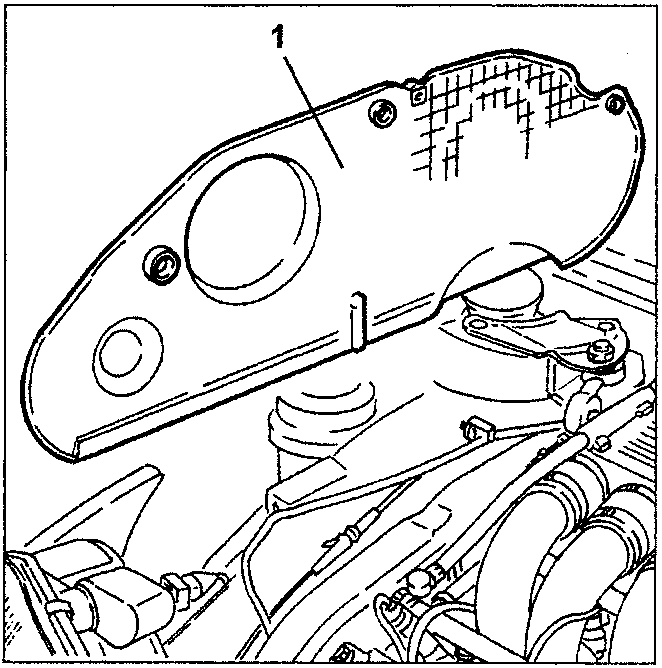

  1. Loosen the fastening screws and remove the upper timing belt guard.
Upper timing belt guard shown separately, labeled as part 1
