Maintenance (page 10 of 10)

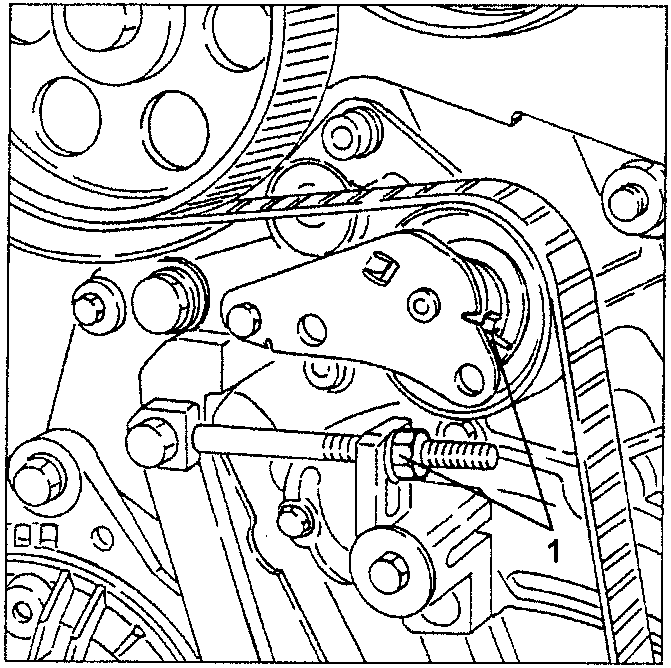

1. Take the mobile notch under the fixed notch on the belt take-up by means of the nut shown in the figure.

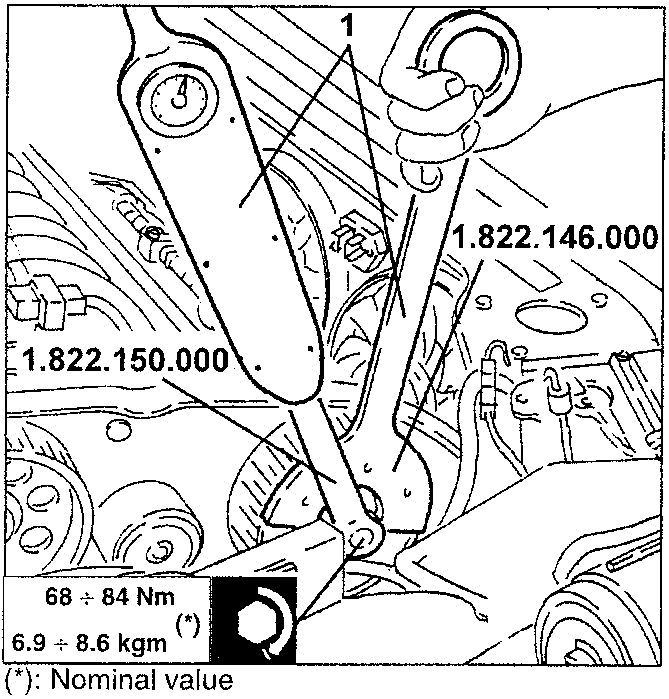

1. Use extension no. 1.822.150.000 and tool no. 1.822.146.000 to contrast torque: Torque the shaft drive pulley fastening screws as prescribed.

68 ÷ 84 Nm
6.9 ÷ 8.6 kgm

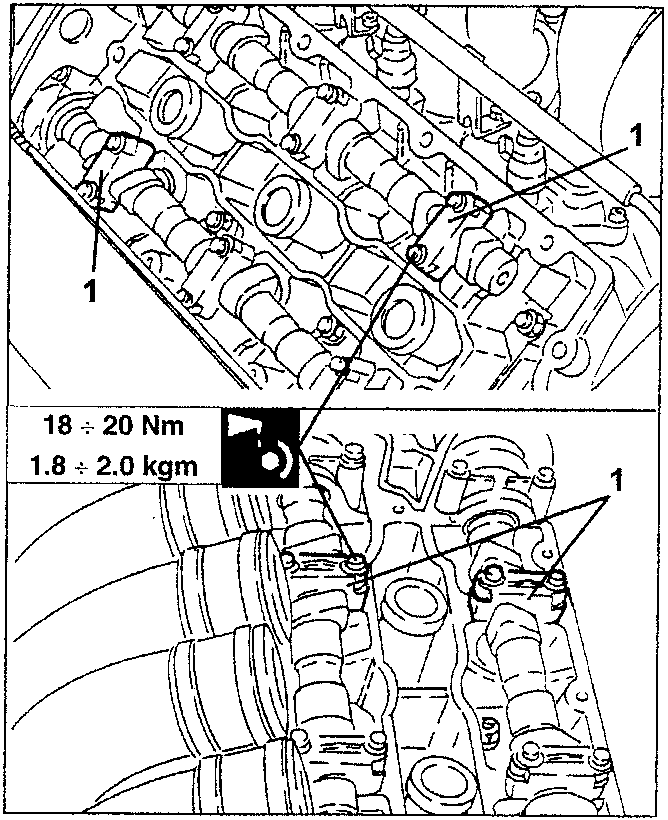

1. Remove the previously fitted templates no. 1.825.040.000 and fit the respective bearings in their place. Torque the fastening screws as prescribed.

18 ÷ 20 Nm
1.8 ÷ 2.0 kgm

• Turn the crankshaft twice in the direction of rotation so to fit the timing belt well.

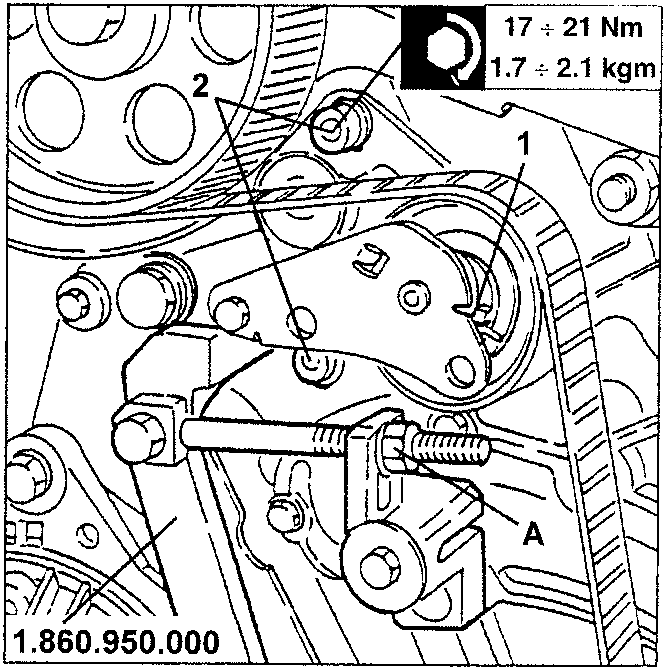

1. Check whether the fixed notch on the belt take-up coincides with the mobile notch. If this is not so, adjust take-up tension by means of nut (A) until the notches coincide.
2. Torque the belt take-up fastening screws and remove tension tool no. 1.860.950.000.

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm
