Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Maintenance (page 9 of 10)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Maintenance
Variants – 3.0 V6 24VMaintenance · page 9 of 10

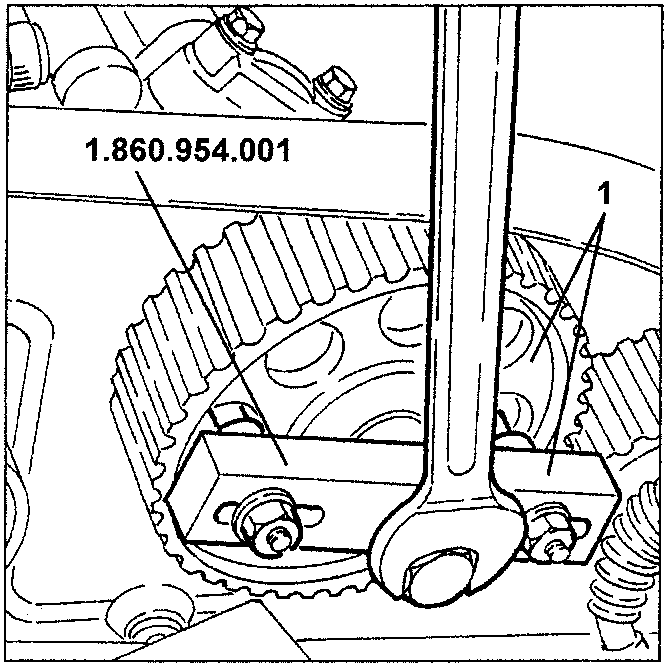

  1. Use tool no. 1.860.954.001. Extract the camshaft drive pulleys and reposition in their seats fastening the screws by hand.
Tool 1.860.954.001 extracting camshaft drive pulley
  1. Turn the engine pulley fastening nut slightly in both direction to take 1st cylinder piston to TDC, firing stroke.

NOTE: Make sure the last crankshaft turn is in the direction of operation.

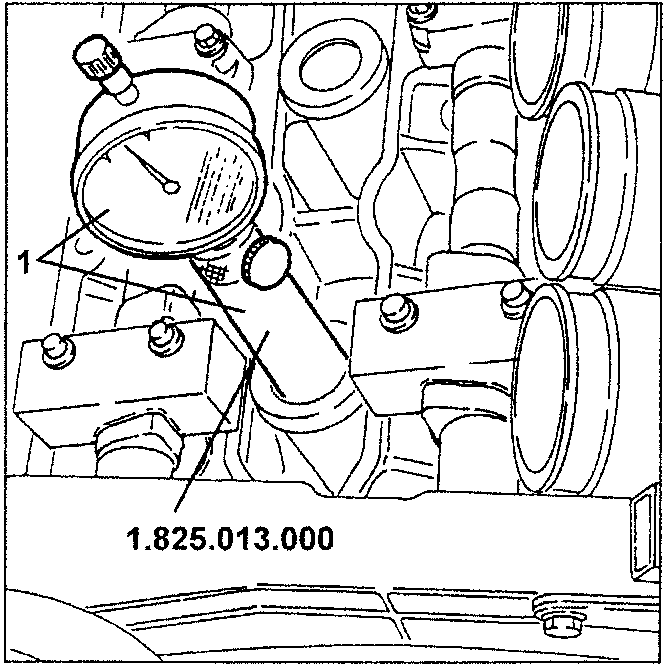

Engine pulley adjustment with tool 1.825.013.000
  • Complete timing belt assembly by fitting it on the drive pulley.

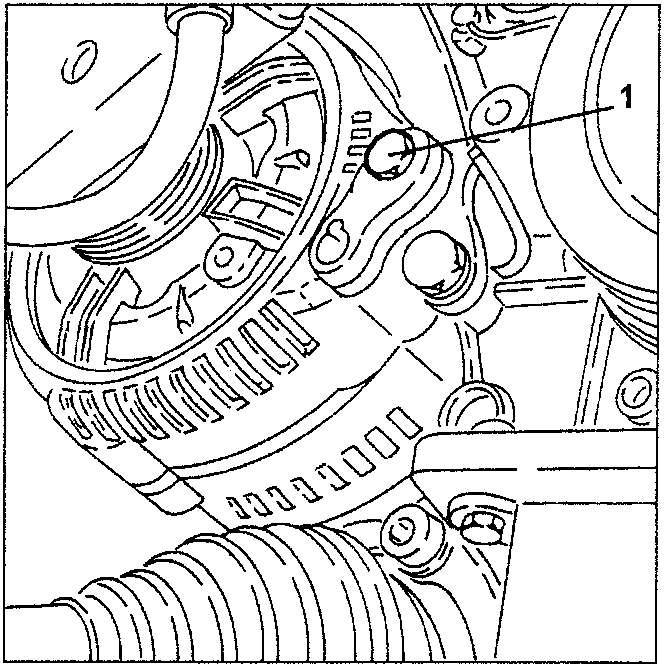

  1. Loosen the lower alternator screw to fit the timing belt tension tool.
Loosening lower alternator screw for timing belt tension tool

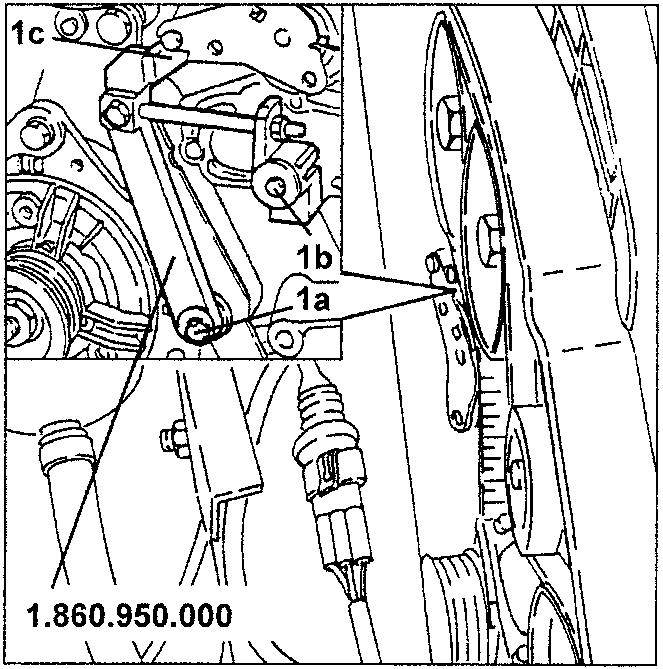

  1. Fit timing belt tension tool no. 1.860.950.000 and fasten it with the previously screw (1a) to the alternator and screw (1b) to the coolant pump; tool pin (1c) should contrast the mobile part of the belt take-up.
Timing belt tension tool 1.860.950.000 fitted with screws 1a, 1b and pin 1c
