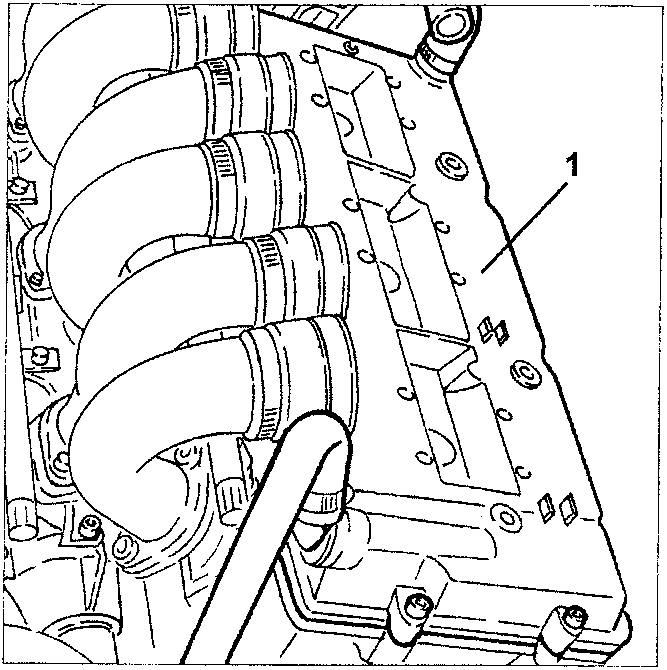

  1. Loosen the fastening screws and remove the right-hand cylinder head cover.
Engine with cylinder head cover being removed, showing bolts and intake manifold

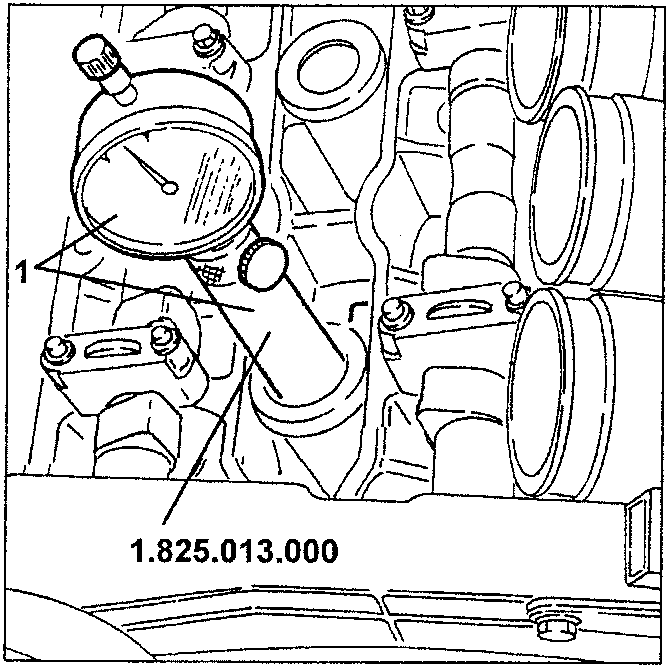

  1. Fit tool no. 1.825.013.000 in the first cylinder spark plug seat. - Take 1st cylinder piston to TDC, firing stroke, by slightly turning the crankshaft in both directions by means of the auxiliary unit drive pulley.

NOTE: Make sure the last crankshaft rotation is in the direction of operation.

Engine with torque wrench tool 1.825.013.000 fitted to first cylinder spark plug seat

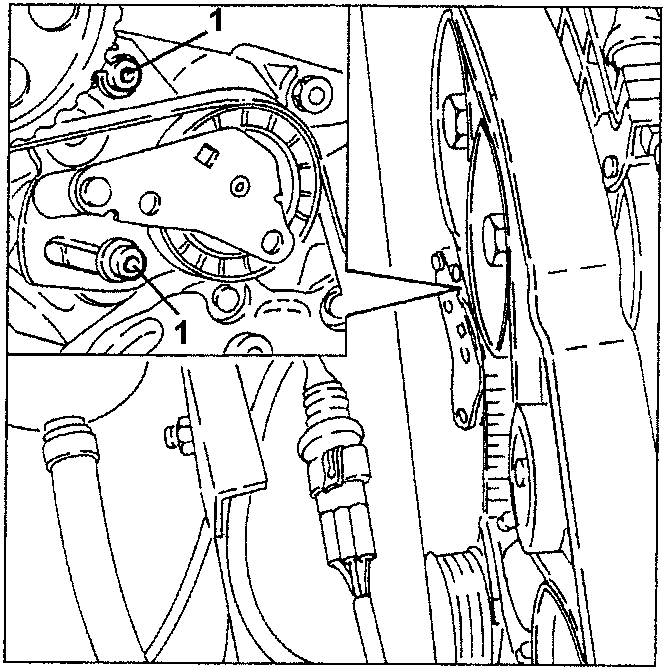

  1. Loosen the timing belt take-up device fastening screws.
Timing belt take-up device with fastening screws shown

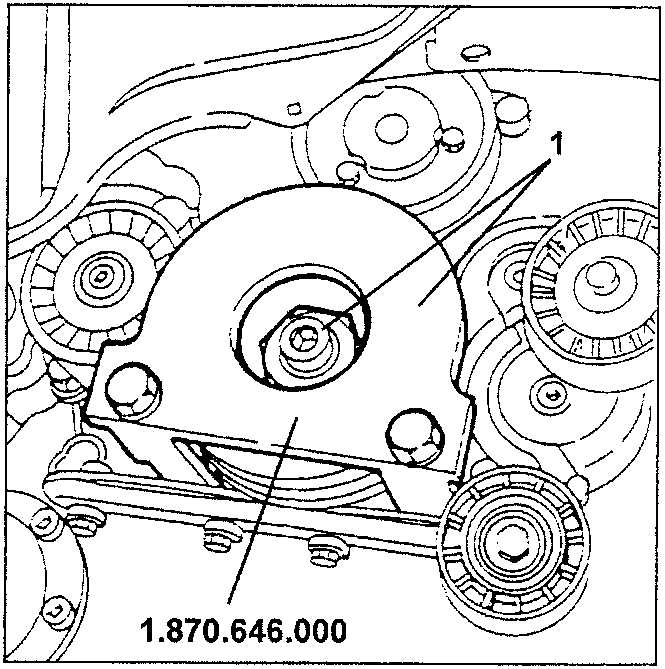

  1. Loosen the engine pulley nut with tool no. 1.870.646.000 to contrast torque.
Engine pulley nut being loosened with tool 1.870.646.000
