Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Maintenance (page 8 of 10)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Maintenance
Variants – 3.0 V6 24VMaintenance · page 8 of 10
  1. Fit templates no. 1.825.040.000 in the position shown on the templates in the place of the removed camshaft bearings.

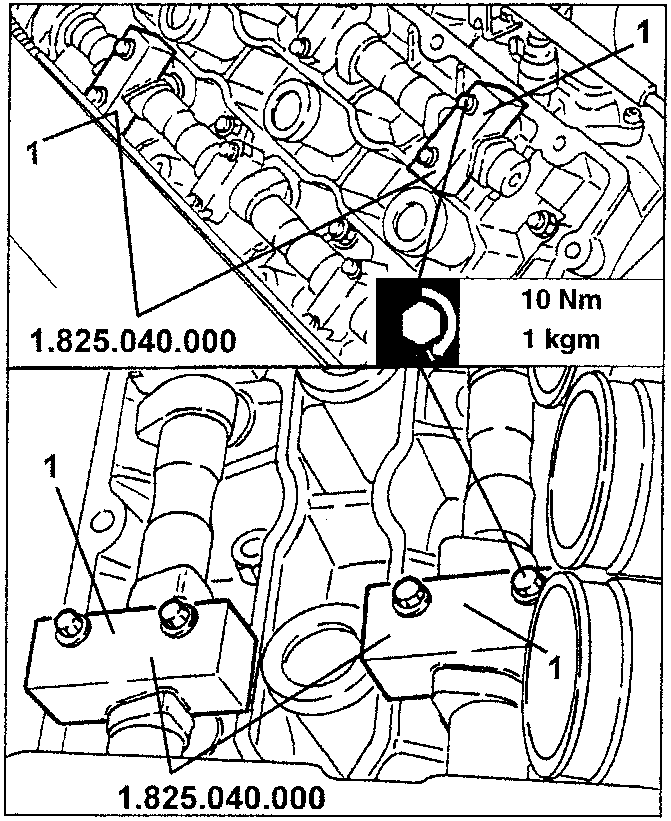

Engine block with templates 1.825.040.000 fitted, showing torque values 10 Nm and 1 kgm
  • Lift the vehicle and fit a new timing belt on the drive pulley.
  1. Refit the engine pulley and fasten the respective nut without torquing.
  2. Fit tool no. 1.870.646.000 and torque the engine pulley fastening nut as prescribed.
  3. Remove tool no. 1.870.646.000.

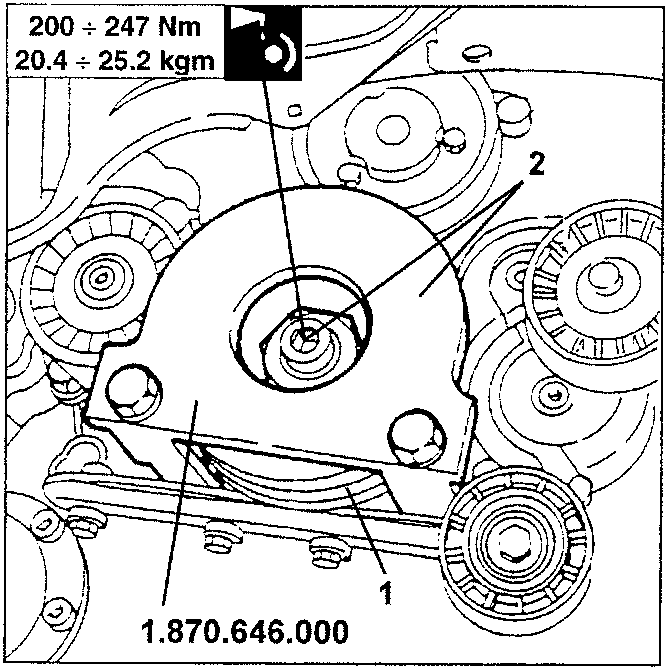

Engine pulley with tool 1.870.646.000, showing torque range F200 ÷ 247 Nm (20.4 ÷ 25.2 kgm)

200 ÷ 247 Nm
20.4 ÷ 25.2 kgm

  1. Loosen the fastening screws and remove the tie-rod and bracket on underbody side.

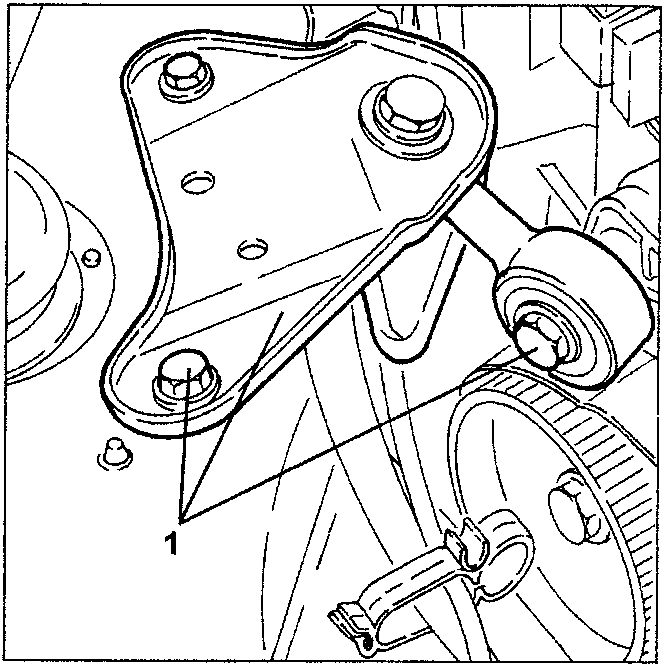

Underbody side view showing tie-rod and bracket removal
  1. Lower the vehicle. Use extension no. 1.822.150.000 and tool no. 1.822.146.000 to contrast torque. Loosen the camshaft drive pulley fastening screws.

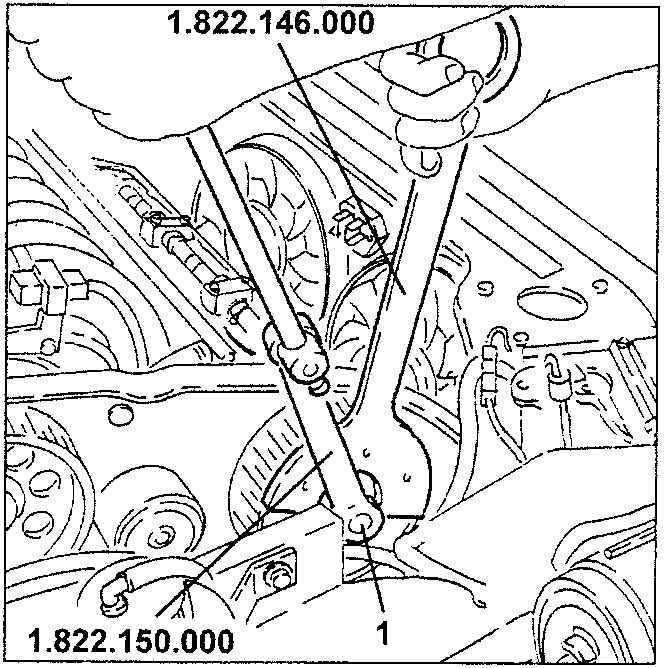

Camshaft drive pulley with extension 1.822.150.000 and tool 1.822.146.000 for torque contrast
