• Remove tool no. 1.870.646.000.

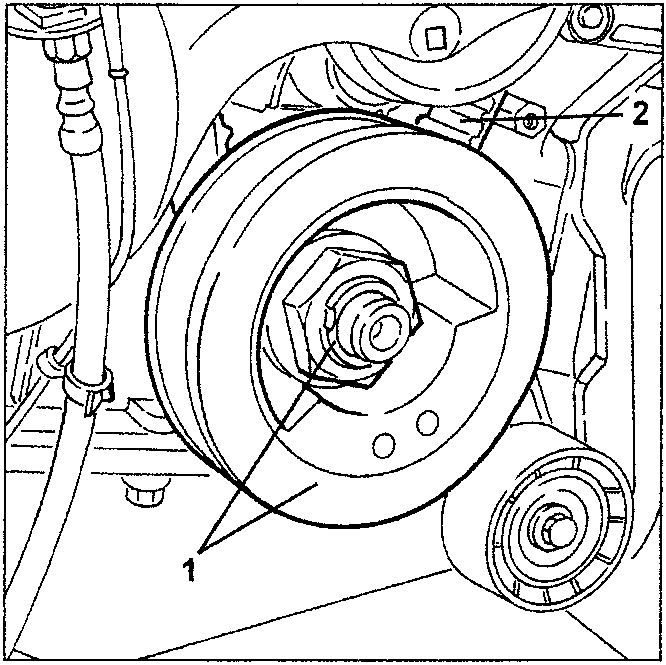

1. Loosen the nut and remove the engine pulley.
2. Remove the timing belt.

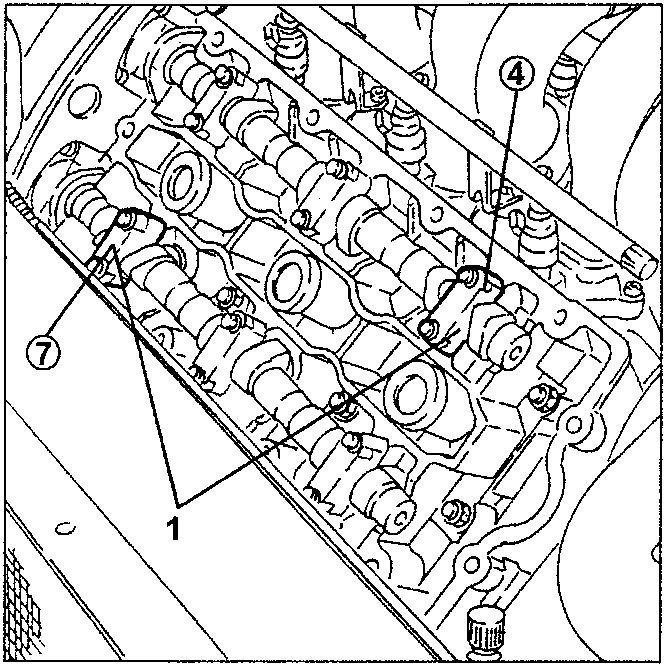

1. Remove the left-hand cylinder head camshaft bearings 4 and 7.

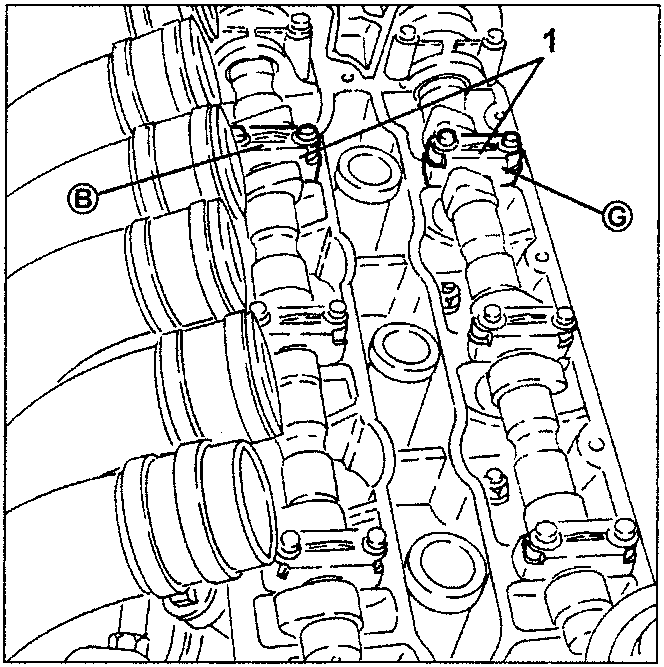

1. Remove the right-hand side camshaft bearings B and G.

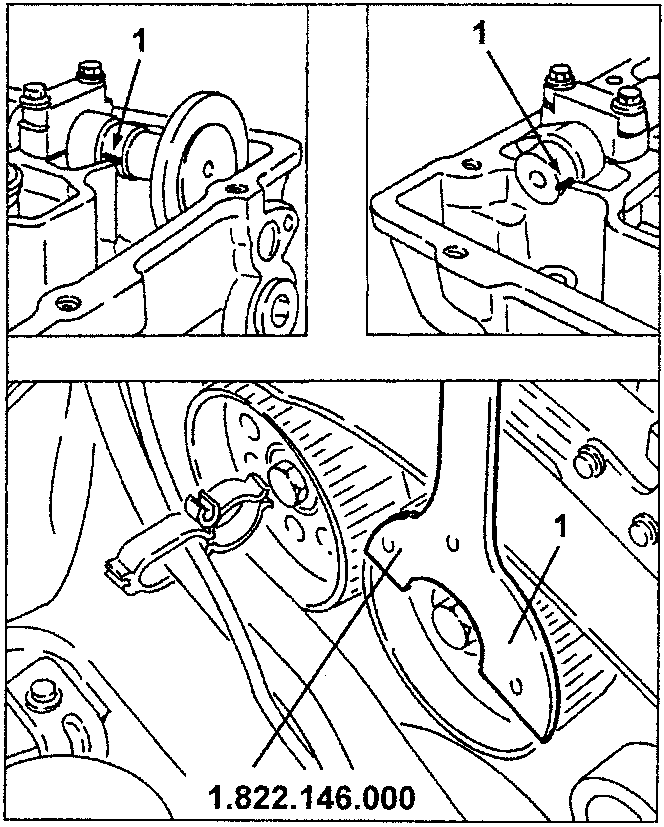

1. Use tool no. 1.822.146.000 and turn each camshaft so that the reference marks on the shafts coincide with the upper cylinder head surface.

NOTE: The reference marks must face the centre of each cylinder head.
