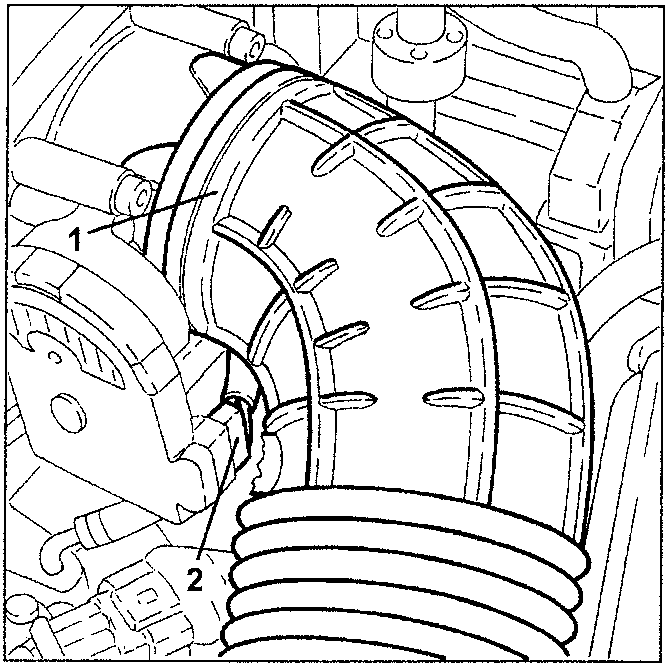

1. Disconnect the corrugated sleeve from the throttle with built-in DVL.
2. Disconnect the throttle and built-in DVL electrical connection.

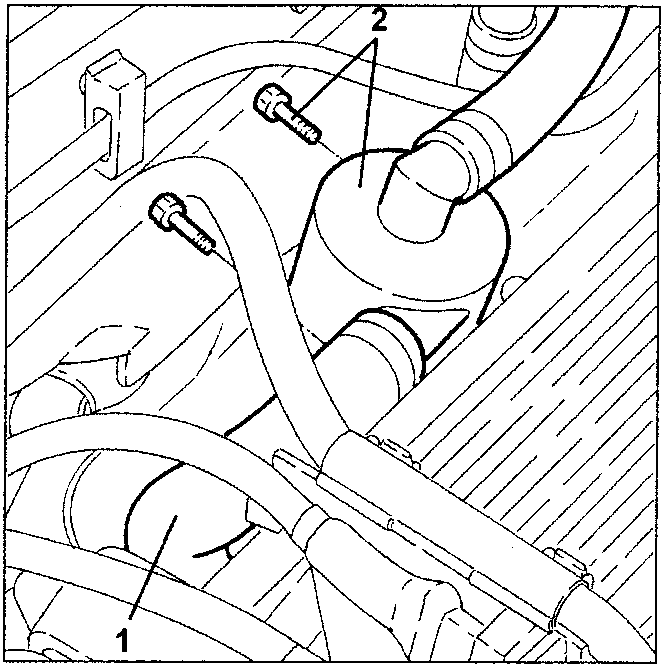

1. Disconnect the oil vapour recovery pipe from the right-hand cylinder head tappet cover.
2. Loosen the fasten screws and move the oil vapour separator from the intake manifold.

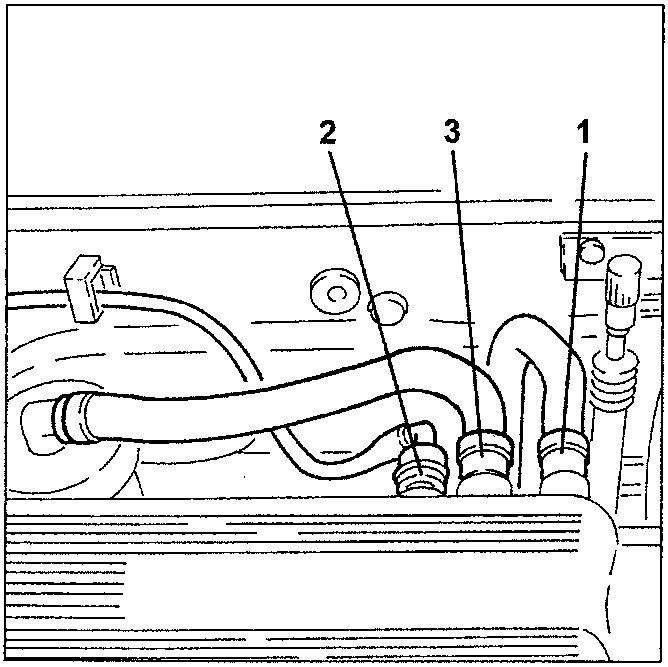

1. Disconnect the brake booster vacuum pipe from the intake manifold.
2. Disconnect the fuel vapour recovery pipe from the intake manifold.
3. Disconnect the oil vapour recirculation pipe from the intake manifold.

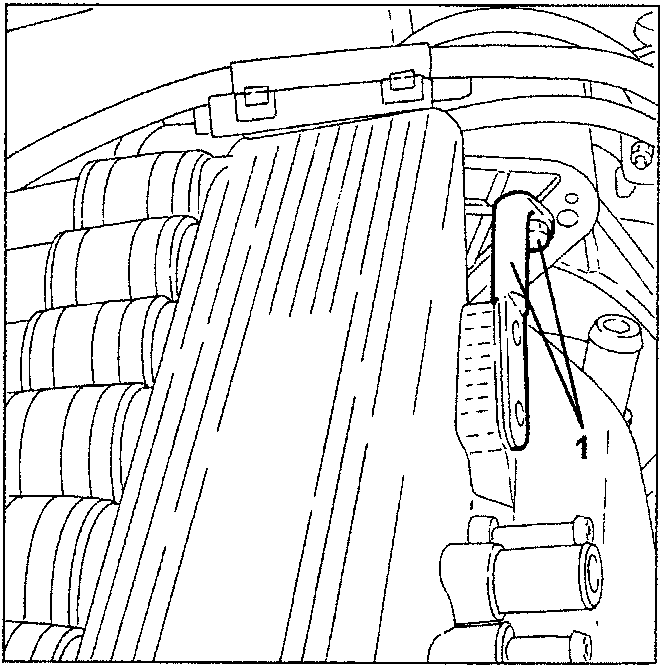

1. Loosen the screw and remove the intake manifold connection from the engine tie-rod.
