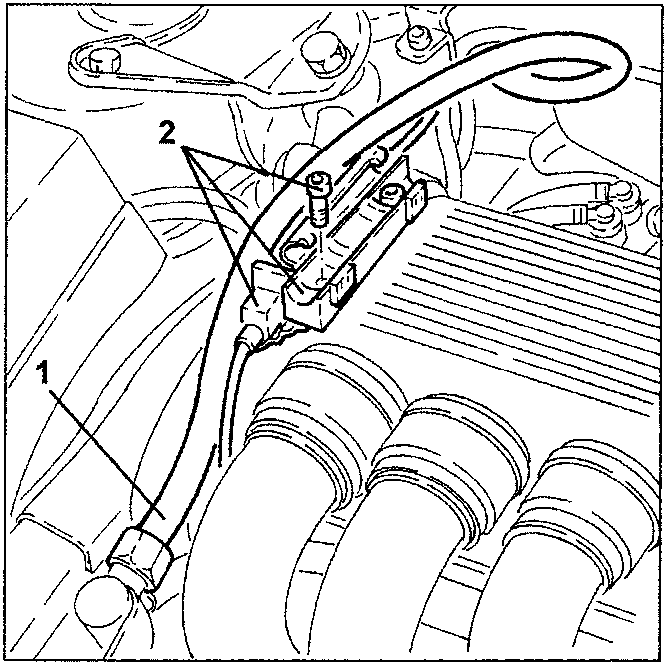

  1. Release the fuel delivery pipe from the bracket.
  2. Loosen the fastening screws and remove the fuel delivery pipe bracket and front knock sensor electrical connection.
Engine diagram showing fuel delivery pipe and bracket

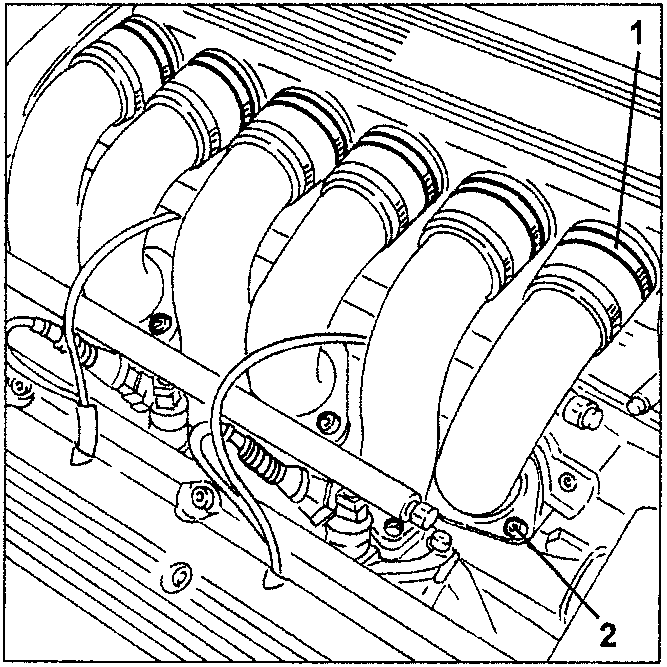

  1. Loosen the intake manifold air feed duct fastening clips.
  2. Loosen the cylinder head feed duct fastening screws.
  • Release the air feed ducts from the intake manifold.
Engine diagram showing air feed ducts and manifold

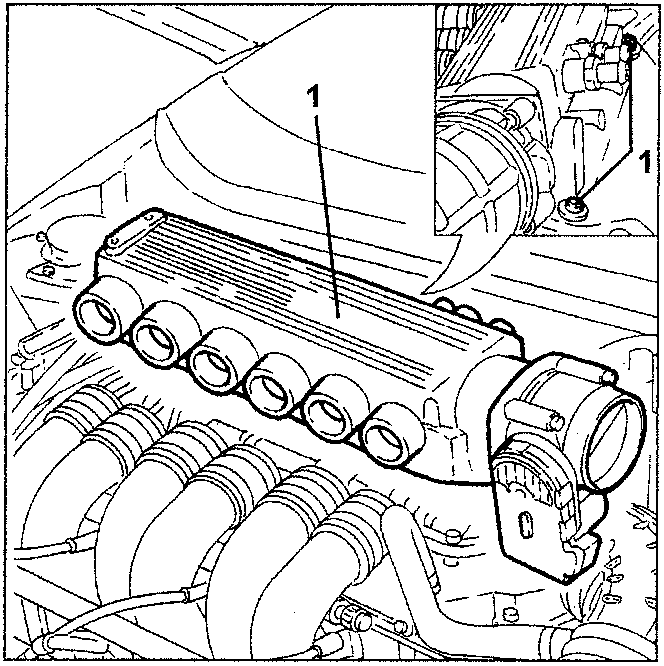

  1. Loosen the fastening screws and remove the intake manifold.
Engine diagram showing intake manifold removal

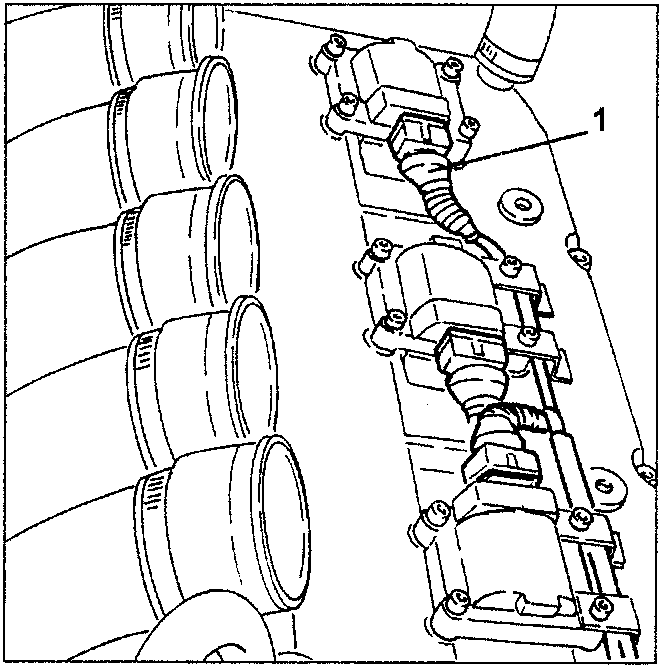

  1. Disconnect the right-hand cylinder head ignition coil electrical connections.
Engine diagram showing ignition coil disconnection
