  1. Loosen the fastening screws and remove the ignition coils from the right-hand cylinder head.

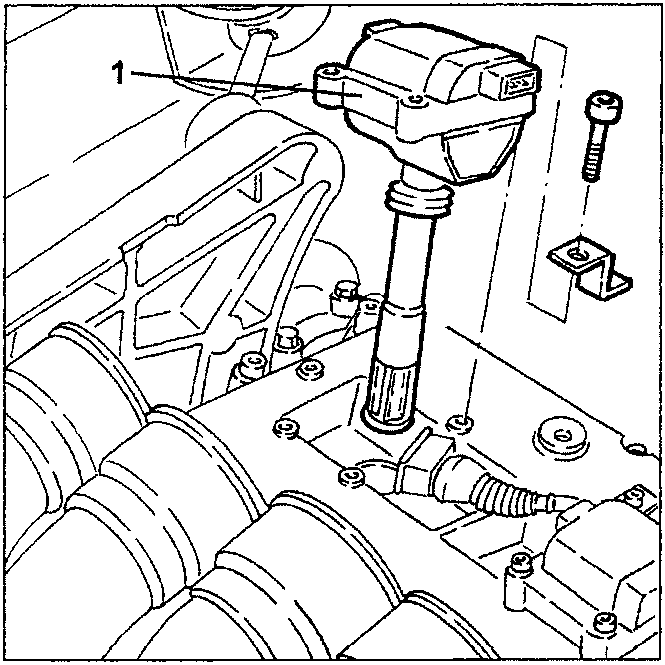

Right-hand cylinder head with ignition coil and fastening screw
  1. Disconnect the left-hand cylinder head ignition coil electrical connections.

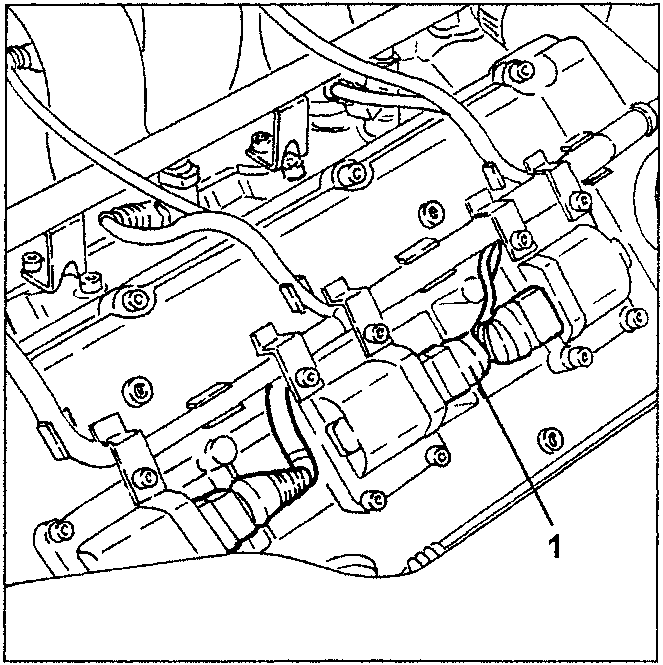

Left-hand cylinder head with ignition coil electrical connections
  1. Loosen the fastening screws and remove the ignition coils from the left-hand cylinder head.
Left-hand cylinder head with ignition coils and fastening screws
  1. Loosen the fastening screws and remove the left-hand cylinder head ignition coils.

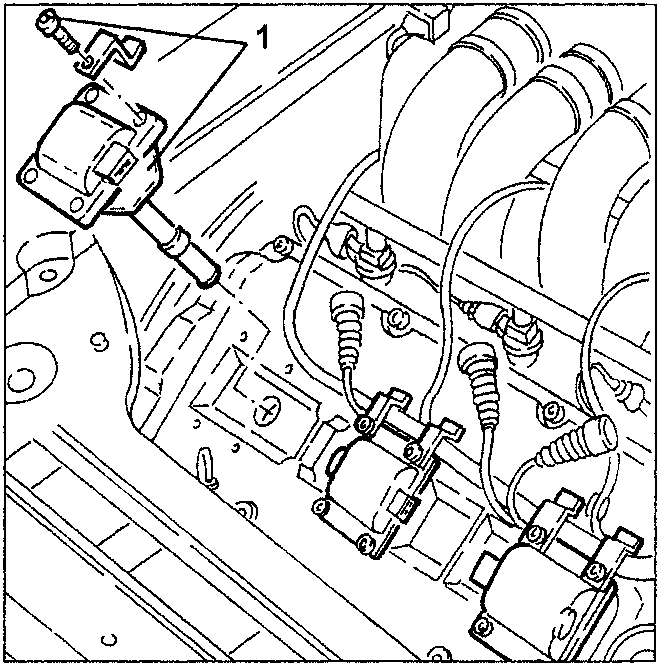

Left-hand cylinder head with ignition coils
