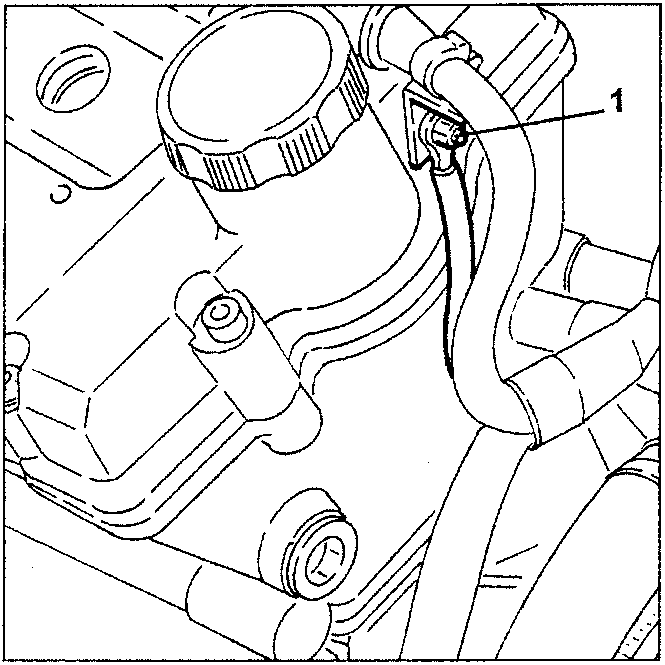

  1. Disconnect the earth wire from the left-hand cylinder head tappet cover.
Diagram showing the left-hand cylinder head tappet cover with an earth wire connected to it, labeled as 1.

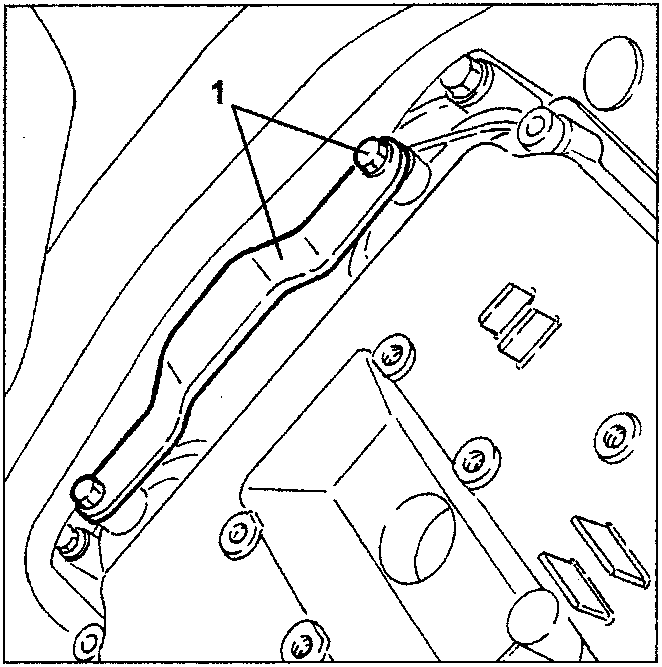

  1. Loosen the fastening screws and remove the timing belt upper guard bracket nut from the left-hand cylinder head.
Diagram showing the left-hand cylinder head with a timing belt upper guard bracket nut, labeled as 1.

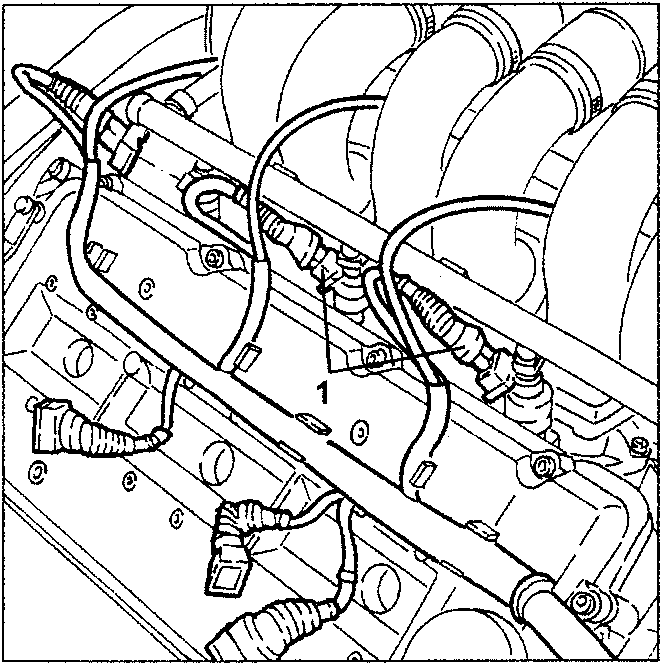

  1. Disconnect the injector electrical connections and move the wiring aside.
Diagram showing the injector electrical connections being disconnected and moved aside, labeled as 1.

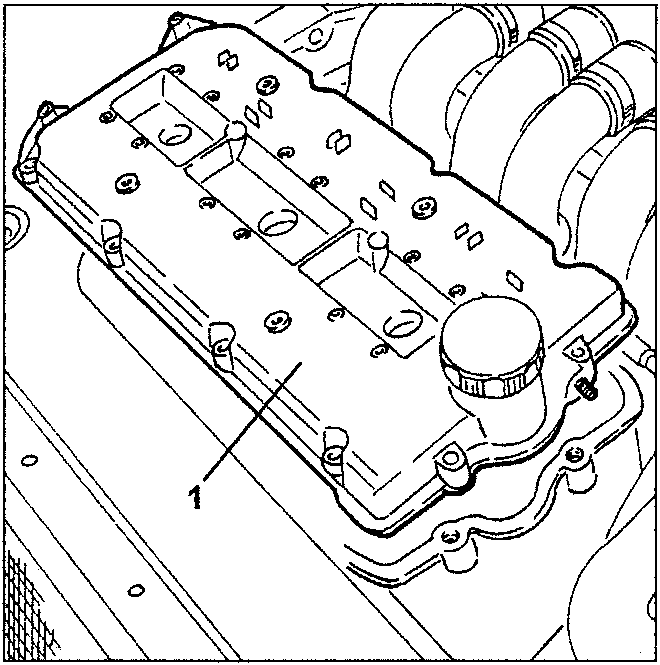

  1. Loosen the fastening screws and remove the cover from the left-hand cylinder head cover.
Diagram showing the left-hand cylinder head cover being removed, labeled as 1.
