INJECTORS

REMOVING/REFITTING

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.
  1. Remove the left hand engine compartment trim.

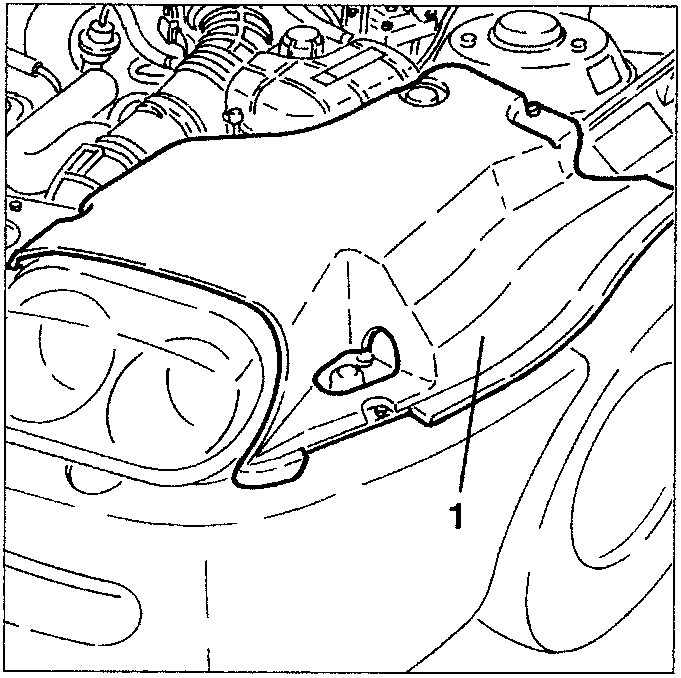

Engine compartment trim removal
  1. Disconnect the fuel vapour recovery pipe leading from the right cylinder head from the corrugated sleeve.
  2. Disconnect the electrical connection from the intake air temperature sensor.
  3. Disconnect the air takeoff pipe for the constant idle speed device from the corrugated sleeve.
  4. Disconnect the electrical connection from the throttle potentiometer.

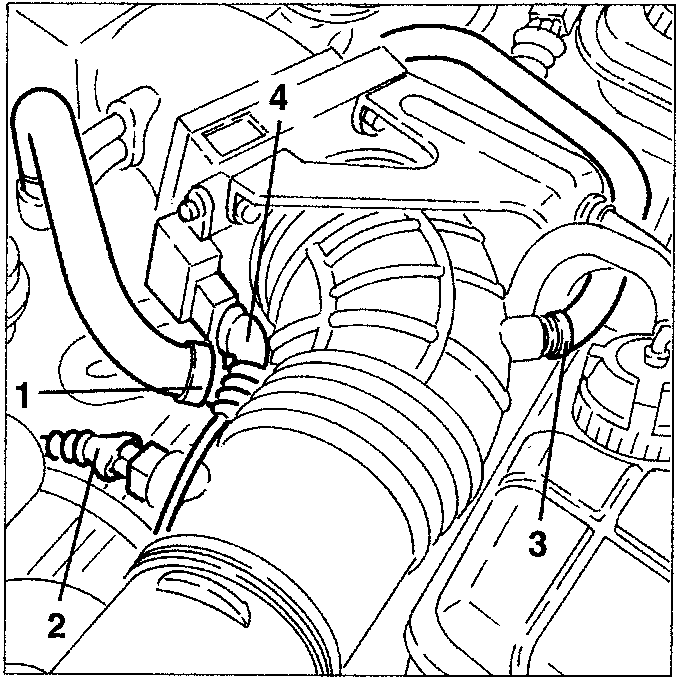

Disconnecting fuel and electrical connections
  1. Remove the button fastening the first section of the corrugated sleeve to the resounder.
  2. Slacken the two fastening clamps and remove the second section of the corrugated sleeve complete with resounders.

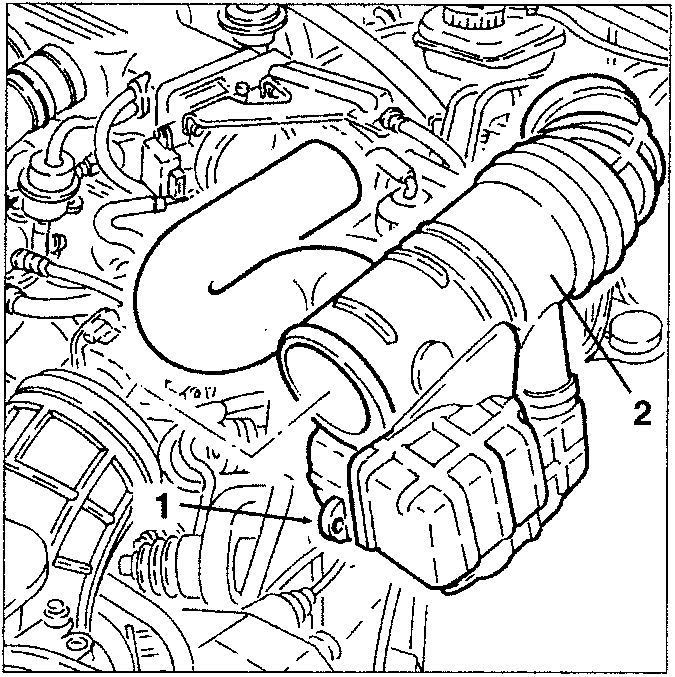

Removing corrugated sleeve sections
  1. Disconnect the electrical connections from the injectors
  2. Disconnect the fuel delivery pipe from the distributor manifold.
  3. Disconnect the excess fuel return pipe from the pressure regulator.
  4. Disconnect the vacuum takeoff pipe from the pressure regulator.

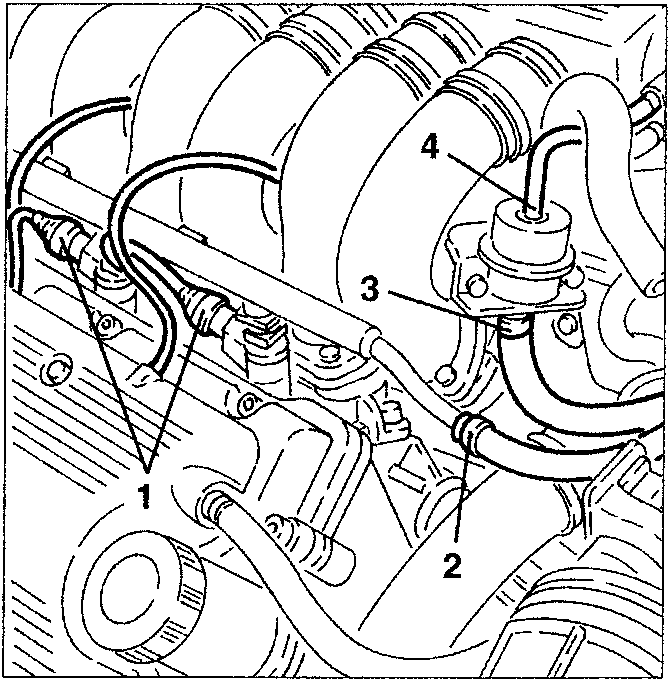

Disconnecting pipes and electrical connections
