Variants – 3.0 V6 24VInjectors · page 2 of 2

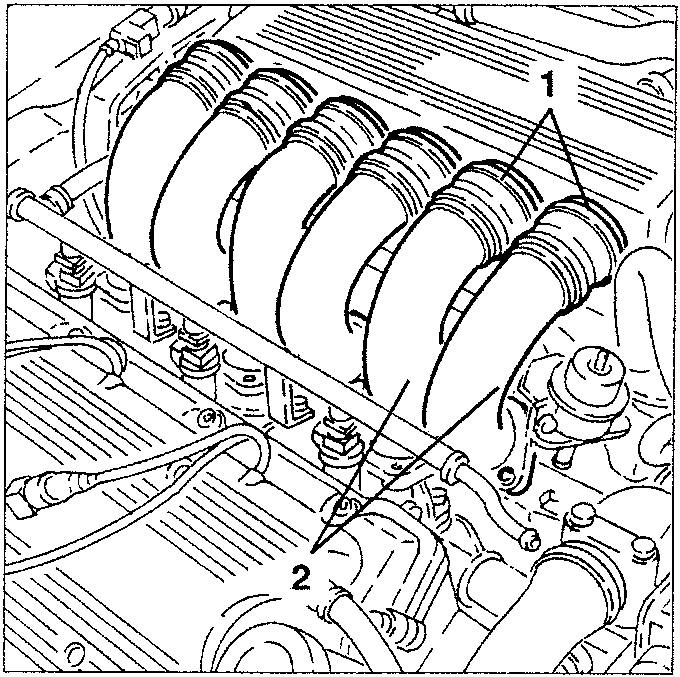

  1. Slacken the clamps fastening the supply ducts to the intake box.
  2. Slacken the fastening screws and remove the supply ducts.
Engine with supply ducts and intake box

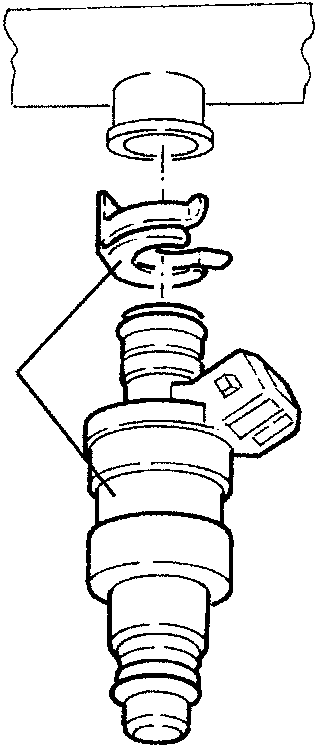

  1. Working on the bench, remove the safety catches and remove the injectors from the distributor manifold.
Injector with safety catch removed

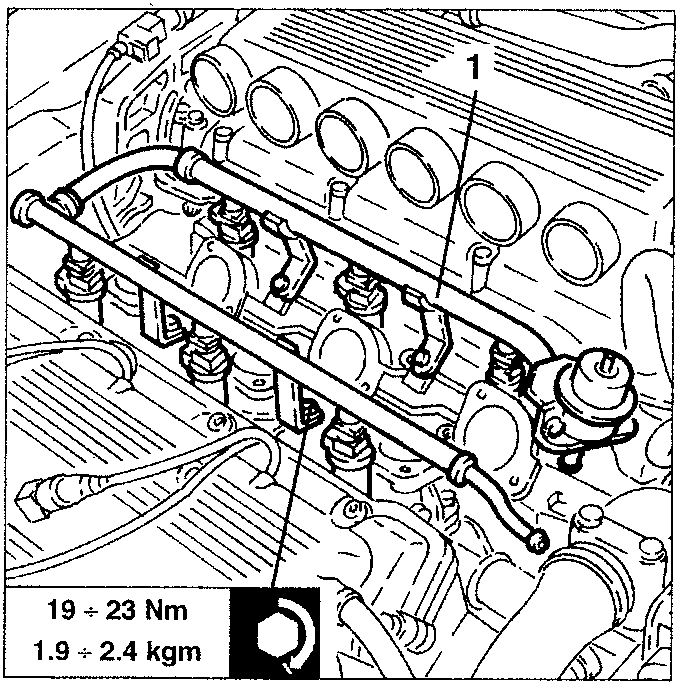

  1. Slacken the fastening screws and remove the distributor manifold complete with pressure regulator and injectors.
Engine with distributor manifold and pressure regulator

19 ÷ 23 Nm
1.9 ÷ 2.4 kgm
