Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)13 · Variants – Euro 3 models
13 · General

Air capacity chamber (page 2 of 2)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Air intake system (24V)
Variants – Euro 3 modelsAir capacity chamber · page 2 of 2
  1. Loosen the collar and disconnect the oil vapour recovery pipe from the air capacity chamber.

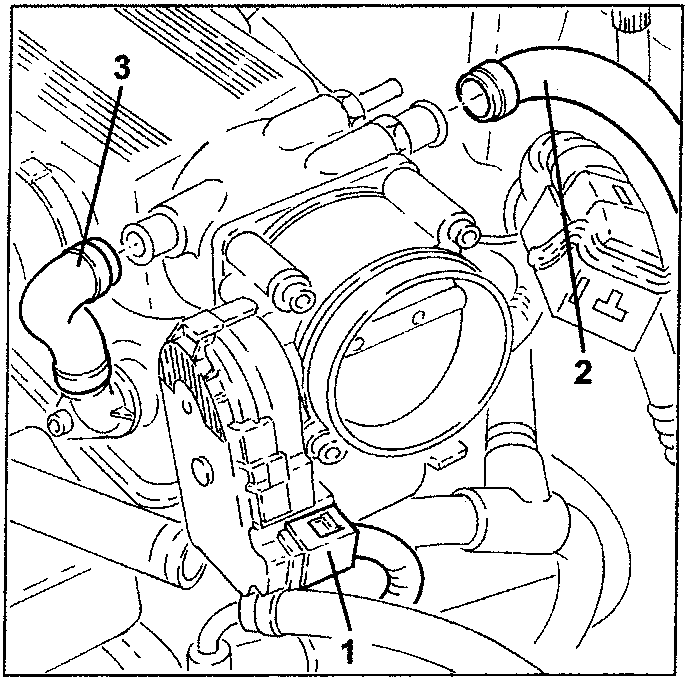

Air capacity chamber with oil vapour recovery pipe disconnected
  1. Oil vapour recovery pipe
  2. Air capacity chamber
  3. Collar
  4. Unscrew the bolt and disconnect the earth lead from the air capacity chamber.

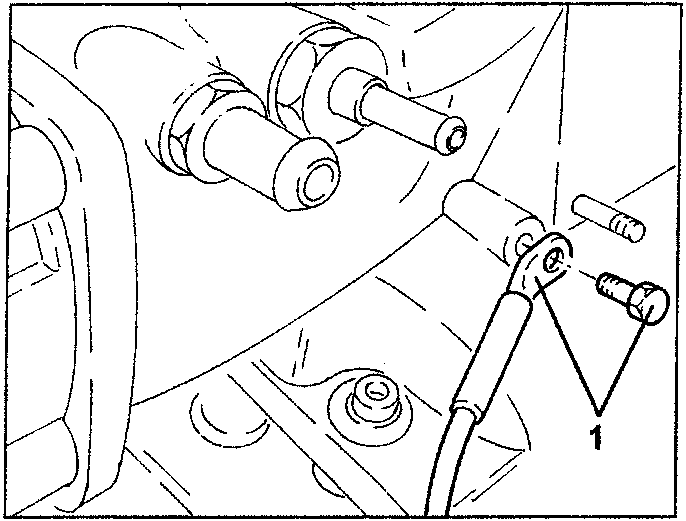

Earth lead disconnected from air capacity chamber
  1. Earth lead
  2. Loosen the bolts securing the intake ducts to the manifolds.

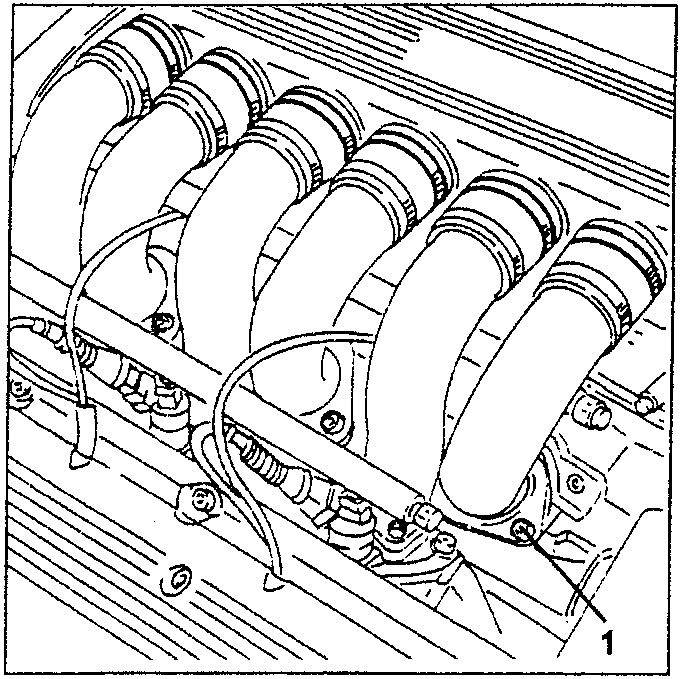

Intake ducts secured to manifolds
  1. Bolt
  2. Intake duct
Air capacity chamber and engine vibration-proof bar mount
  1. Reinforcement
  2. Unscrew the fastenings and remove the reinforcement between the air capacity chamber and the engine vibration-proof bar mount.

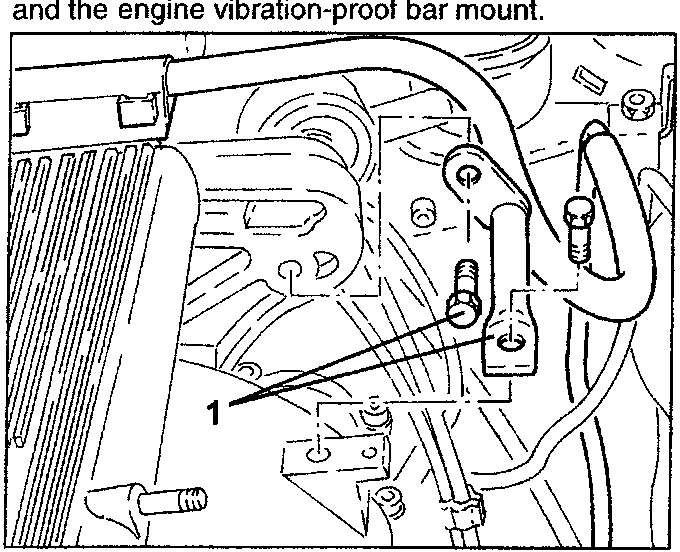

Air capacity chamber and engine vibration-proof bar mount
  1. Fastening
  2. Loosen the collar securing the air intake duct retaining collars to the air capacity chamber.

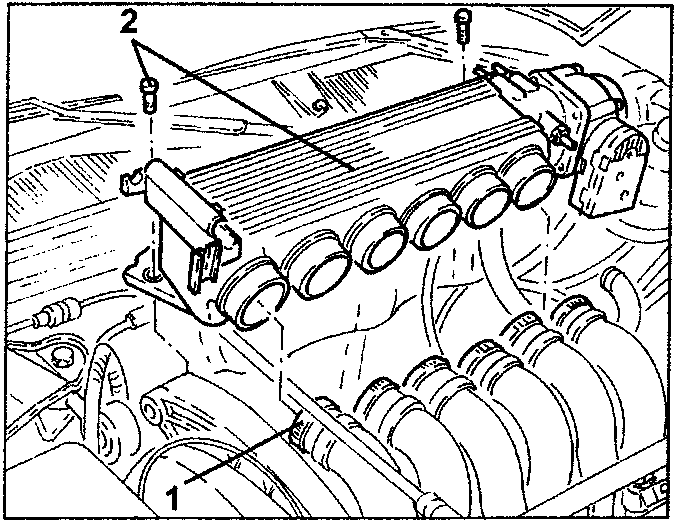

  3. Unscrew the bolts and remove the air capacity chamber.
