AIR CAPACITY CHAMBER

REMOVING/REFITTING

  • Ensure the ignition key is turned OFF, then disconnect the battery terminal (-).

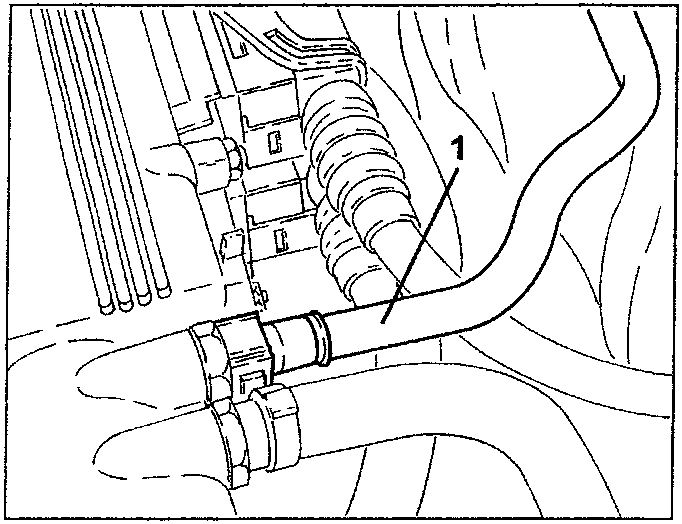

  1. Disconnect the fuel vapour recovery pipe from the air capacity chamber and move to one side.
Air capacity chamber with fuel vapour recovery pipe disconnected

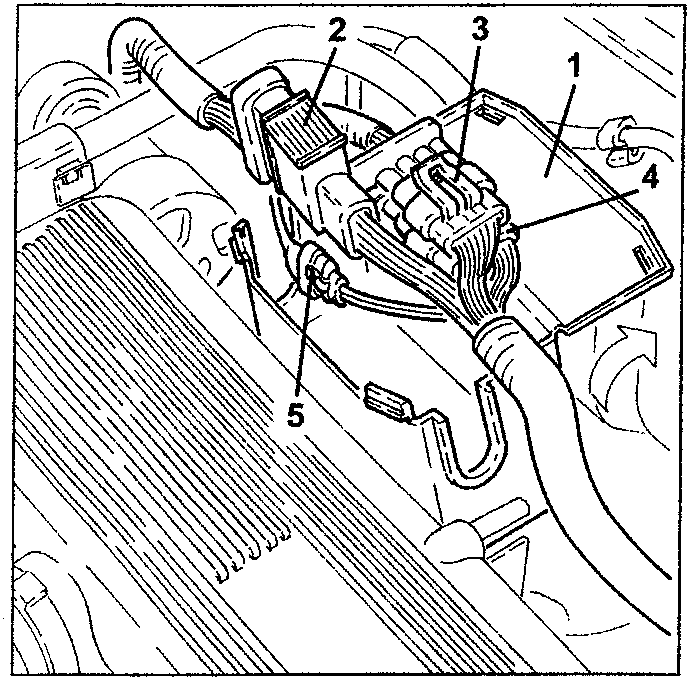

  • Remove the injection-ignition control unit (see specific paragraph).
  1. Open the connection carrier box.
  2. Disconnect the engine electrical wiring junction.
  3. Disconnect the electrical connection of the left lambda sensor downstream of the catalytic converter (black).
  4. Disconnect the electrical connection of the right lambda sensor downstream of the catalytic converter (grey).
  5. Disconnect the electrical connection of the front knock sensor (black).
Injection-ignition control unit with electrical connections

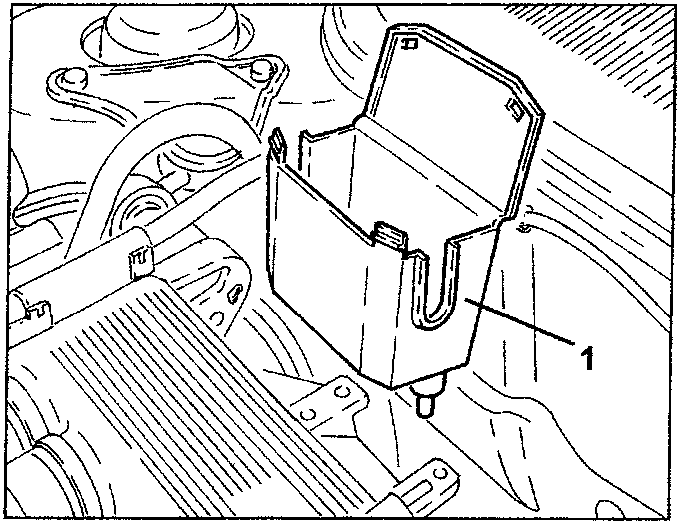

  1. Remove the connection carrier box.
Connection carrier box being removed

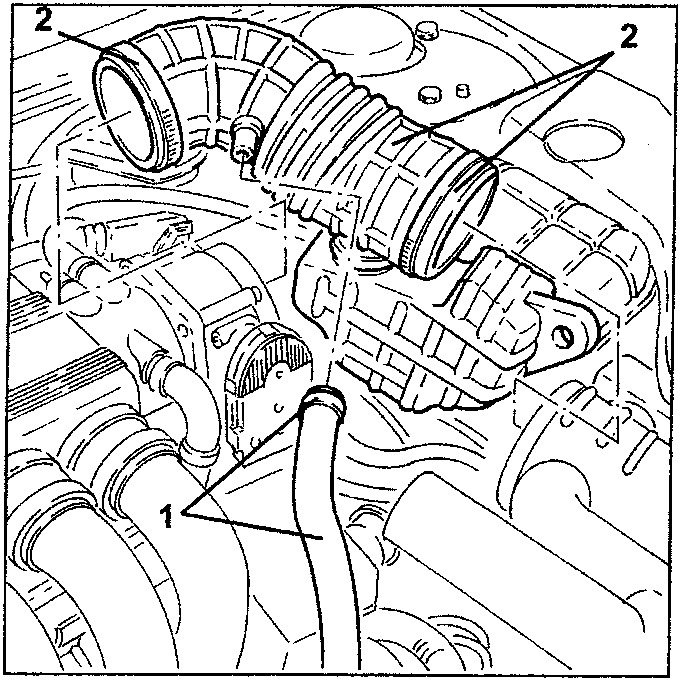

  1. Loosen the collar and disconnect the engine oil vapour recirculation pipe from the corrugated sleeve.
  2. Loosen the collars and remove the corrugated sleeve complete with resonator.
Corrugated sleeve with resonator being removed
  1. Disconnect the electrical connection from the motorised throttle body.
  2. Disconnect the brake servo vacuum intake pipe from the air capacity chamber.
