INJECTION - IGNITION CONTROL UNIT

REMOVING/REFITTING

  • Ensure the ignition key is turned OFF, then disconnect the battery negative terminal (-).
  1. Disconnect the injection-ignition control unit electrical connections.

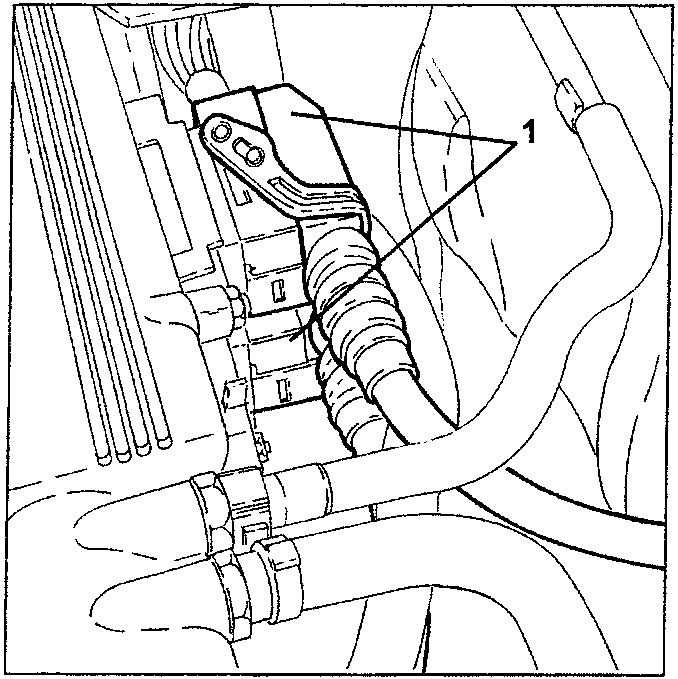

Injection-ignition control unit electrical connections
  1. Unscrew the nuts and remove the injection - ignition control unit.

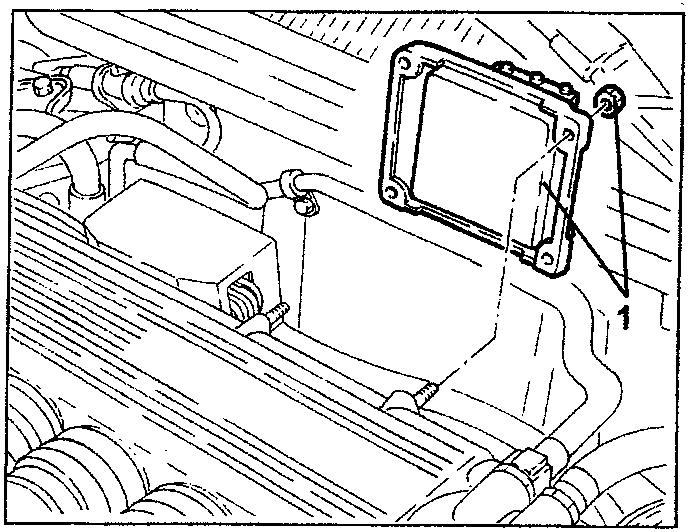

Injection-ignition control unit mounted on engine
