Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)13 · Variants – Euro 3 models
13 · General

Catalytic converters

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Exhaust system (24V) › Catalytic converters
Variants – Euro 3 modelsCatalytic converters

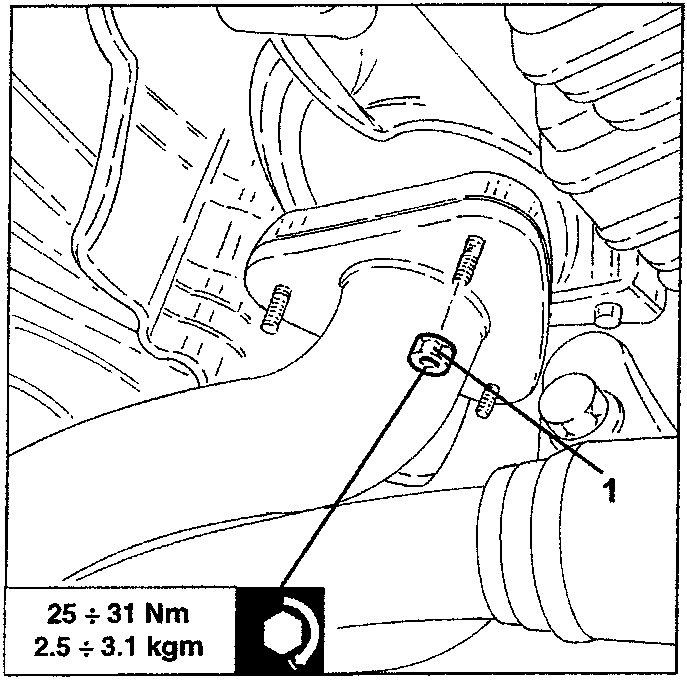

  1. Undo the bolts securing the front section of the exhaust pipe to the right exhaust manifold with built-in catalytic preconverter.
Exhaust pipe bolted to right manifold

25 ÷ 31 Nm
2.5 ÷ 3.1 kgm

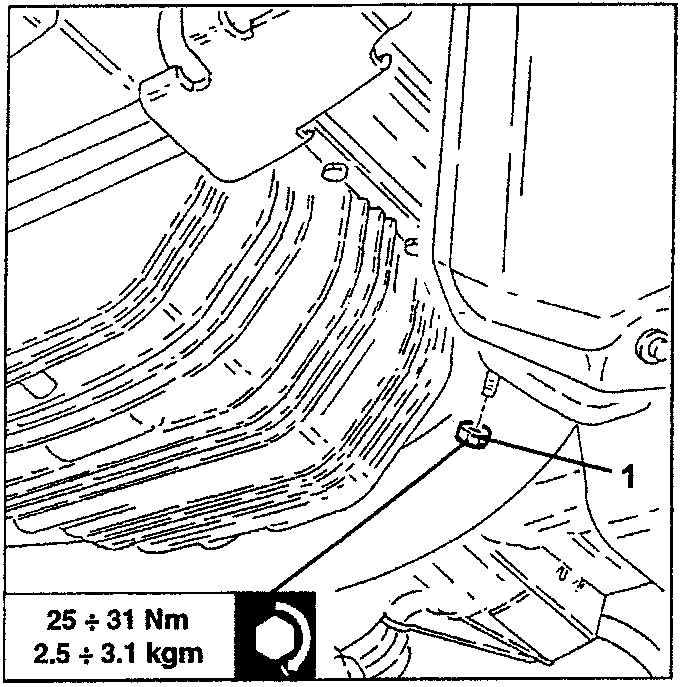

  1. Undo the nuts securing the front exhaust pipe section to the left exhaust manifold with built-in catalytic preconverter.
Exhaust pipe bolted to left manifold

25 ÷ 31 Nm
2.5 ÷ 3.1 kgm

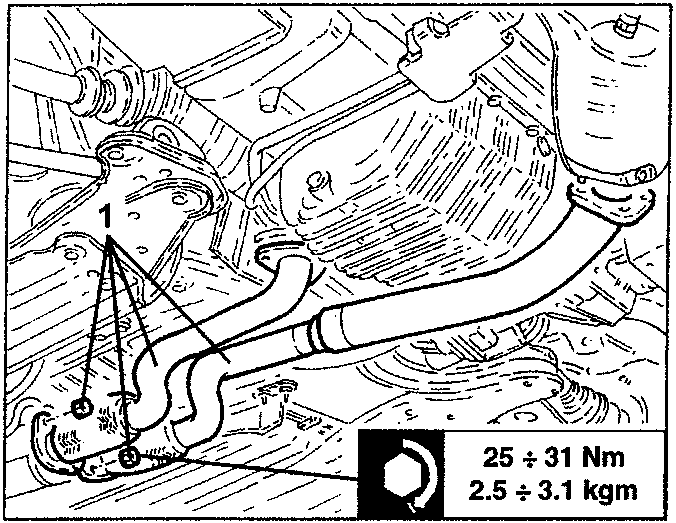

  1. Undo the nuts securing the front exhaust pipe sections to the catalytic converters, then remove.
    - Remove the gaskets.
Exhaust pipe nuts near catalytic converters

25 ÷ 31 Nm
2.5 ÷ 3.1 kgm

CATALYTIC CONVERTERS

REMOVING/REFITTING

  • Place the vehicle on a lift.

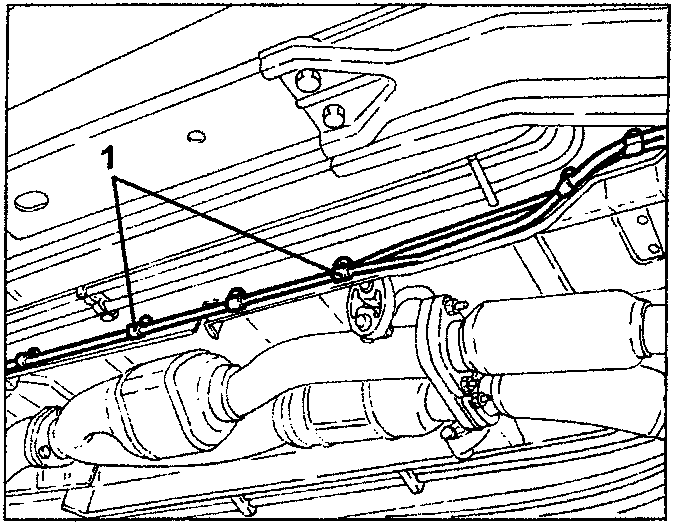

  1. Releases the electrical wiring of lambda sensors downstream of the catalytic converters from their underbody clips.
Catalytic converters with wiring
