Front exhaust pipe sections

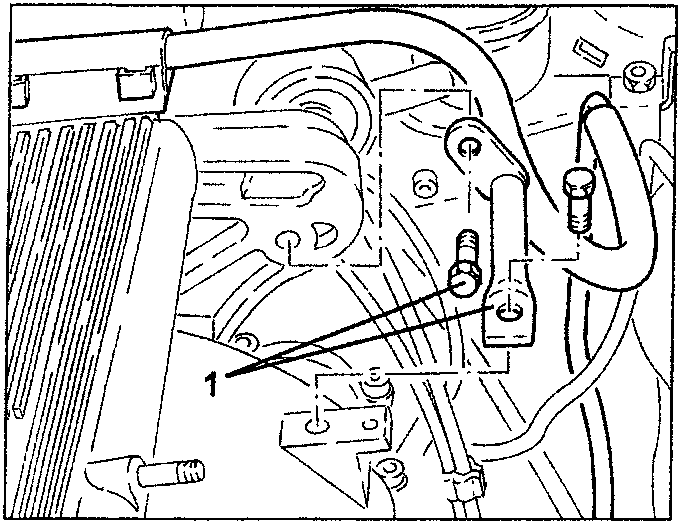

1. Undo the bolts and remove the reinforcement between air capacity chamber and engine vibration-proof bar mount.

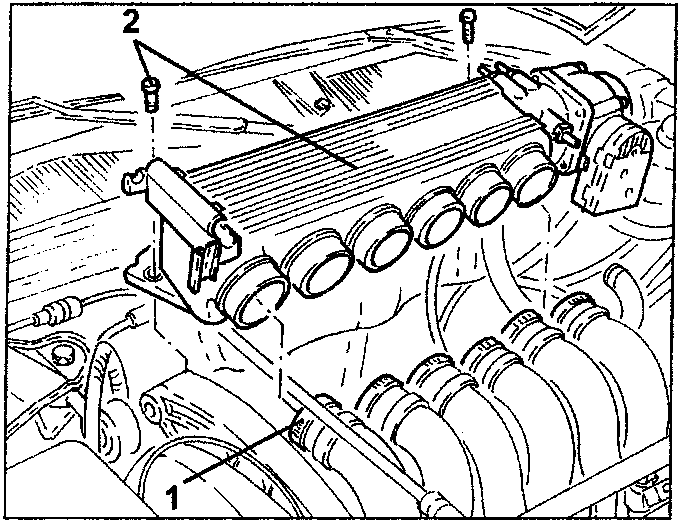

1. Loosen the collars securing the air intake ducts to the air capacity chamber.
2. Undo the bolts and remove the air capacity chamber.

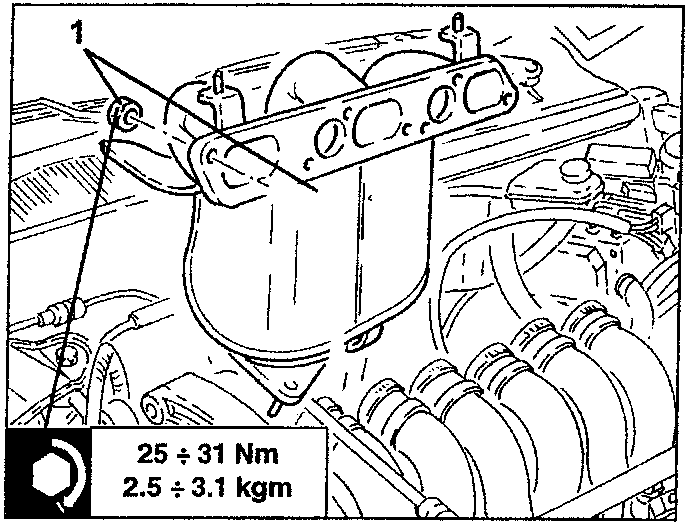

1. Undo the nuts and remove the right exhaust manifold with built-in catalytic preconverter.

• Remove the gasket.

25 ÷ 31 Nm
2.5 ÷ 3.1 kgm

FRONT EXHAUST PIPE SECTIONS

REMOVING/REFITTING

• Position the vehicle on a lift.

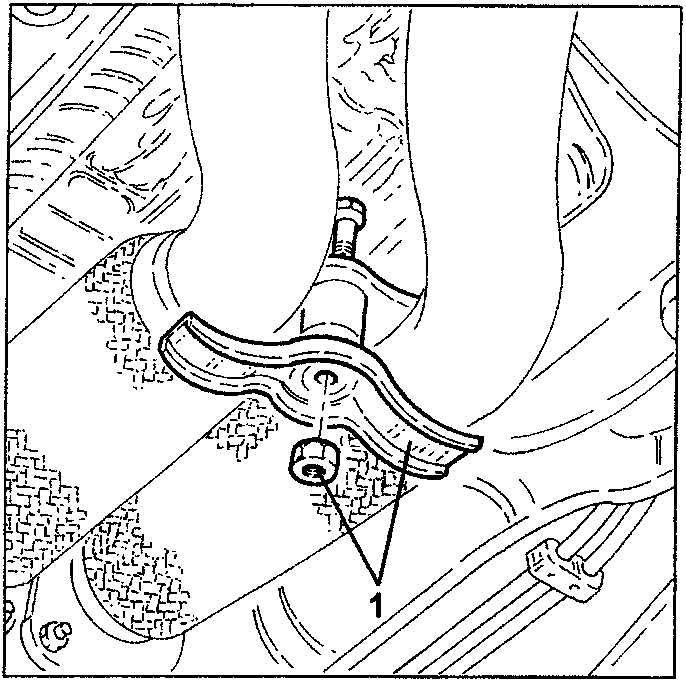

1. Undo the bolt and remove the bracket joining front sections of the exhaust pipe.
