CONDENSER

Removal

  • Drain the coolant fluid; - Set the car on a lift. - Remove the front bumper (see GROUP 70).
  1. Remove the condenser support bracket.

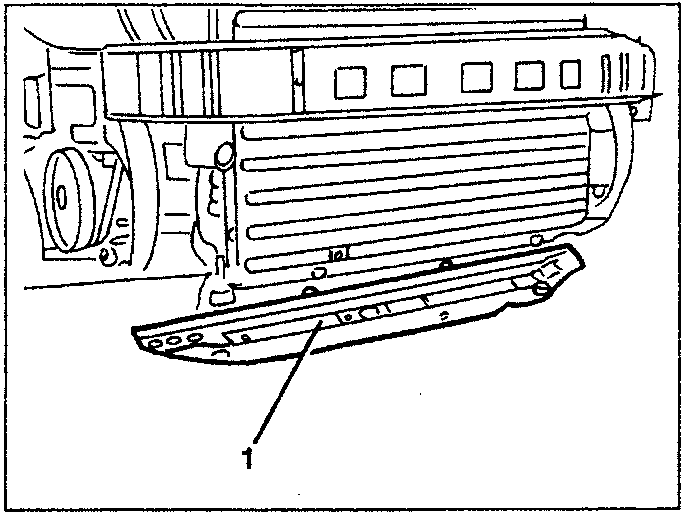

Condenser with support bracket
  1. Disconnect the coolant fluid pipe leading to the compressor
  2. Disconnect the pipe leading to the evaporator.

40 ÷ 44 Nm
4.1 ÷ 4.5 kgm

17 ÷ 19 Nm
1.7 ÷ 1.9 kgm

Refitting

  • Take care not to damage the condenser thermal exchange fins. - Lubricate the fittings with the specified oil and tighten them to the specified torque.

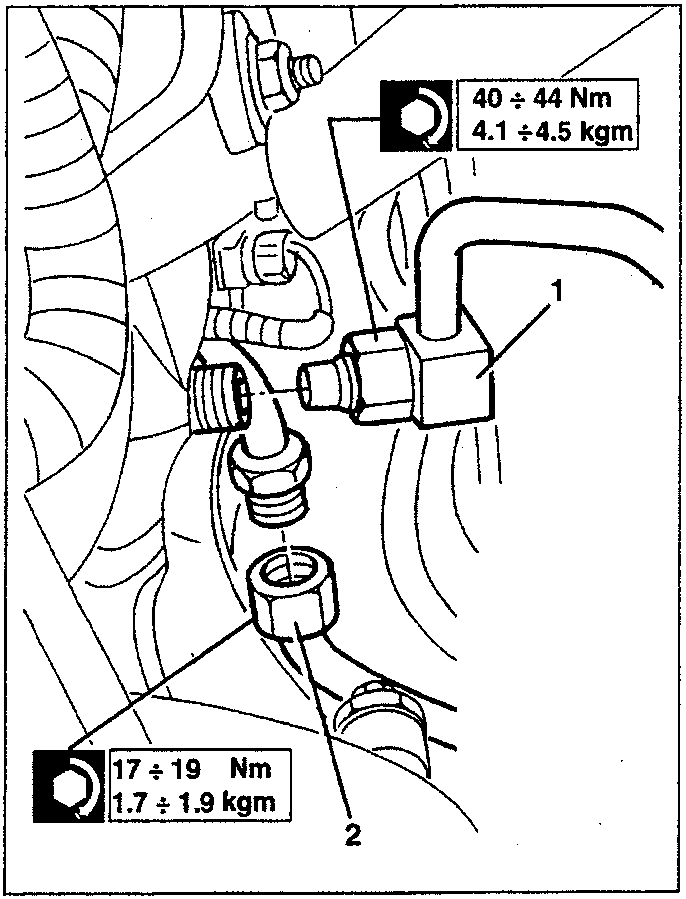

Condenser pipe connections

DRIER FILTER

Removal

  • Drain the coolant fluid. - Set the car on a lift.
  1. Disconnect the pipe leading from the compressor.
  2. Disconnect the pipe leading from the evaporator.
  3. Slacken the fastening clamp.
  4. Remove the filter.

40 ÷ 44 Nm
4.1 ÷ 4.5 kgm

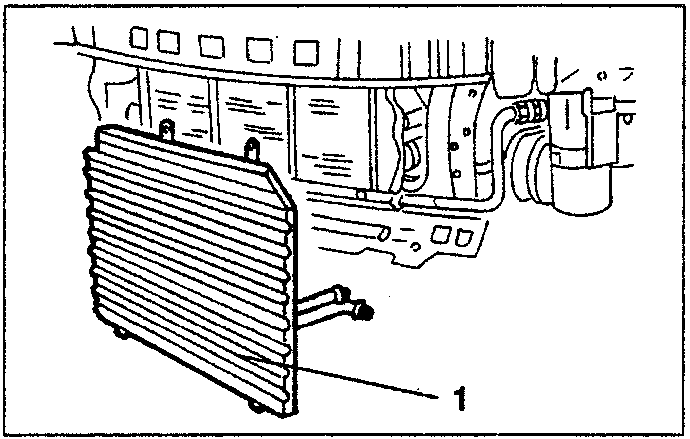

Condenser removal

DRIER FILTER

Refitting

  • Take care not to damage the condenser thermal exchange fins. - Lubricate the fittings with the specified oil and tighten them to the specified torque.

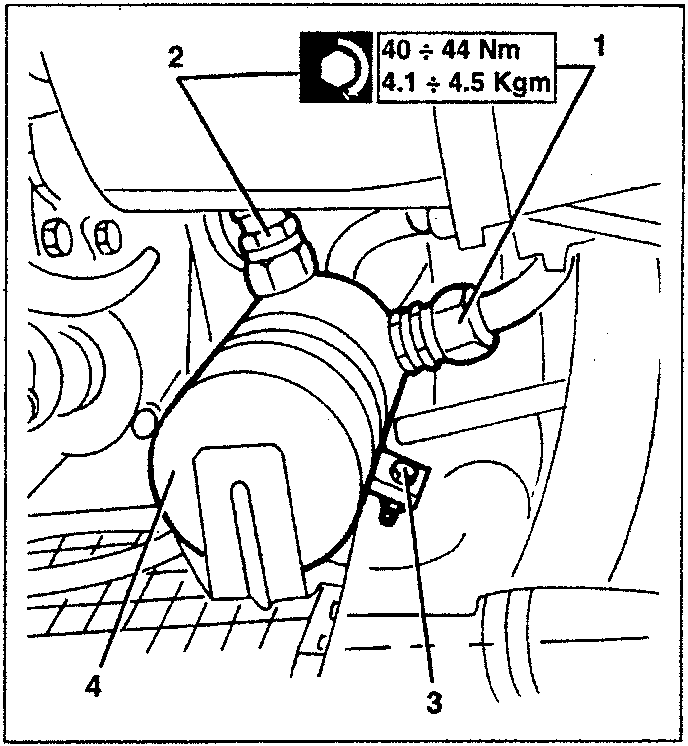

Drier filter installation
