Variants – heating and air conditioning (2.0 V6 Turbo and 3.0 V6 24V)Refitting

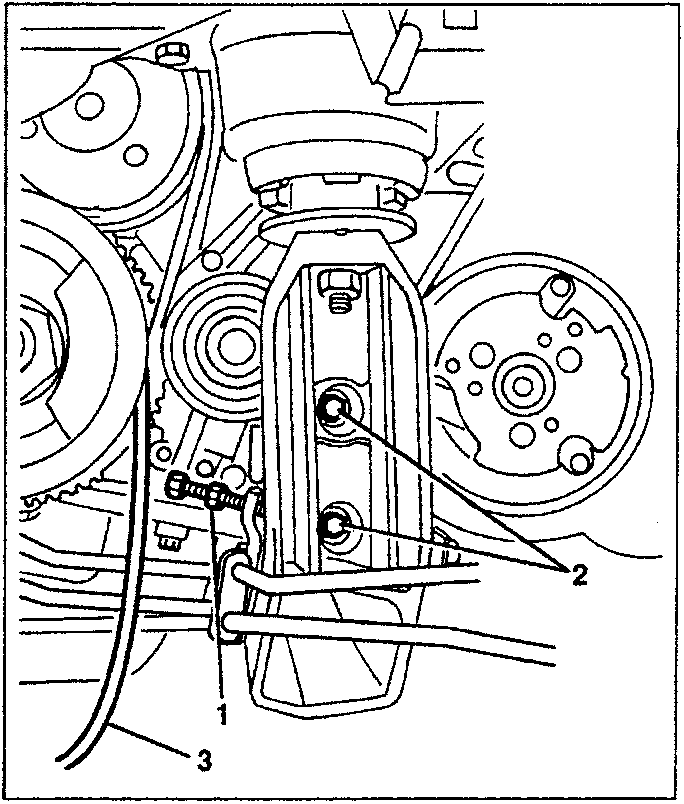

  1. Slacken the adjustment locknut of the belt tensioner guide pulley.
  2. Through the engine mount holes, slacken the two screws fastening the belt tensioner guide pulley.
  3. Remove the compressor drive belt.
Diagram showing belt tensioner guide pulley with labeled parts 1, 2, and 3.

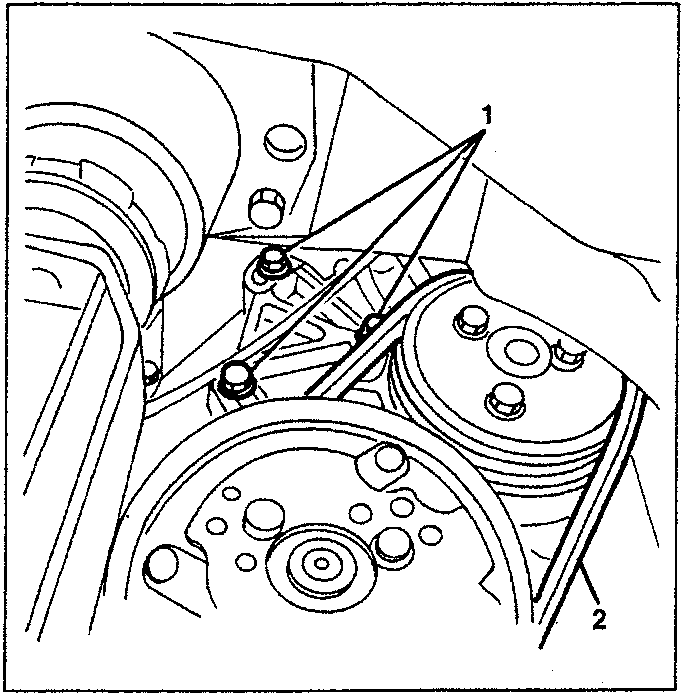

  1. Slacken the screws fastening the power steering pump bracket
  2. Remove the power steering pump belt.
Diagram showing power steering pump with labeled parts 1 and 2.

– Raise the power steering pump up as far as possible and lock it in this position to facilitate removal of the compressor.

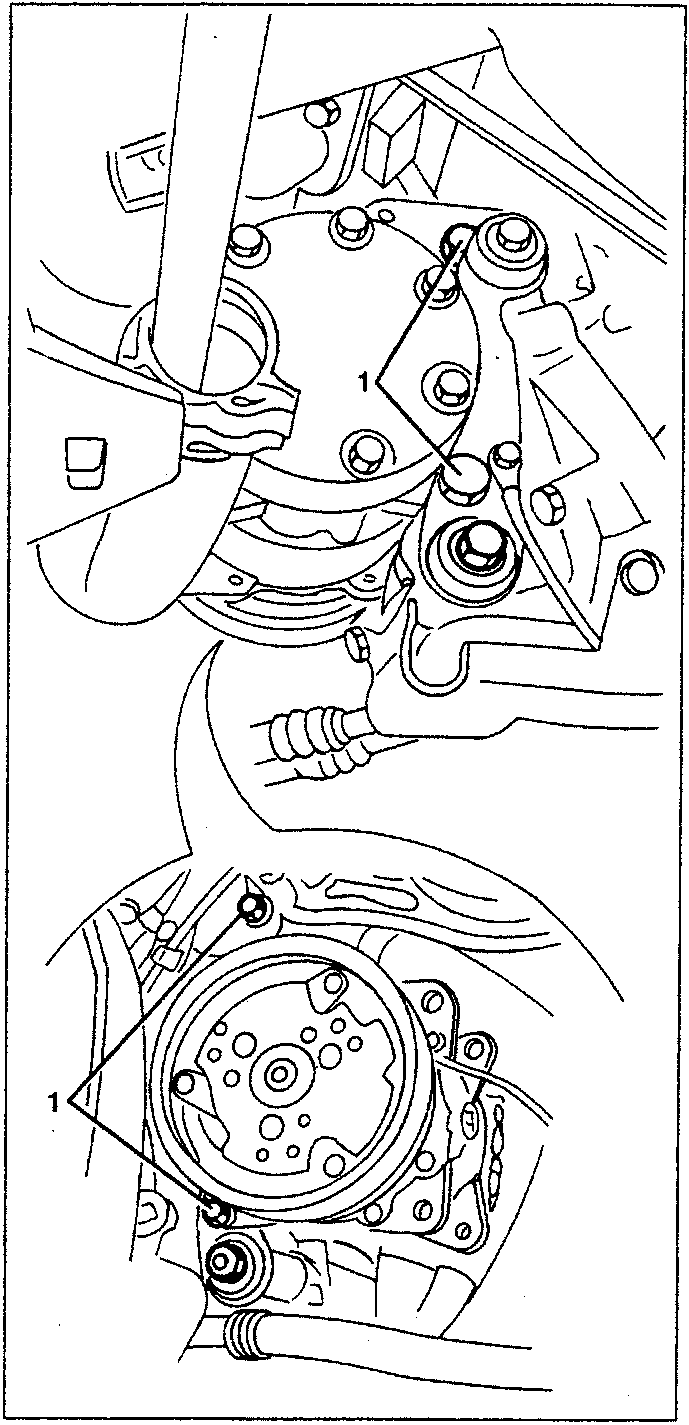

  1. Slacken the four screws (two per side) and remove the compressor
Diagram showing compressor with labeled part 1.

Refitting

  • Tension the power steering pump belt and compressor drive belt (see GROUP 00).
  • Lubricate the fittings with the specified oil.
  • Tighten to the specified torque where applicable
