Aston Martin DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning (1994-1998)03 · Body and trim
03 · Body & interior

Roof Component Location (page 2 of 2)

Make
Aston Martin
Model
DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
Year
1994–1998
Section
Volante roof
Body and trimRoof Component Location · page 2 of 2

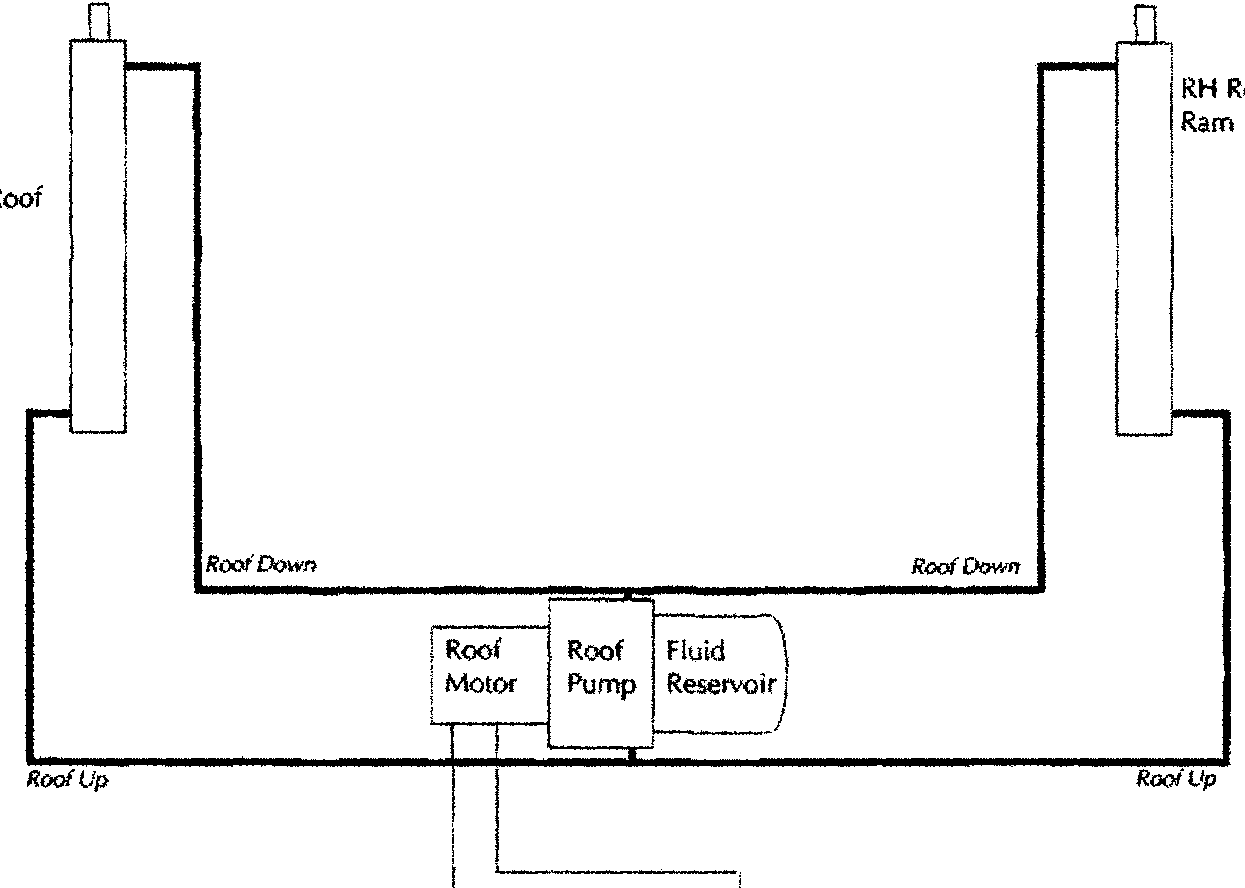

Schematic diagram of the roof control system showing components like LH Roof Ram, RH Roof Ram, Roof Motor, Roof Pump, Fluid Reservoir, and relays for roof up/down.

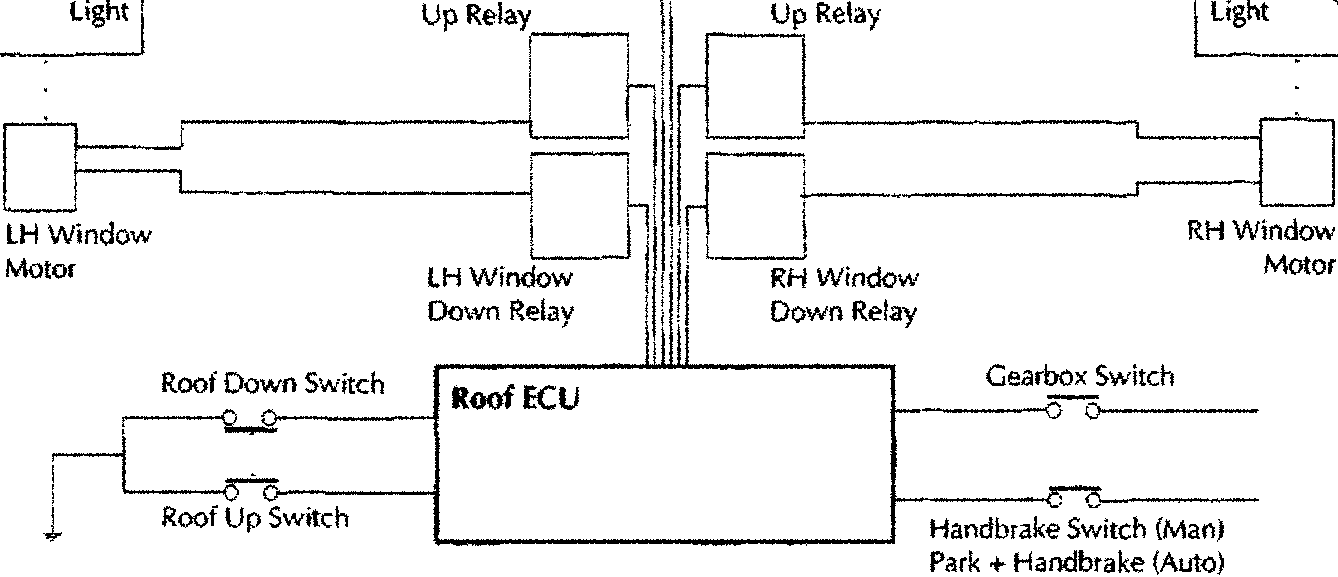

Control schematic diagram showing the Roof ECU, switches (Roof Up Switch, Roof Down Switch, Gearbox Switch, Handbrake Switch), relays (Roof Up Relay, Roof Down Relay, LH/ RH Window Up/Down Relays), and motors (LH/RH Window Motor).

Figure 2. Roof System - Control Schematic Diagram
