Wiring Diagram Sheet 19: Console
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – up to 97 MY › Wiring Diagram Sheet 19: Console
ElectricsWiring Diagram Sheet 19: Console
Wiring Diagram Sheet 19: Console

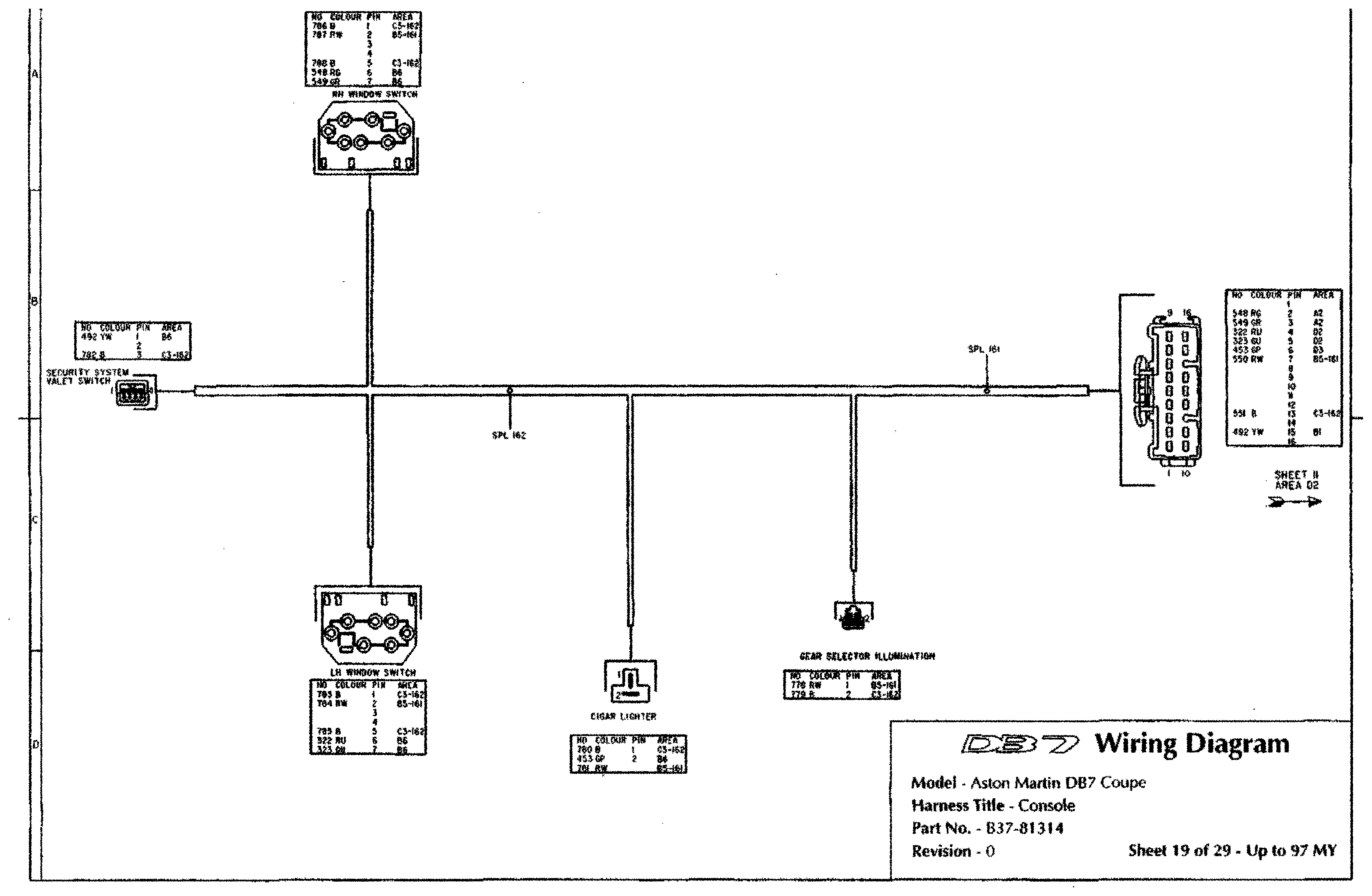

Harness: Console. Drawing part no. B37-81314, revision 0. Sheet 19 of 29, up to 97 MY (DB7 Coupe).

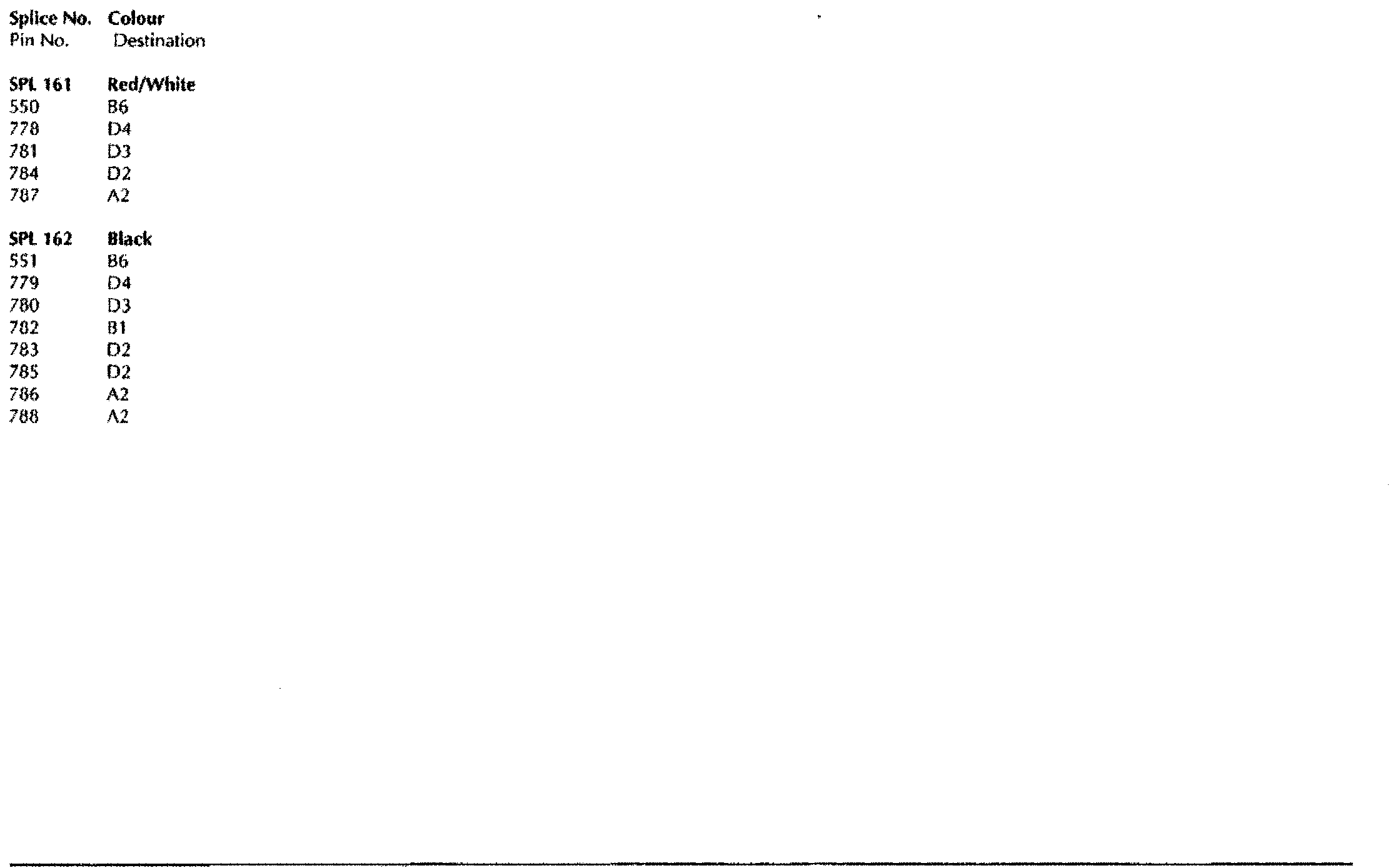

Sheet 19 splices
