- Mirrors › Specifications
01 Body systemSpecifications · page 1 of 2
Specifications
| Torque Figures | ||
|---|---|---|
| Description | Nm | lb. / ft. |
| Mirror Mounting | 20-25 | 15-18.5 |
Maintenance
| Repair Operation Time (ROT) | |
|---|---|
| Item | Code |
| Remove and install | LH 01.09.AB RH 01.09.BB |
Door Mirrors

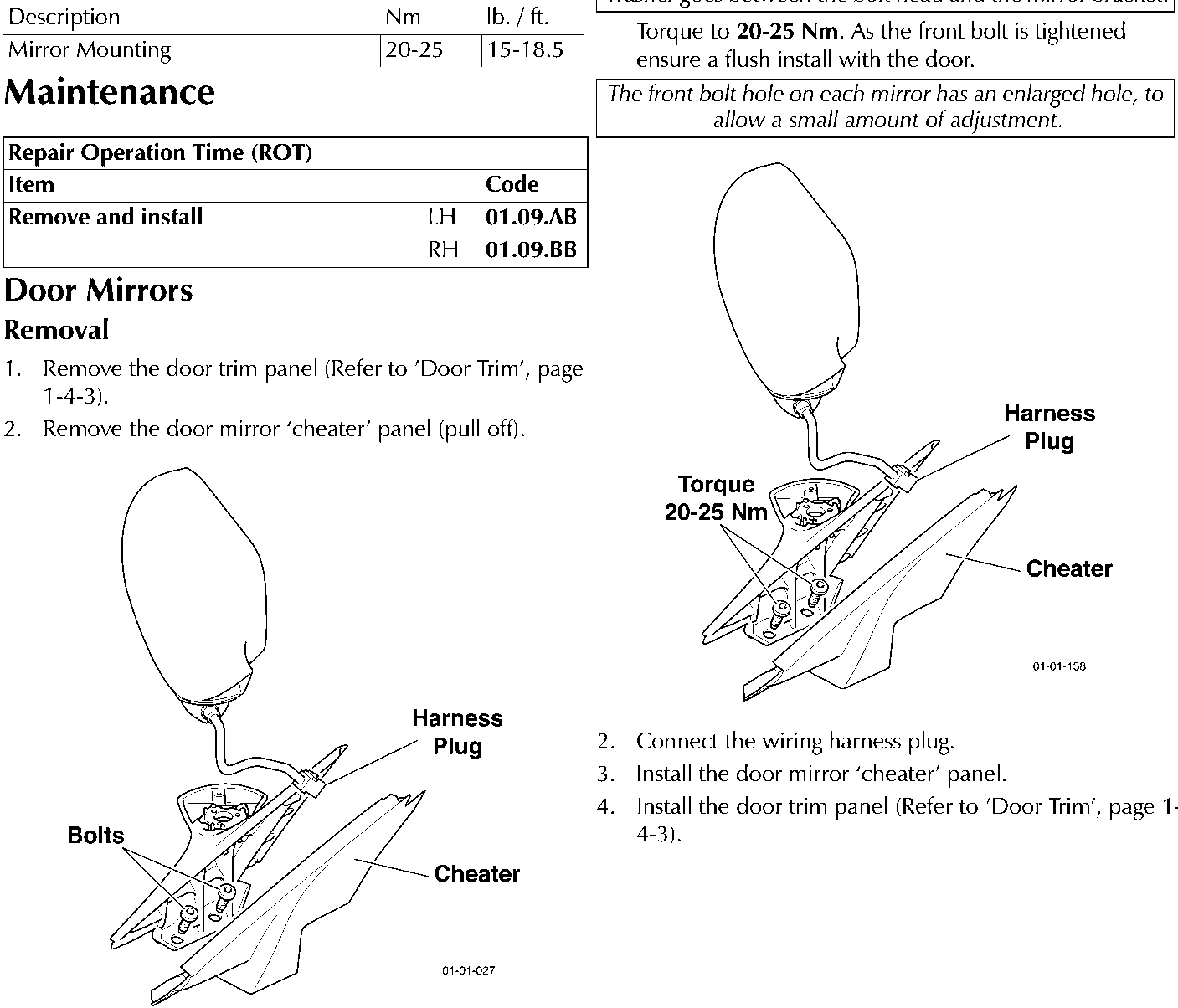

Removal
- Remove the door trim panel (Refer to 'Door Trim', page 1-4-3).
- Remove the door mirror ‘cheater’ panel (pull off).
- Disconnect the wiring harness plug.
- Remove bolts (x2) and withdraw mirror.
Installation
The spring washer goes between the mirror bracket and the door. On the front bolt of each mirror, ensure that the plain washer goes between the bolt head and the mirror bracket.
- Place the mirror into position. Install bolts (x2).
Torque to 20-25 Nm. As the front bolt is tightened ensure a flush install with the door.
The front bolt hole on each mirror has an enlarged hole, to allow a small amount of adjustment.
- Connect the wiring harness plug.
- Install the door mirror ‘cheater’ panel.
- Install the door trim panel (Refer to 'Door Trim', page 1-4-3).
