Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)04 · 03 Engine
04 · Engine

Removal

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Engine Management System › Removal
03 EngineRemoval · page 1 of 2
Repair Operation Time (ROT)Code
Item
PCM RenewLH03.14.AB
RH03.14.BB

Removal

  1. Disconnect the vehicle battery.
  2. Raise the vehicle and make safe.
  3. Remove the road wheel and road wheel arch liner.
  4. Disconnect the wiring harness plugs (x3).

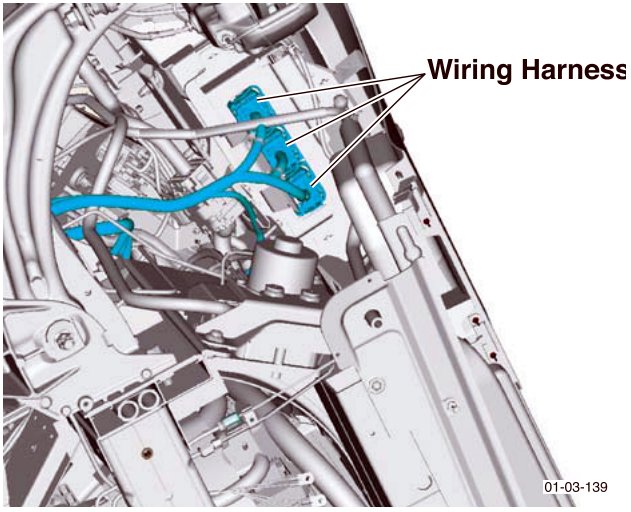

View of wiring harness connectors in the vehicle chassis area
  1. Disconnect the door check rod.
  2. Remove bolts (x3) and withdraw the bracket and the PCM.

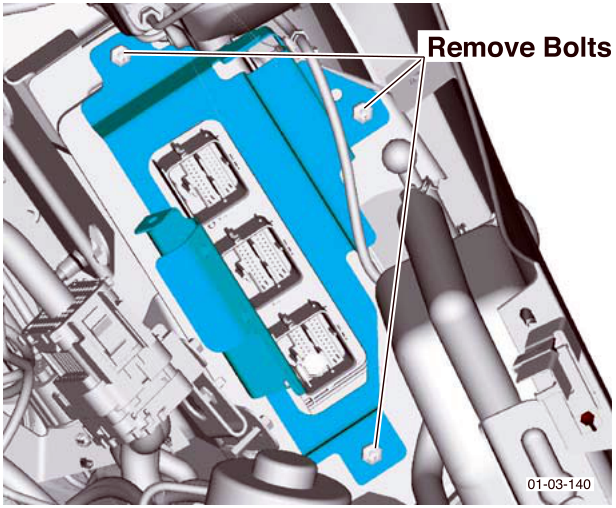

View of PCM mounting bracket with three bolts highlighted for removal

Installation

  1. Install the PCM and the bracket. Torque bolts (x3) to 8-10 Nm.
  2. Connect the wiring harness plugs (x3).
  3. Install the door check rod.
  4. Install the road wheel arch liner.
  5. Install the road wheels (Refer to ‘Road Wheel Nut Torque Tightening’, page 4-5-7).
  6. Connect the vehicle battery.
