06 Brake systemRear Disc Brakes (06.04) · page 1 of 2

Brake system (06.00)

Rear Disc Brakes (06.04)

Description

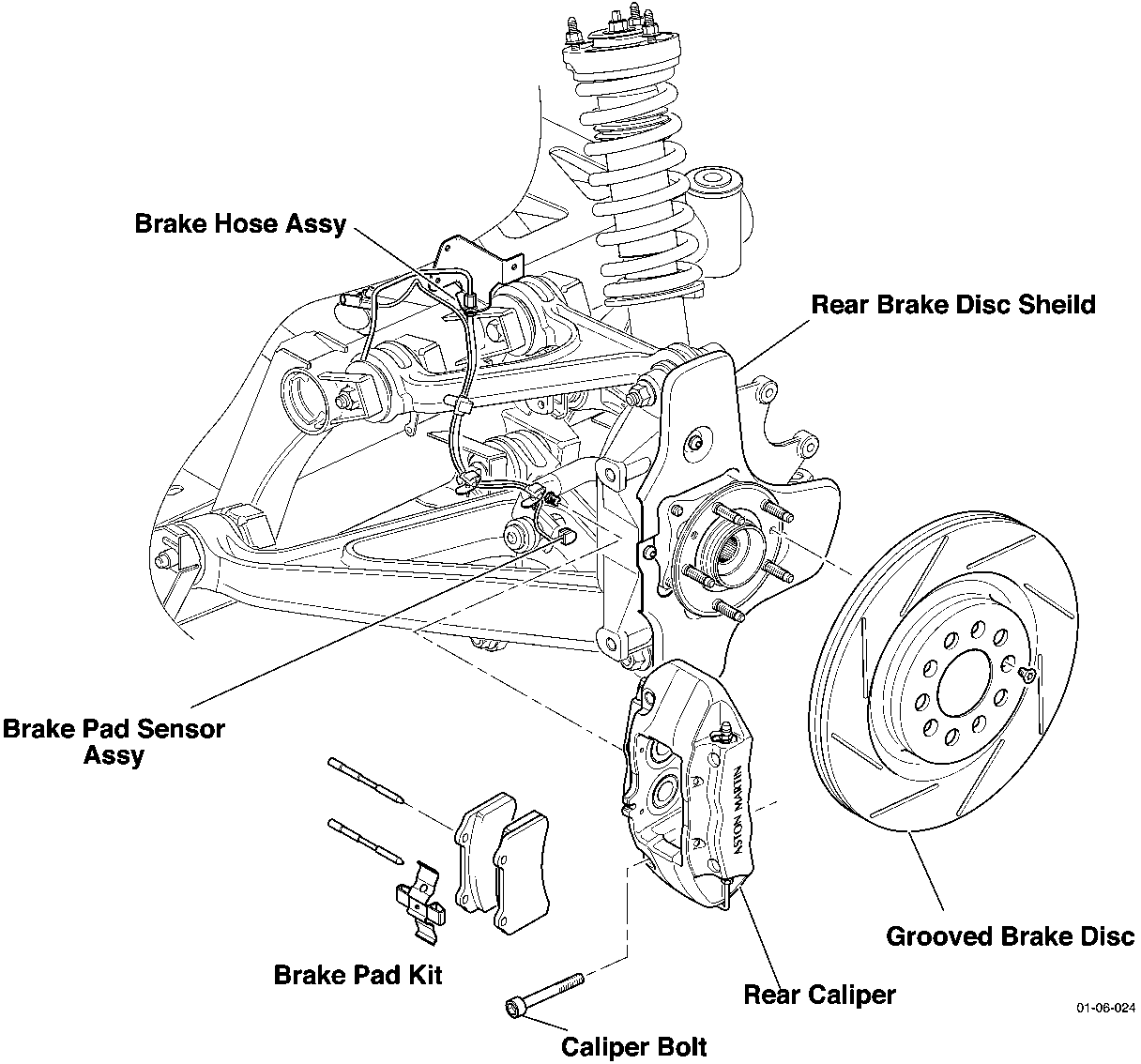

The rear, four piston, brake caliper is bolted directly to the vertical link by two bolts. The caliper is a monobloc assembly. The steel brake discs are ventilated and grooved. They are secured to the hub by two retaining bolts.

Specifications

Oils/Greases
Brake Fluid	Castrol Super Response DOT 4 (Not silicon based brake fluid)

Brake discs
Brake disc initial thickness	28.0 mm
Brake disc Min. thickness	26.0 mm
Brake Disc ‘Runout’	<70 μm measured @ 2 mm in from the brake disc edge.

Brake pads
Minimum lining thickness	2.5

Torque Figures
Description	Nm.	lb. / ft.
Brake hose unions	22	16.5
Service brake Caliper to Vertical Link	20 + 66°-70°	15 + 66°-70°
Handbrake Caliper to Vertical Link	15 + 90°-94°	11.5 + 90°-94°
