07 TransmissionTransmission Plug Pin Assignment

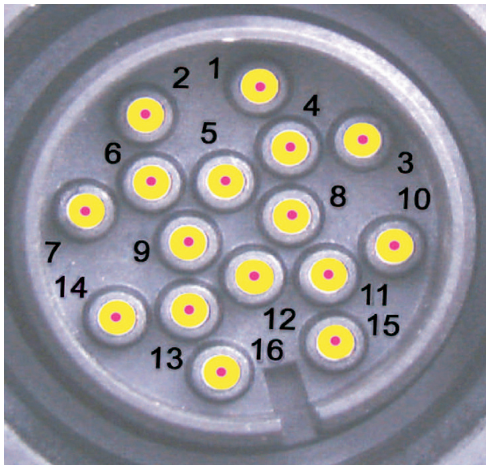

Transmission Plug Pin Assignment

Pin	Assigned to	Notes
1	Series line	Serial Backup Line EMS
2	CAN L	CAN low
3	ISO K	K line (for example application)
4	Not in use	Digital input
5	Not in use	Digital input
6	CAN H	CAN high
7	S4	Heartbeat Supply
8	Not in use	optional input
9	Terminal 15	Wake-up signal, terminal 15 VIGN
10	P signal	P line for starter inhibit
11	S4	Heartbeat
12	not in use
13	Terminal 31-1	Earth (ground)
14	Terminal 30	Permanent positive (EGS supply voltage)
15	Not in use
16	Terminal 31-2	Earth (ground) 2
