Exhaust (09.00)

Exhaust (09.00)

Silencer Assembly (09.01)

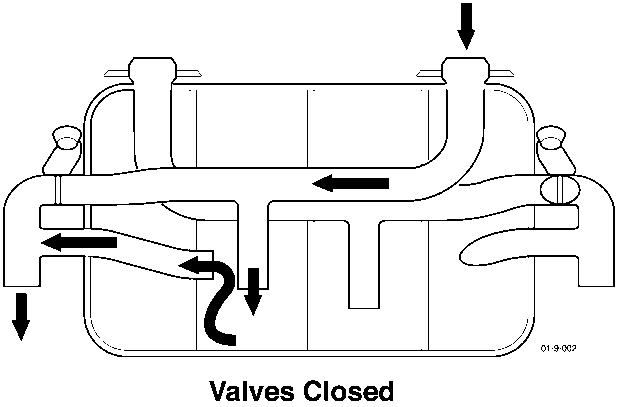

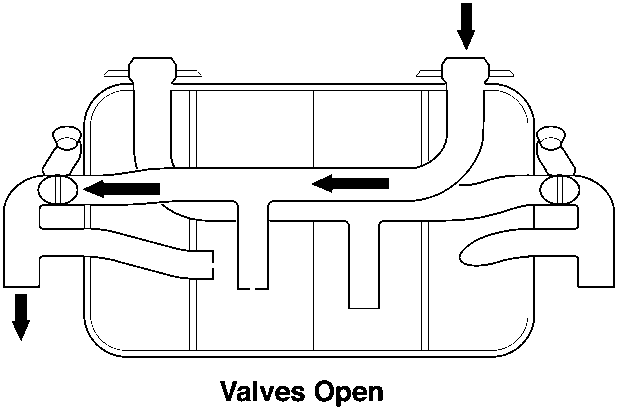

Variable Flow Silencer Assembly

The rear silencer assembly has a variable flow path controlled by two bypass valves.

The system is intended to enhance top end performance in motor sport applications and will not operate in most normal driving conditions.

By directing exhaust gasses through a modified path at high vehicle speeds, exhaust back pressure is reduced and top end performance is enhanced.

As engine speed increase from idle, the bypass valve is open until the engine speed is 1500 rpm.

From 1500 rpm to 3000 rpm, the valve is closed

Above 3000 rpm the bypass valves state is load dependent (fully open at higher loads).
