Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)18 · 17 Lighting
18 · Electrical

Removal

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Lighting Mechanisms › Removal
17 LightingRemoval
Repair Operation Time (ROT)
ItemCode
Rear Level Sensor Renew17.04.CB

Removal

  1. Disconnect the vehicle ride height sensor from the upper suspension arm.

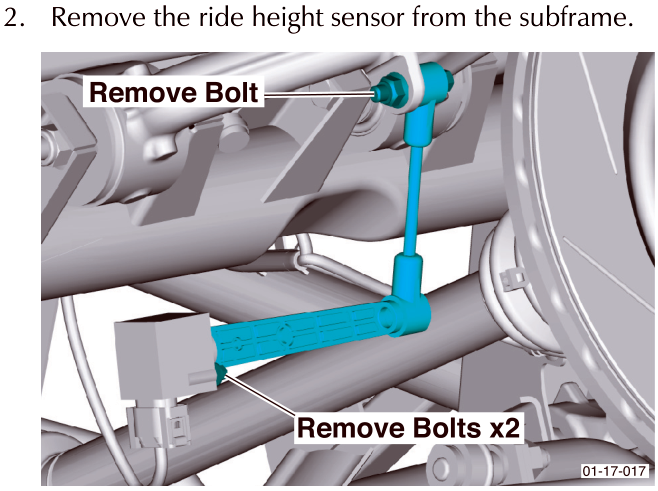

Diagram showing removal of the ride height sensor, with callouts 'Remove Bolt' and 'Remove Bolts x2'

Installation

  1. Install the vehicle ride height sensor (LH side).

Torque to:

  • (M5 (subframe)) 5-6 Nm.
  • (M8 (upper arm)) 22.5 Nm.

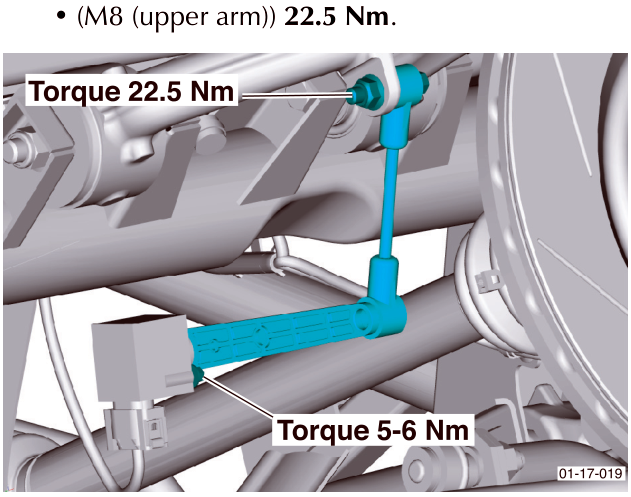

Diagram showing installation torque locations, with callouts 'Torque 22.5 Nm' and 'Torque 5-6 Nm'
